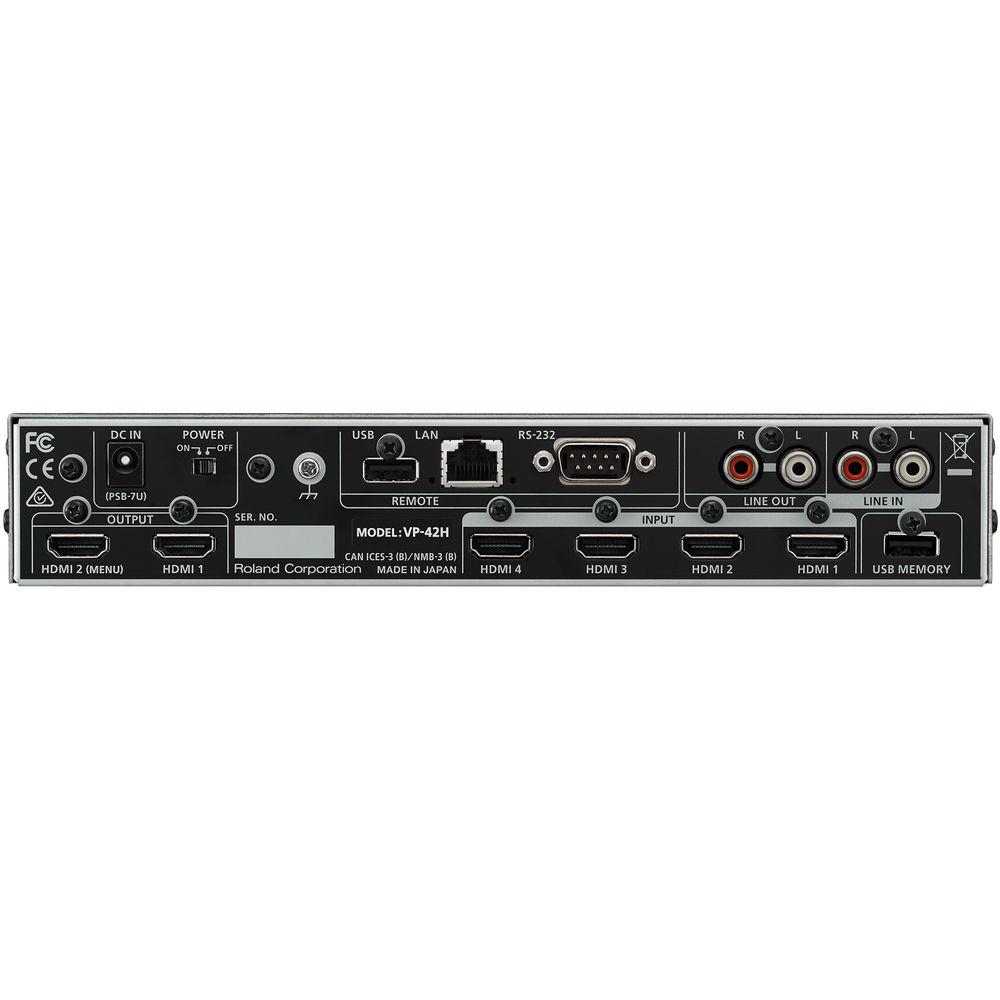

User Manual for Roland VP-42H Video Processor 4 x 1 HDMI Click to enlarge the picture
Contents of the user manual for the Roland VP-42H Video Processor 4 x
- Product category: Video & Audio Processing Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Video & Audio Processing
 |
User manual for the Roland VP-42H Video Processor 4 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

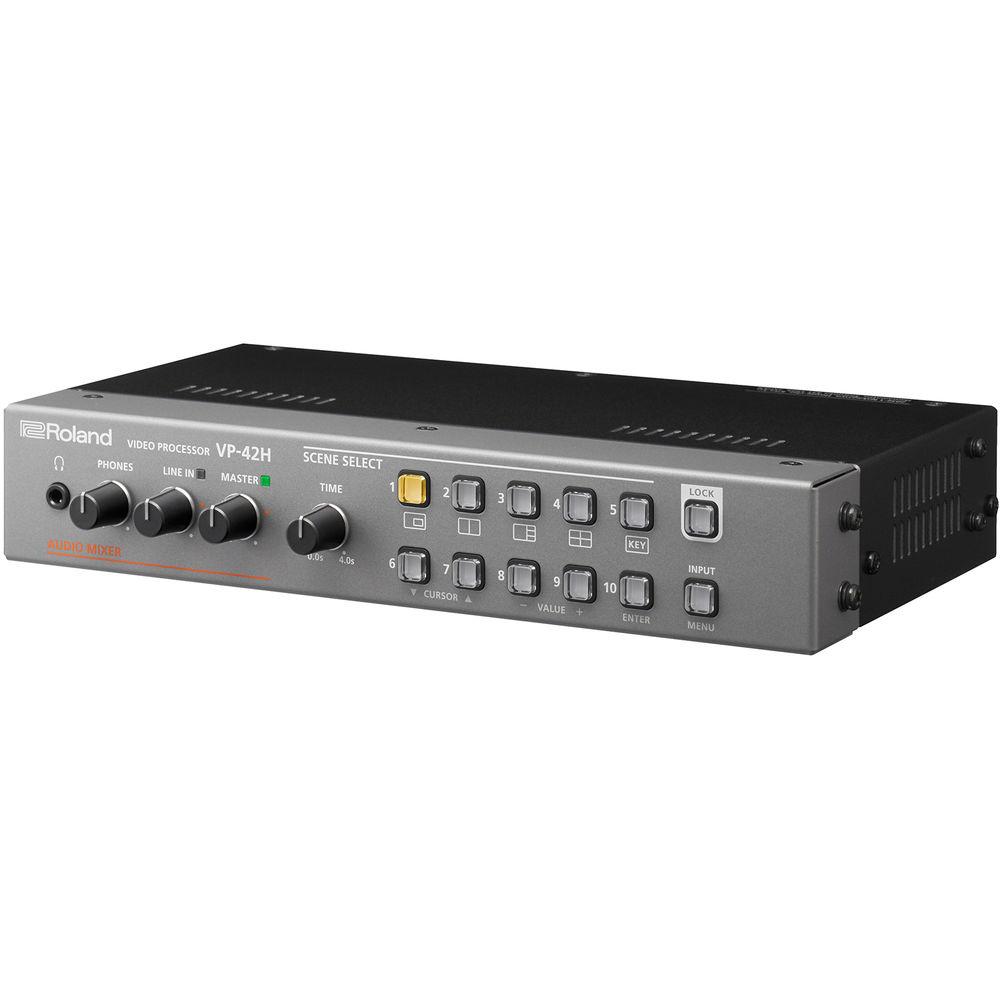

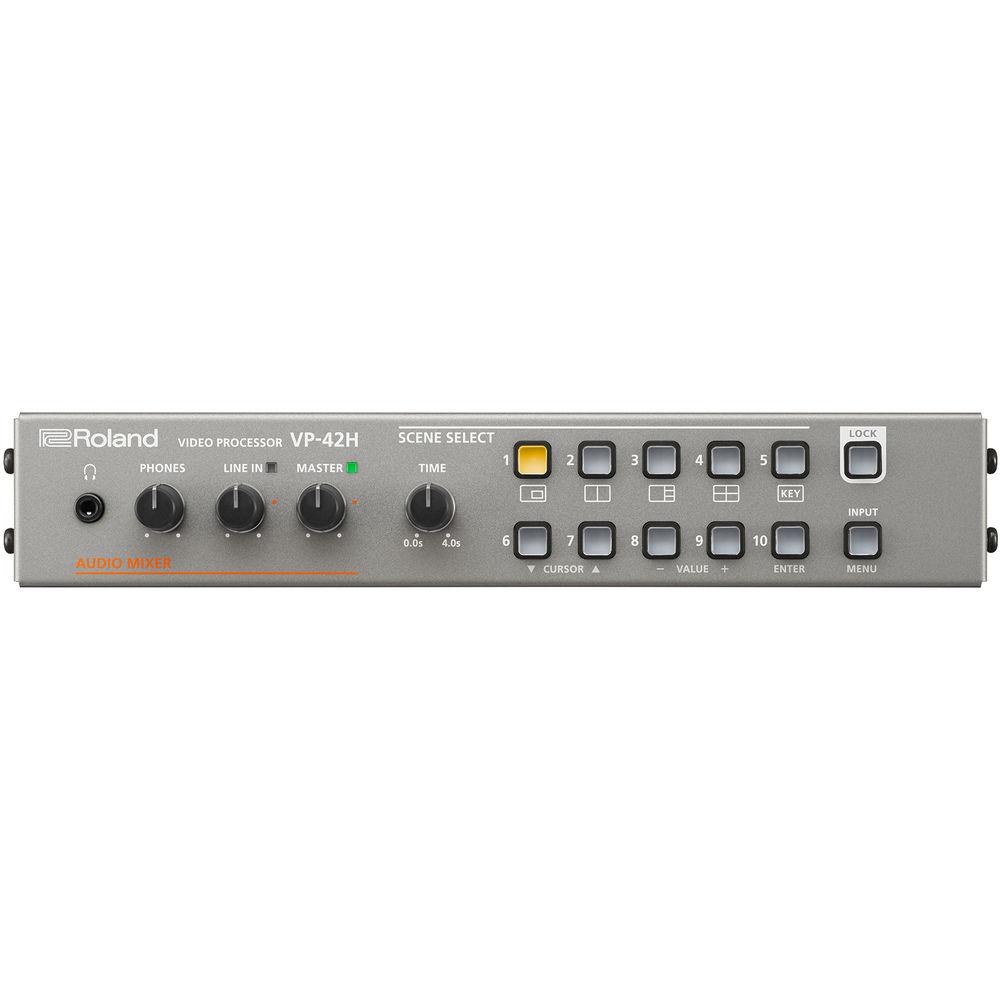

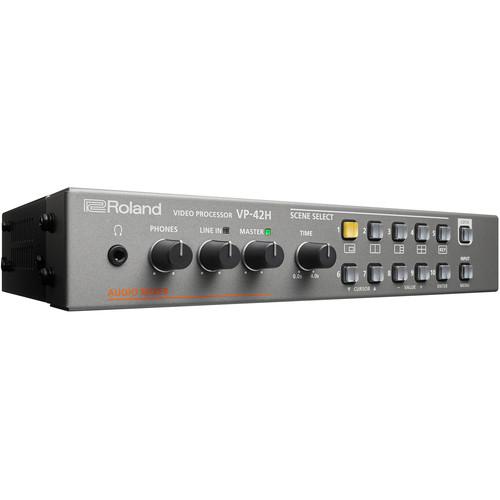

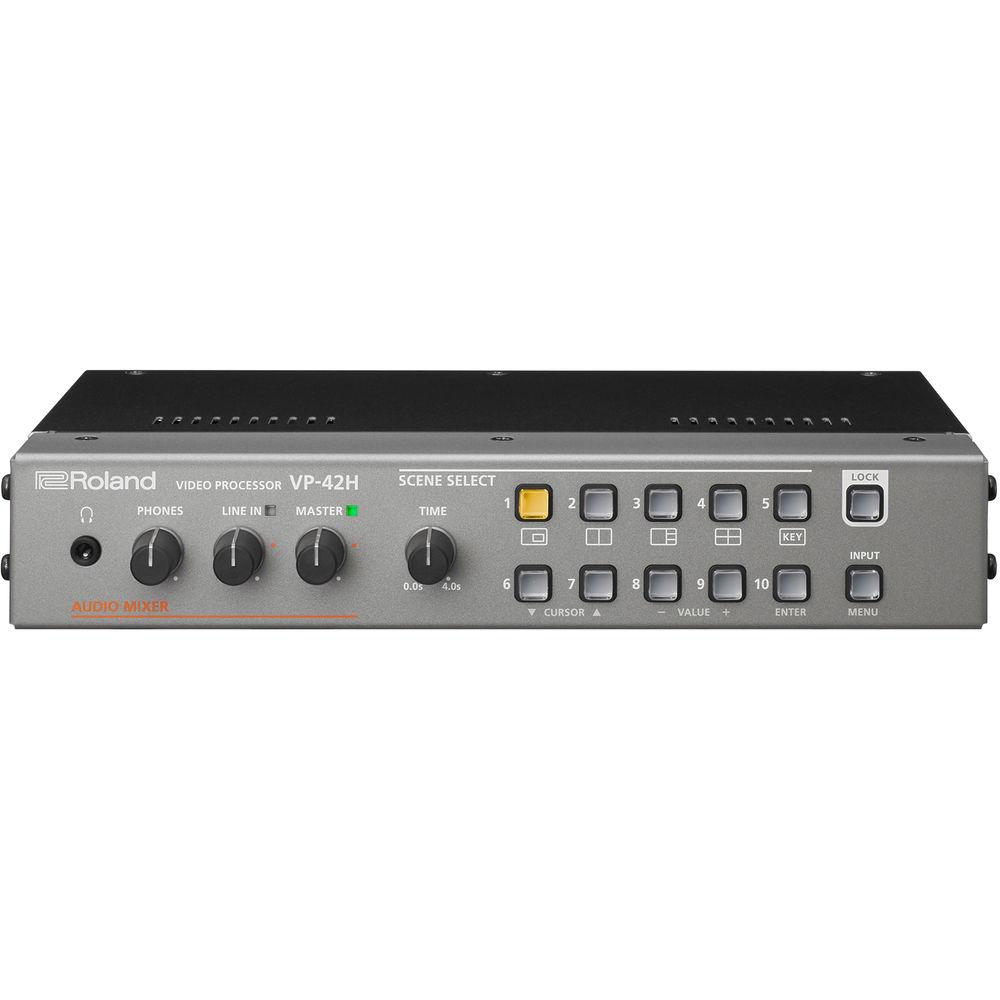

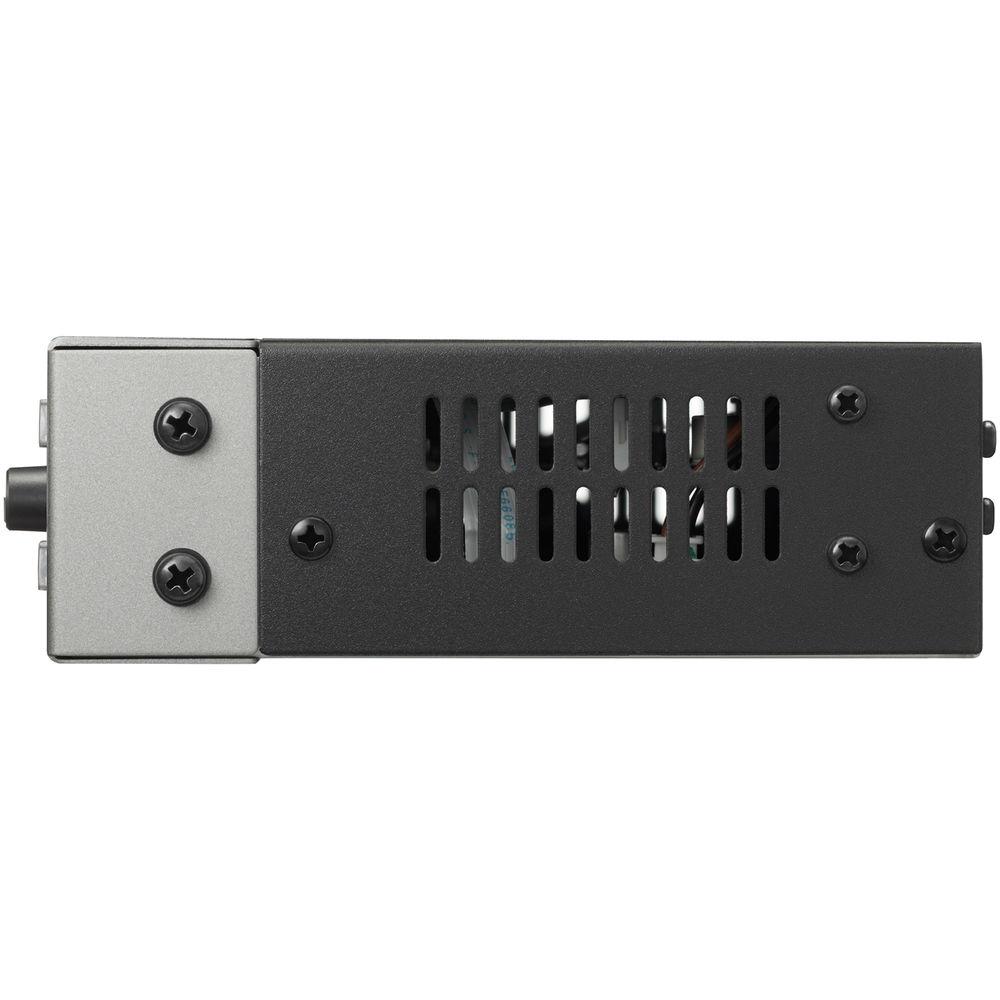

Product description The VP-42H Video Processor 4 x 1 HDMI from Roland layers and arranges up to four HDMI sources to a single output. Suitable for multi-viewing, presentations, digital signage, and conferences, the VP-42H enables you to switch between preset, layered arrangements of your sources with the push of a button. Use the VP-42H's fluid, motion-based switching to create eye-catching visuals with each upcoming scene automatically positioned and resized in a customizable window. This processor supports multiple video resolutions up to 1080p60, includes a keyer, and accepts still image and logo input via a USB port. Layering features include three PiP functions plus one PiP with a keyer. Use the VP-42H's web-based browser to scale, crop, zoom, and position input sources by clicking and dragging on your tablet or laptop. Audio features include an internal mixer, RCA outputs for de-embedding audio from your HDMI sources, and RCA inputs for embedding external audio into your HDMI output. - Features
-
- Combine up to four HDMI video sources to a single output
- Supports multiple video resolutions up to 1080p60
- Connect and switch multiple resolutions simultaneously
- Motion Scene Switching creates fluid transitions between complex screen compositions
- Browser-based network control for remote switching and simple set-up
- Internal audio mixer, RCA inputs/outputs for embedding and de-embedding audio
- Keyer function enables overlays and advanced compositions
- Input still photos and logos via USB

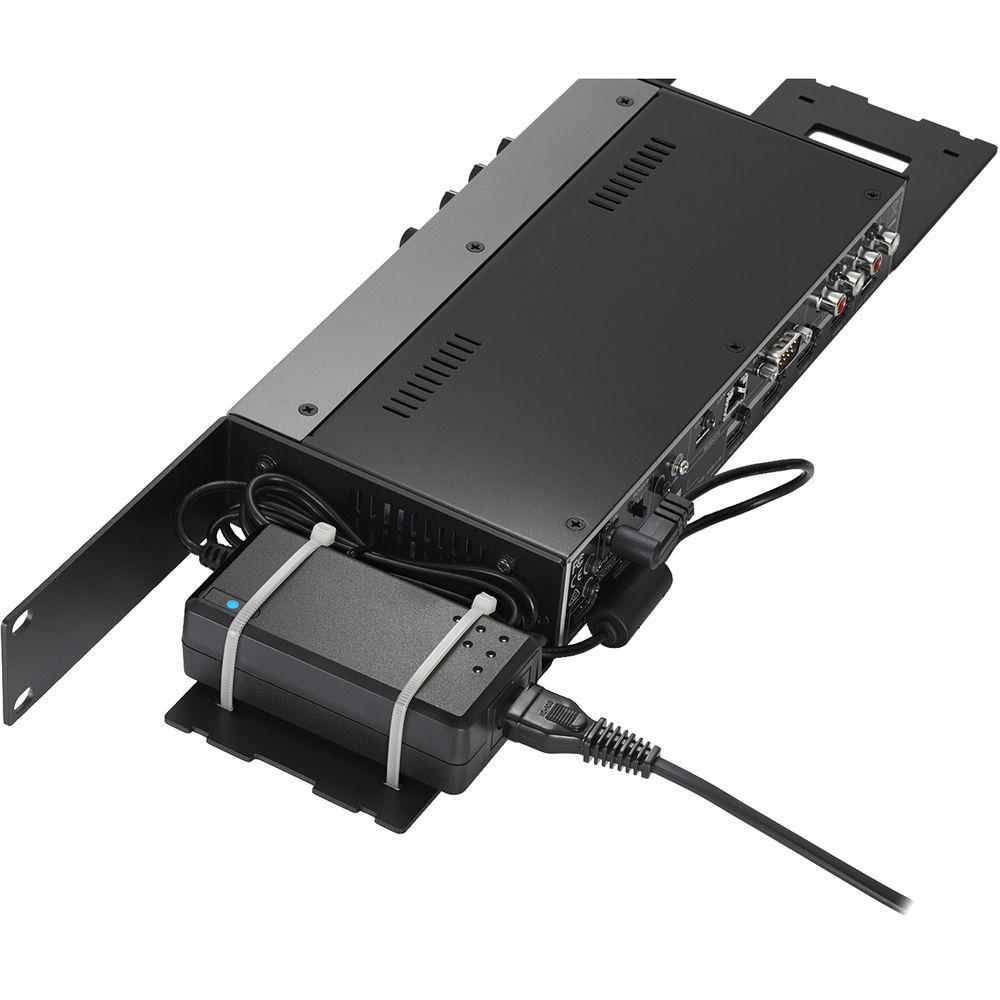

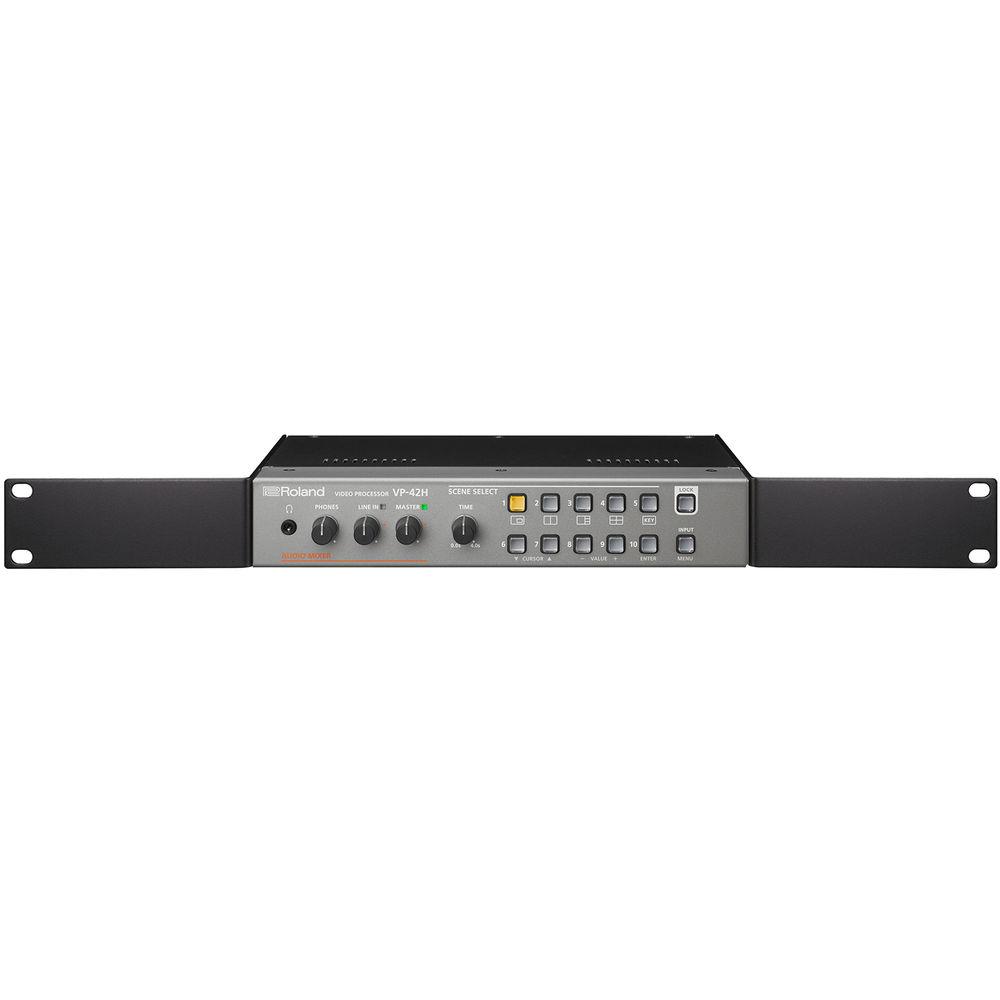

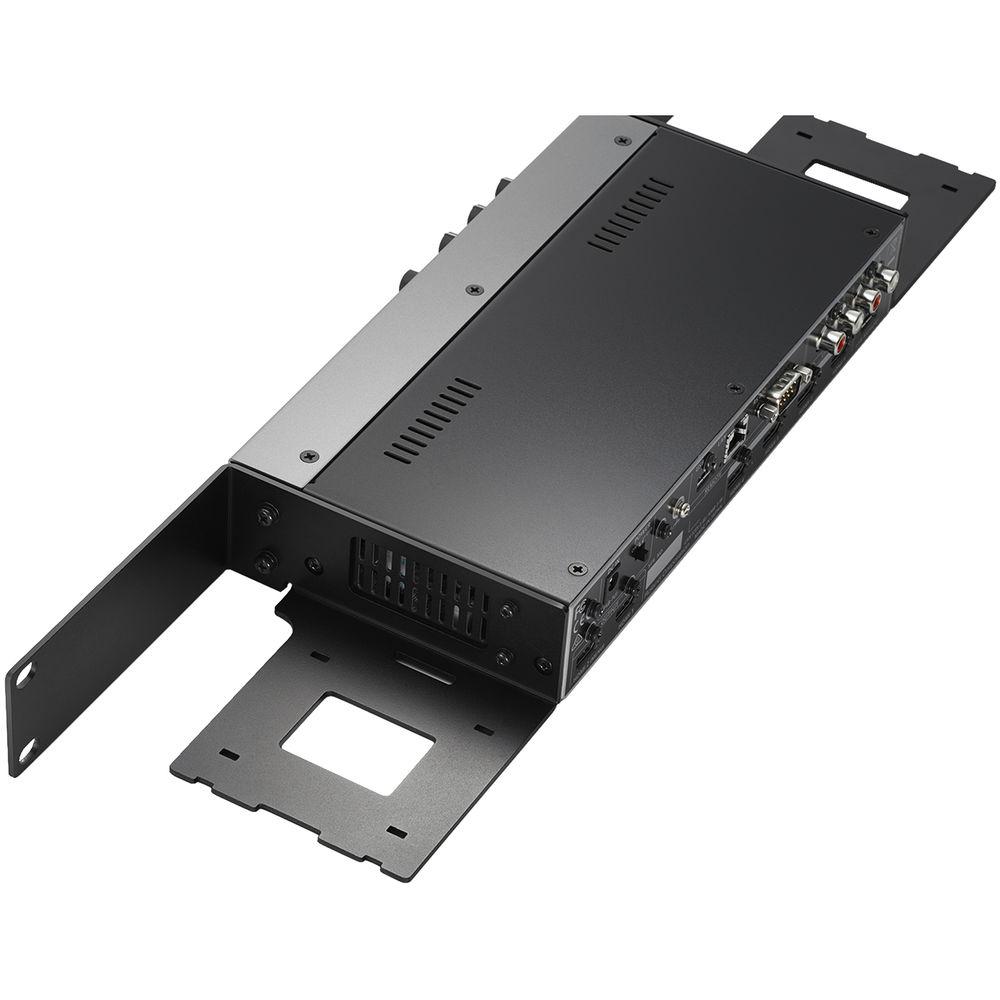

UPC: 761294513323 In the Box Roland VP-42H Video Processor 4 x 1 HDMI AC Adapter Power Cord 4 x Rubber Feet Rackmount Angle Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland VP-42H Video Processor 4 x 1 HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland VP-42H Specs | | | Processing | 4:4:4 (Y/Pb/Pr, RGB), 10-Bit
4:2:2 (Y/Pb/Pr), 10-Bit | | Input Connectors | 4 x HDMI Type A | | Output Connectors | 1 x HDMI Type A (Program)
1 x HDMI Type A (Menu) | | HDCP Compliant | Yes | | Supported Formats & Resolutions | 1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
576p: 50*
576i: 50*
480p: 59.94*
480i: 59.94*
1920 x 1200/60 RB, 1920 x 1080/60
1600 x 1200/60
1400 x 1050/60**
1366 x 768/60**
1280 x 1024/60**, 1280 x 800/60**, 1280 x 720/60**
1024 x 768/60**
800 x 600/60* * Input Only.
**Output Refresh Rate is 75 Hz when Frame Rate is Set to 50 Hz. | | Effects | Layers: x 4
PiP with Keyer: x 1
PiP: x 3 | | Still Image Support | Internal Memory: x 1
Maximum Size: 1920 x 1200 Pixels
Format: Windows Bitmap File (.bmp), 24 bpp, Uncompressed | | | | Sample Rate | 48 kHz, 24-Bit | | Input Connectors | 4 x HDMI Type A
1 x RCA Stereo | | Output Connectors | 2 x HDMI Type A*
1 x RCA Stereo
1 x 1/8" / 3.5 mm Headphone Stereo * Output 2 is the Same as Output 1. | | Input Level | -10 dBu (Maximum: +8 dBu) | | Input Impedance | 15 kOhms | | Output Level | Audio Output: -10 dBu (Maximum: +8 dBu)
Headphone Output: 72 mW + 72 mW (32 Ohms) | | Output Impedance | Audio Output: 1 kOhm
Headphone Output: 10 Ohms | | Format | HDMI: Linear PCM, 24-Bit, 48 kHz, 2-Ch | | Processing | Mixer: 4-Ch (Maximum Delay: 250 ms) | | | | External Connectors | Remote:
1 x RS-232, DB-9 (Male)
LAN: 1 x RJ45
USB: 1 x USB Type-A (Future Expansion)
USB Memory:
1 x USB Type-A | | Functions | Scene Memory: x 10
Test Pattern Generator
Test Tone Generator
EDID Emulator | | Power Supply | AC Adapter | | Current Draw | 2.1 A | | Power Consumption | 25 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (WxDxH) | 9.5 x 4.9 x 1.7" / 242 x 125 x 44 mm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 14.0 x 10.25 x 6.25" |
