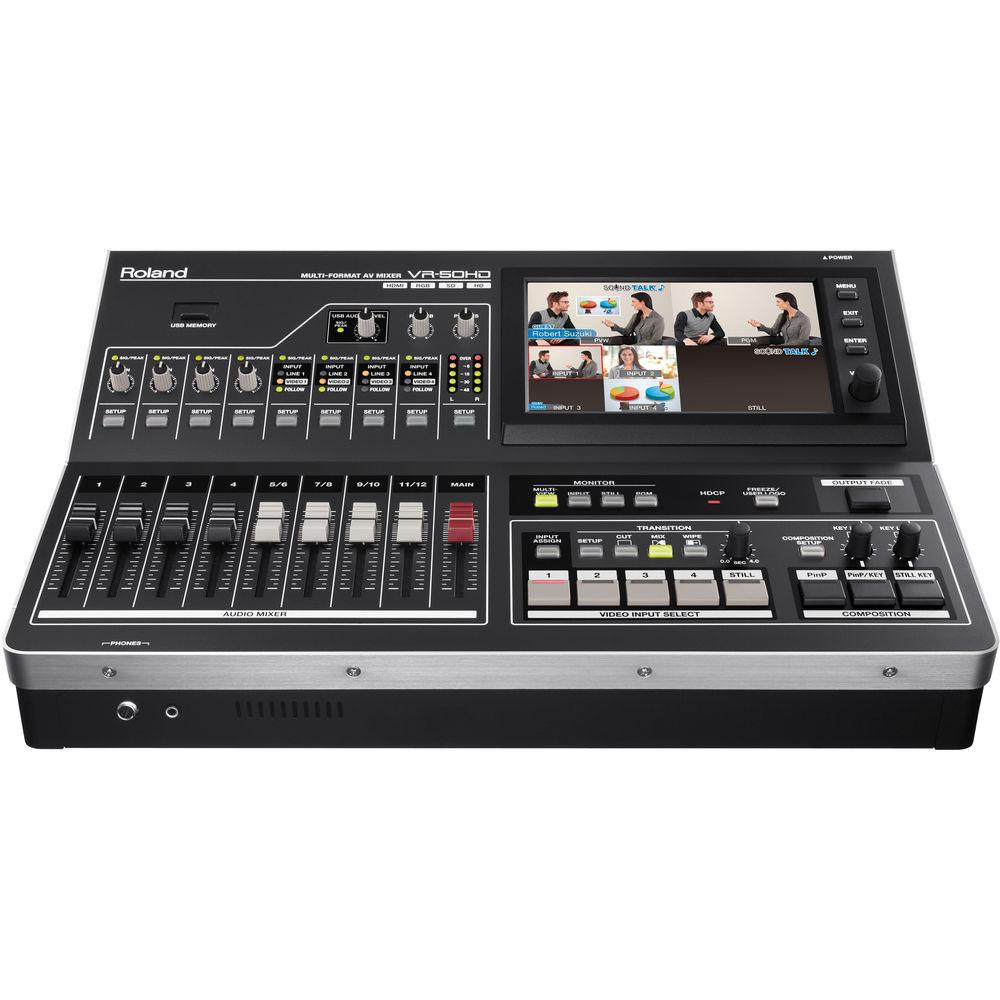

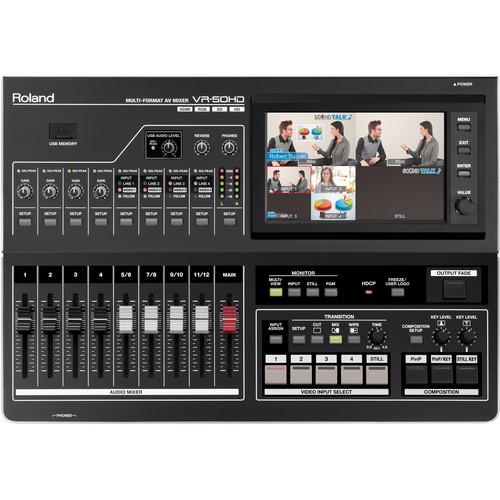

Product description The Roland VR-50HD Multi-Format AV Mixer integrates an audio mixer, video switcher, multi-viewer touch screen and USB video/audio streaming into a stand-alone device. This portable live HD production solution combines the functions of a video switcher and an audio mixer, and it is ideal for use at live events, schools, churches, council meetings, and corporate events. The VR-50HD features four video input channels, which are fed by 12 inputs, and supports SD, HD, and computer-based signals. The mixer supports either NTSC or PAL standards, with selectable frame rates, and will scale input video to match the selected output resolution.

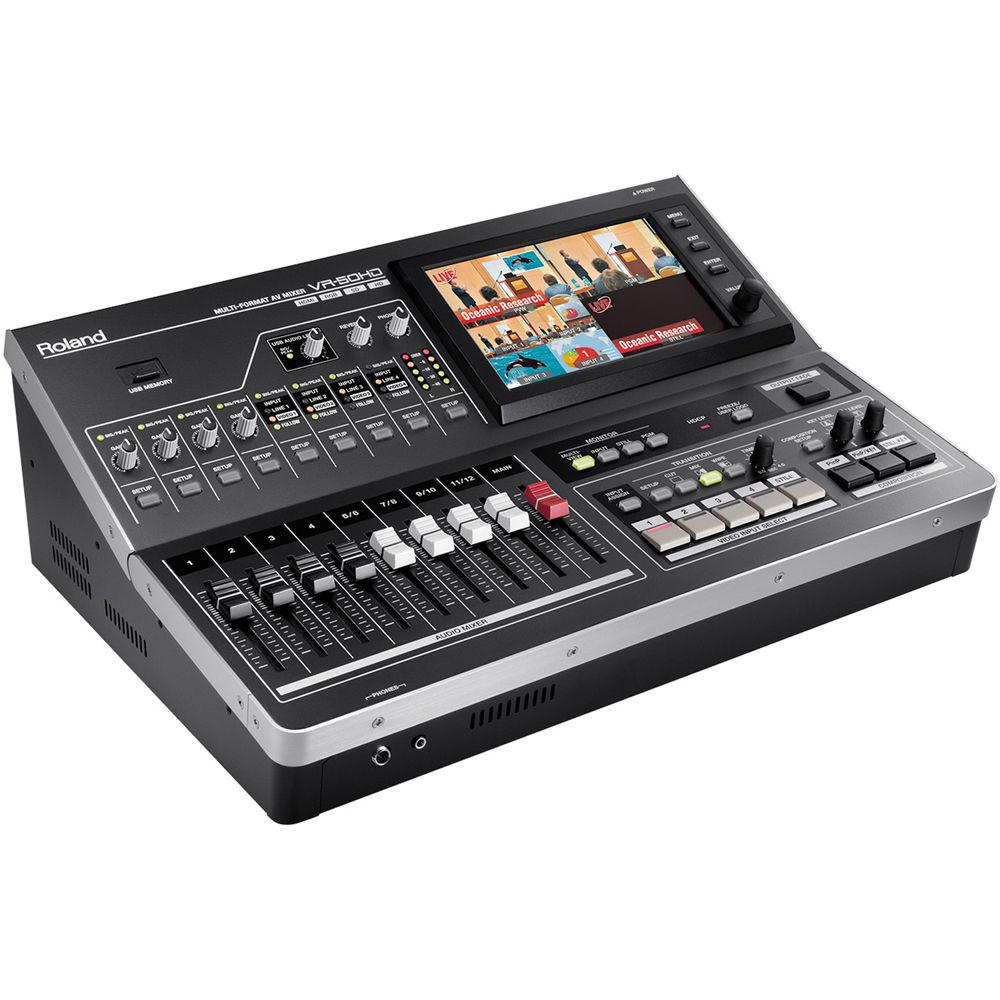

The VR-50HD features four SDI inputs that support SD/HD/3G-SDI signals, two RGB/Component video inputs, two composite video and four HDMI inputs, as well as 12 analog audio input channels. Built into the front of the mixer is a 7" LCD touch-screen multi-view display that shows the four input sources as well as displays a red border on the active input source. You can set up and control the unit through the touch screen interface. The unit has a designated HDMI output that will send the multi-view display to an available HDMI monitor. The PGM output is available through SDI/HDMI/ and RGB/Component streams. It is also available via the USB output, which you can bring into an available computer or encoder to stream live. The VR-50 features two built-in full-resolution picture-in-picture channels, and you can layer the four inputs to make one composite in addition to the picture-in-picture channels. - 12-Input, 4-Channel Multi-format Video Switcher
- With four HDMI, four SD/HD/3G-SDI, two RGB/COMPONENT, and two composite inputs, the VR-50HD provides you with 12 inputs for the four video channels. All inputs are active all the time, so you can connect up to twelve input sources at one time, although the mixer only switches video from four sources at one time. The wide variety of input connectors allow you to connect professional HD cameras, computers and Blu-ray and DVD players, as well as video cameras using composite output.
If four inputs aren't enough, you can also assign an input to each of the picture-in-picture channels. This allows you four input sources plus two more full frame sources that you can transition to, for a total of six input sources. - Mix and Match Resolution
- The unit features multi-format specifications that allow you to mix sources with different resolutions. Please note that the frame rate/Hz must be the same between the multiple sources, so, for example, you couldn't switch between a PAL source and an NTSC source. The frame rate is selected in the system menu, and your input sources must match that frame rate. As long as your input sources match the selected frame rate, the unit will scale the input signals to match the selected output.
- Scaling
-
- Each input features an individual scaler that scales the resolution to the output format. You cannot mix different frame rates or standards.
- The VR-50HD also allows you to scale the finished output via a menu setting.
- Transition Effects
- Select from cuts, dissolves and wipes. You can set the time for each transition between 0 and 4 seconds.
- Composite
- The Composition buttons let you instantly create picture-in-picture effects, title compositions using chroma or luminance keying, and even composite from a still picture imported into the internal memory of the unit.
- Still Frames
- The unit can store up to four .bmp images in its internal memory.
- HDCP
- The VR-50HD is HDCP compliant, and you can set it to output HDCP compliant video. However, with HDCP activated, the unit will only output through HDMI (picture and audio), as the SDI, RGB/Component and USB outputs are deactivated.
- Built-In Preview Monitor

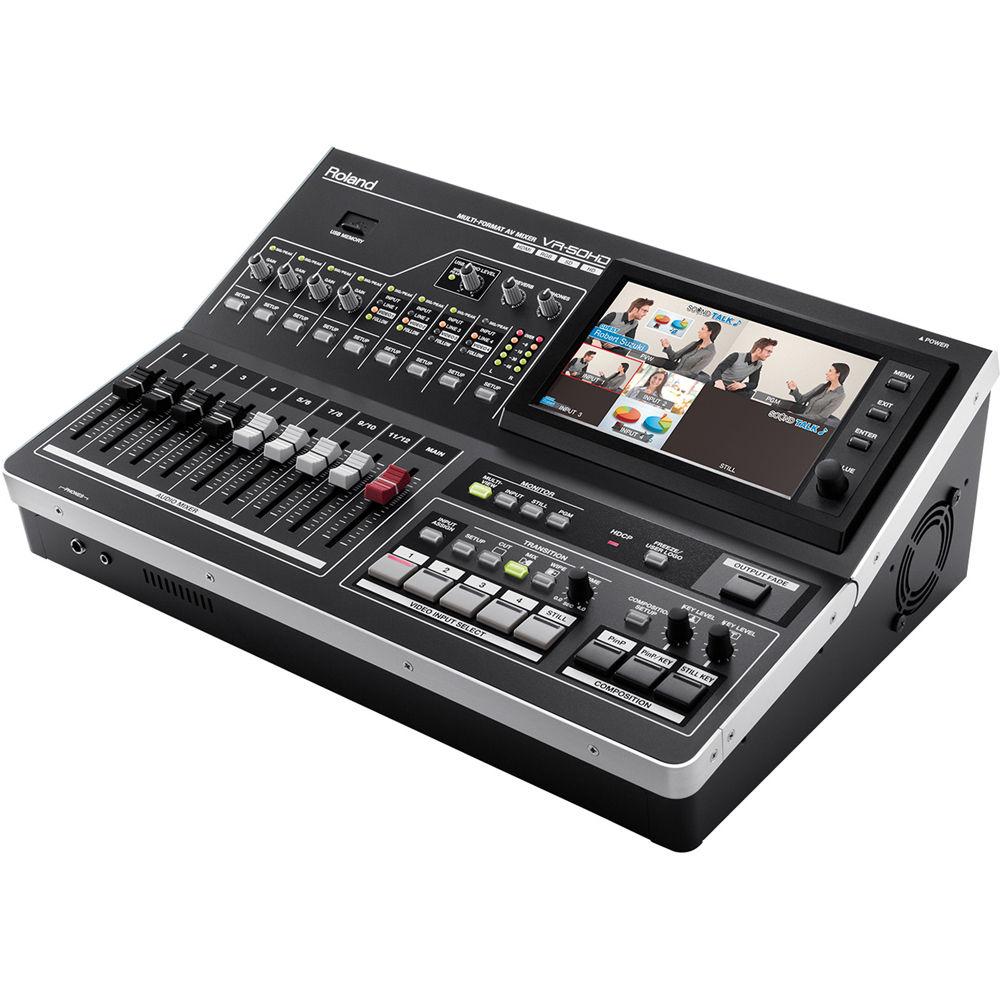

- The VR-50HD is equipped with a large 7-inch touch-screen LCD screen that features a seven-way multi-viewer that can display four input pictures, composited material, and program out simultaneously, thus eliminating the need for external monitors. You can also switch to quad multi-view. Advanced settings for picture and sound can also be made using the touch-screen, so you can get started right away without having to read the manual.
- Audio Mixing
-
- The 12-channel digital audio mixer features twelve inputs that support audio from four microphones, computers, and DVD players. The VR-50HD supports capturing and mixing 3G/HD/SD-SDI/HDMI embedded audio. Built-in delay and equalizer features make possible a broad range of use, from seminars to musical events.
- Using faders 5 through 12, you can switch between line, HDMI and SDI at any time. Using the "Audio Follow" feature, you can make the audio switch automatically to the active video source.
- Pressing the Setup button above a fader displays advanced settings for parametric equalizer, audio delay, reverb and more. The "touch & turn" feature makes parameters easy to change by touching the corresponding knob on the display and turning the physical knob to set the value.
- An audio delay adjustment menu allows you to adjust the audio timing to maintain sync with the picture.
- Remote Control
- The VR-50HD supports remote control via the RS-232 port using an optional RS-232C device, or an optional Visual MIDI device via its MIDI connector.
- USB Output
- The USB 2.0/3.0 output enables web streaming connecting to a computer running a live streaming service. Recording is equally simple by using QuickTime or the dedicated Windows/Mac capture software, the Video Capture for VR. The USB port supports video formats up to 1080/59.94p through USB3.0 and up to 720/29.97p through USB2.0. The resolution and frame rate of video format and audio level and delay can be changed thanks to the dedicated scaler and the dedicated volume and delay for the USB output.
- Video Capture
- The Video Capture for VR is application software that captures video and audio signals output from the VR-50HD USB port and saves them to movie files on your connected Windows/Mac. The software is available for download from the Roland website.
UPC: 761294502792 In the Box Roland VR-50HD Multi-Format AV Mixer Roland PSB-14U AC Cable Limited 1-Year Warranty User Manual PDF 31mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland VR-50HD Multi-Format AV Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland VR-50HD Specs | | | Processing | 4:4:4 (RGB) 10-bit
4:2:2 (Y/Pb/Pr) 10-bit | | Formats | SDI
NTSC
PAL
720p 50/59.94p
1080i 50/59.94
1080p 50,/59.94
HDMI
NTSC
PAL
480p 59.94
576p 50
720p 50/59.94
1080i 50/59.94
1080p 50/59.94
1024 x 768 50/60 Hz
1280 x 720 50/60 Hz
1280 x 800 50/60 Hz
1280 x 1024 50/60 Hz
1400 x 1050 60 Hz
1920x1080 60 Hz
HDMI MULTI-VIEW Output
1080p 59.94
Component
NTSC
PAL
480p 59.94
576p 50
720p 50/59.94
1080i 50/59.94
1080p 50/59.94
RGB
1024 x 768 60 Hz
1280 x 720 60 Hz
1280 x 800 60 Hz
1280 x 1024 60 Hz
1400 x 1050 60 Hz
1920 x 1080 60 Hz
Composite
NTSC
PAL
USB Video
480p 29.97/59.94
576p 25/50
720p 25/29.97/50/59.94
1080p 25/29.97/50/59.94
Still Image
.bmp
Maximum 1920 x 1080 pixels, 24-bit per pixel, uncompressed. | | Input / Output Connectors | Input
Digital

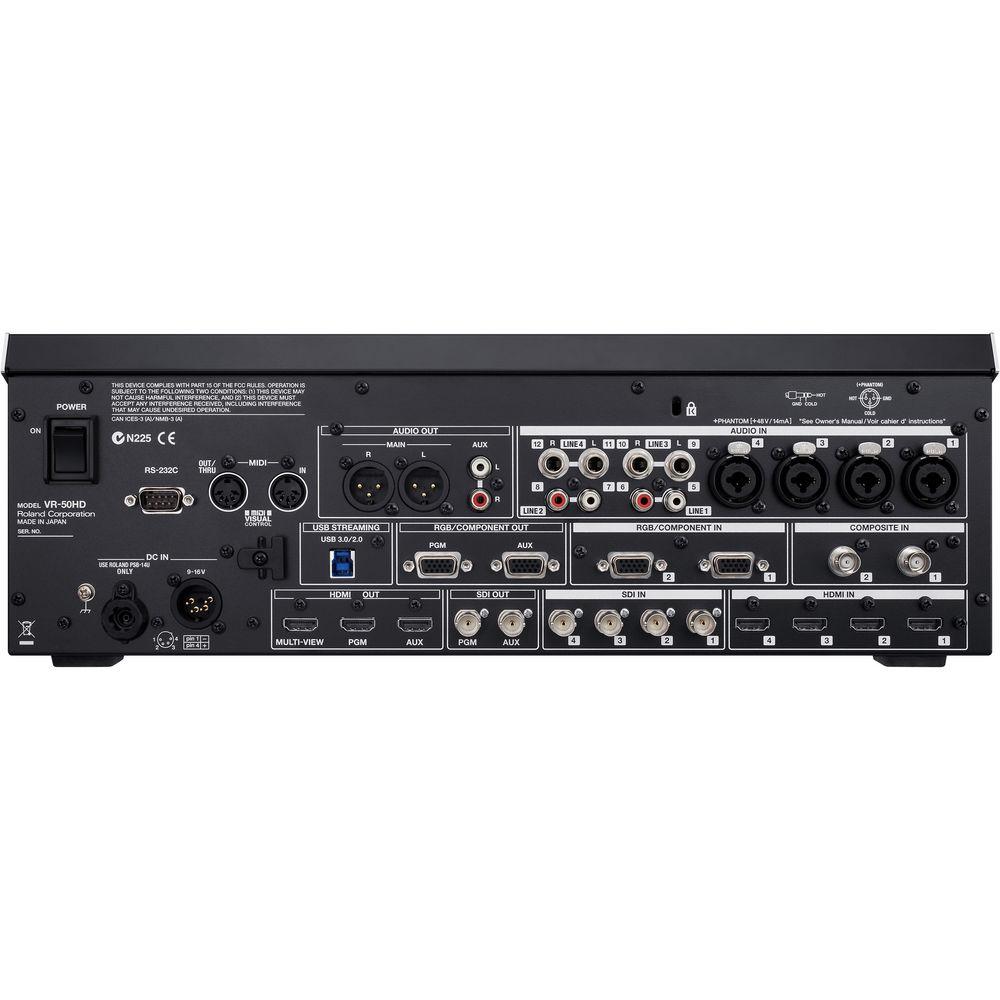

3G/HD/SD-SDI: 4 x BNC
Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C)
HDMI (DVI-D): 4 x Type A (19-pin)
HDCP Supported.
Analog
RGB/HD-Component: 2 x Mini D-sub 15-pin
Composite (SD): 2 x BNC
Output
Digital
3G/HD/SD-SDI: 2 x BNC (PGM OUT, AUX OUT) Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C
HDMI (DVI-D): 3 x Type A (19-pin) (PGM OUT, AUX OUT, MULTI VIEW)
HDCP Supported
Analog
RGB/HD-Component: 2 x Mini D-sub 15-pin (PGM OUT, AUX OUT) | | Level & Impedance | Composite: 1.0 Vp-p 75Ω
Analog RGB: 0.7 Vp-p 75Ω (H, V: 5 VTTL)
Analog HD: 1.0 Vp-p 75Ω (Sync-Signal: Bi-Level/Tri-Level) | | | | Processing | Sampling Rate: 24-bit/48 kHz | | Formats | SDI: Linear PCM, 24bit, 48 kHz, 2ch
SMPTE 299M, SMPTE 272M-C
HDMI: Linear PCM, 24bit, 48 kHz, 2ch
USB-AUDIO: Linear PCM, 16bit, 48 kHz, 2ch | | Input / Output Connectors | Analog Input
Inputs 1 to 4: 4 x XLR/TRS combo (1 GND, 2 HOT, 3 COLD)
Power: DC Phantom 48 V (unloaded maximum), 5 mA (maximum load) (current value per channel)
Inputs 5 to 8: 4 x RCA jacks
Inputs 9 to 12: 4 x 1/4" TRS jacks
Analog Output
2 x XLR (3-pin)
XLR type: 1 GND, 2 HOT, 3 COLD
2 x RCA jacks
Headphone
1 x 1/4" Stereo TRS jack
1 x Stereo mini jack | | Level & Impedance | Input
XLR/TRS: -68 to +4 dBu (Maximum: +22 dBu, 4kΩ)
RCA phono: -10 dBu (Maximum: +8 dBu, 11kΩ)
TRS: +4 dBu (Maximum: +22 dBu, 98kΩ)
Output
XLR: +22 dBu (Maximum: +22 dBu, 600Ω)
RCA phono: -10 dBu (Maximum: +8 dBu, 1Ω)
Headphones: 25 mW + 25 mW, 20Ω | | | | Video | Transition: Mix, Cut, Wipe (9 patterns)
Composition: PnP, Chrominance Key, Luminance Key
Others: Output Fade, Output Freeze, User Logo | | Audio | Channel Effects: Compressor, Noise Gate, 3-Band EQ, Delay
Master Effects: Mastering, 3-Band EQ, Reverb | | | | Operating System Requirements | Mac
OSX: 10.7 or 10.8
RAM
Min: 4GB
Drive Space
Min: 20GB
Windows
Windows Vista 32/64-bit SP2 or later
Windows 7 32/64-bit SP 1 or later
Windows 8 32/64-bit
Processor
Intel Core2Duo 2.8 GHz or faster
Intel Core i series 3.3 GHz or faster recommended
RAM
Min: 2GB
Recommended: 3GB
VRAM
Min: 512MB
Recommended: 1GB
Direct X 10 Support
Drive Space
Min: 20GB
Screen Resolution
Min: 1024 x 768 | | | | Connectors | Remote
Remote MIDI: 5 pin DIN type (IN, OUT/THRU)
RS-232C: D-sub 9 pin type x 1
USB
USB2.0 port (host): Hi-Speed USB: Type A (for USB memory)
USB3.0 port (device): Type B for USB-VIDEO (Super-Speed/Hi-Speed), USB-AUDIO (Full-Speed):
Uncompressed Video 4:2:2 (Y/Pb/Pr), 8-bit
Bit-rate: max 2Gbit/s (1080/59.94p only active pixels)
UVC (USB Video Class) supported uncompressed Video
Power
Primary: Use only Roland PSB-14U
Secondary: 1 x 4-pin XLR male (1 NEG, 4 POS) 9 to 16VDC | | Display | 1 x 7" Graphic color LCD 800 x 480 dots (touch-screen) | | Power Supply | Primary: AC adaptor DC 24V
Secondary: AC adaptor DC 9 to 16V | | Current Draw | 2.5 A (DC 24V) | | Operating Temperature | 32 to 104&def;F (0 to 40°C) | | Dimensions (W x D x H) | 17.13 x 12.1 x 5.9" (434 x 306 x 149 mm) | | Weight | 11.7 lb (5.3 kg) | | | | Package Weight | 17.35 lb | | Box Dimensions (LxWxH) | 21.0 x 11.3 x 9.7" |
