User Manual for Roland XS-42H Matrix Switcher 4 x 2 HDMI Click to enlarge the picture
Contents of the user manual for the Roland XS-42H Matrix Switcher 4 x
- Product category: Routers & Switchers Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Routers & Switchers
 |
User manual for the Roland XS-42H Matrix Switcher 4 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

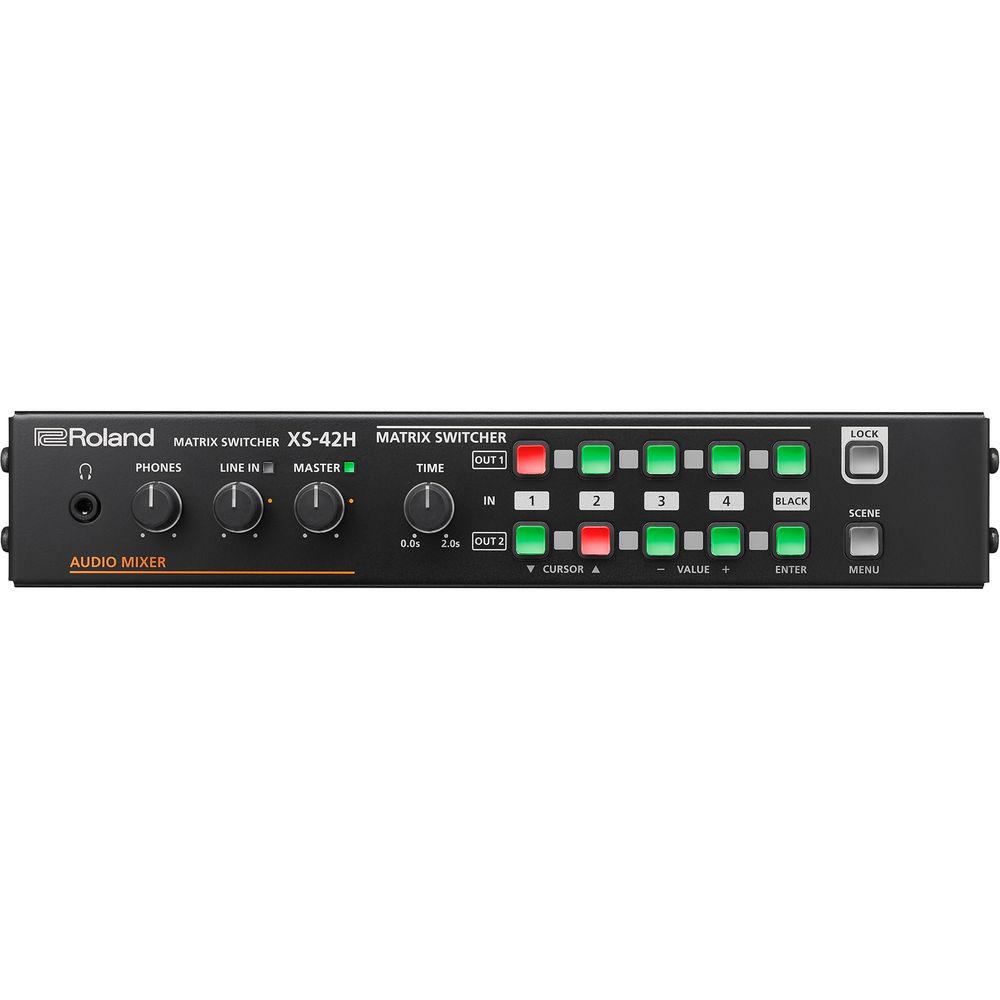

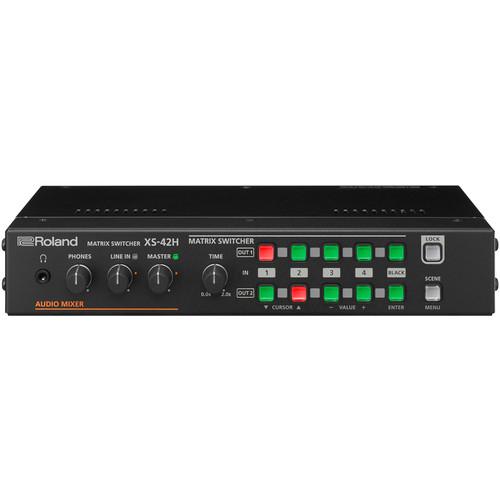

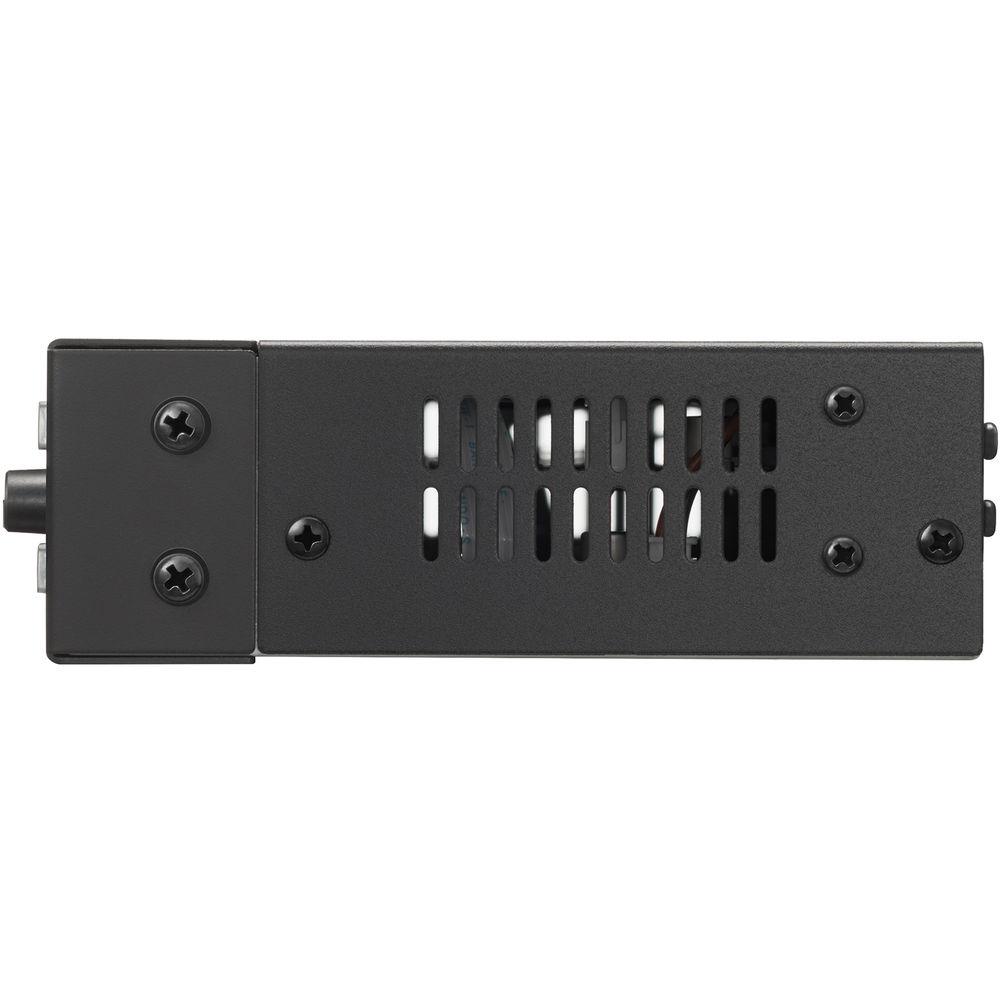

Product description Designed for meetings and huddle spaces, Roland's XS-42H Matrix Switcher 4 x 2 HDMI enables you to switch up to four HDMI sources to one or two output displays. This compact unit features auto source detection, source scaling, and web-based browser setup and wireless control using your tablet, laptop, or smartphone. The XS-42H Switcher supports multiple video resolutions up to 1080p60, offers mix and cut transitions, and accepts still image and logo input via a USB port. Use the internal audio mixer to adjust the embedded HDMI audio and output audio via the RCA connections and external speakers. The XS-42H Switcher's dual HDMI outputs can be used to present complementary content like documents, a website window, or video conferencing in addition to your main speaker or presentation. A default input source can be set to display before each use and a still photo or your company logo can be input for automatic display if the XS-42H Switcher is unlinked from your computer. - Features
-
- Switch up to four HDMI inputs to one or two outputs
- Supports multiple video resolutions up to 1080p60
- Auto Input Detection enables content to display automatically
- Present more content using two displays
- Browser-based network control for remote switching and simple set-up using tablet, laptop, or smartphone
- Internal audio mixer, RCA inputs/outputs for embedding and de-embedding audio
- One-button recall of saved meeting presets
- Input still photos and logos via USB port
- Automatically defaults to a stored image or logo if disconnected from your computer

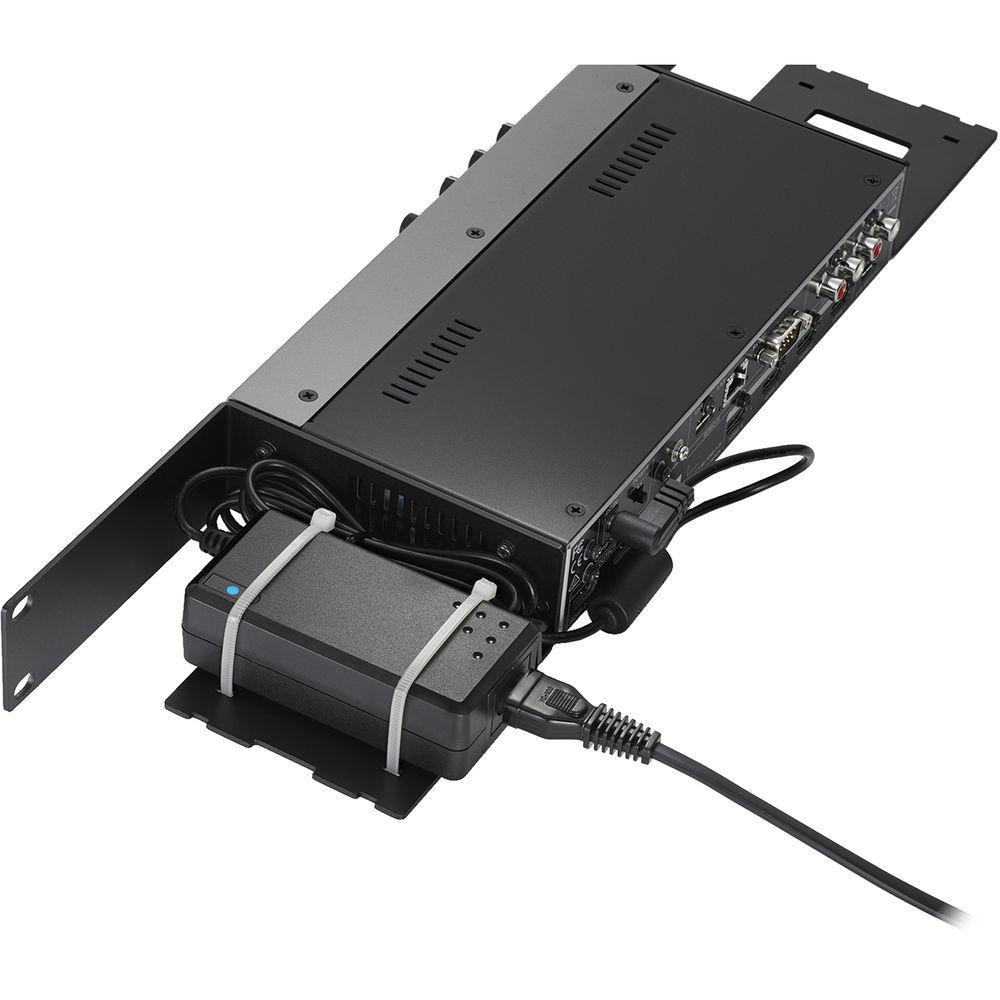

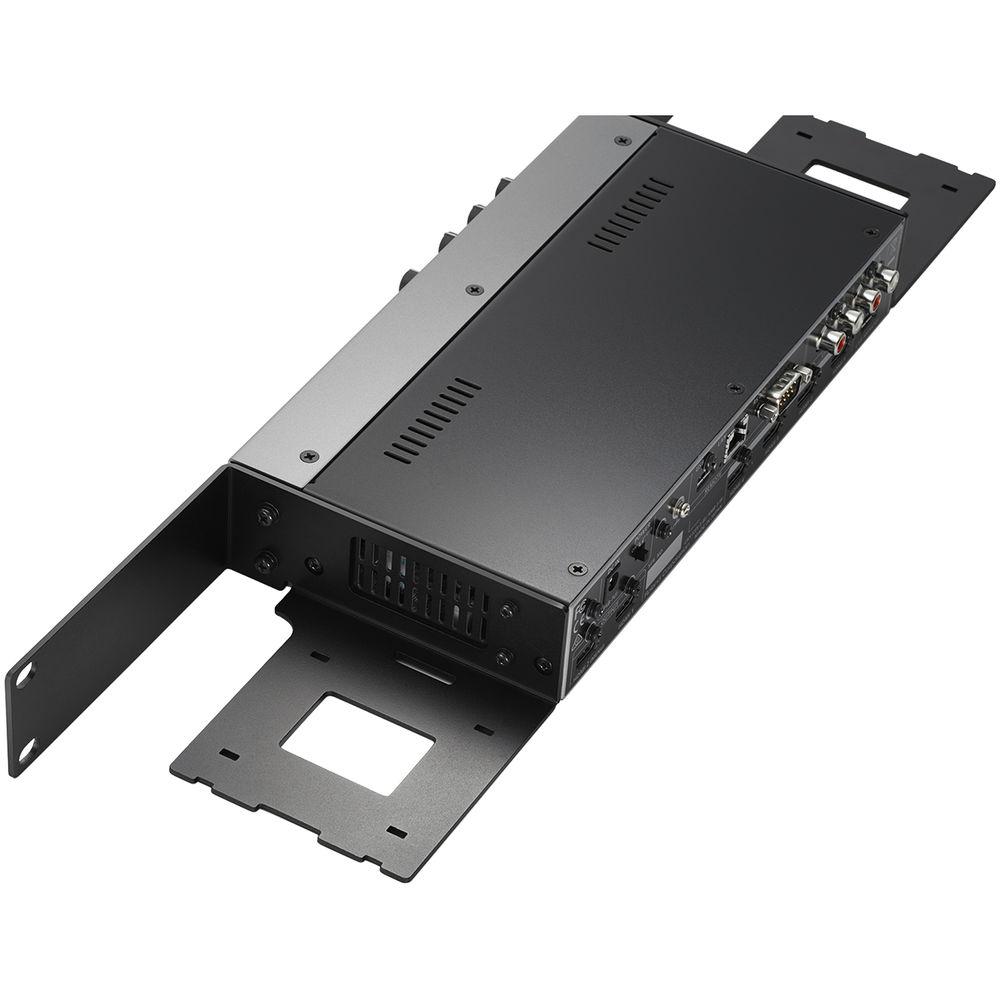

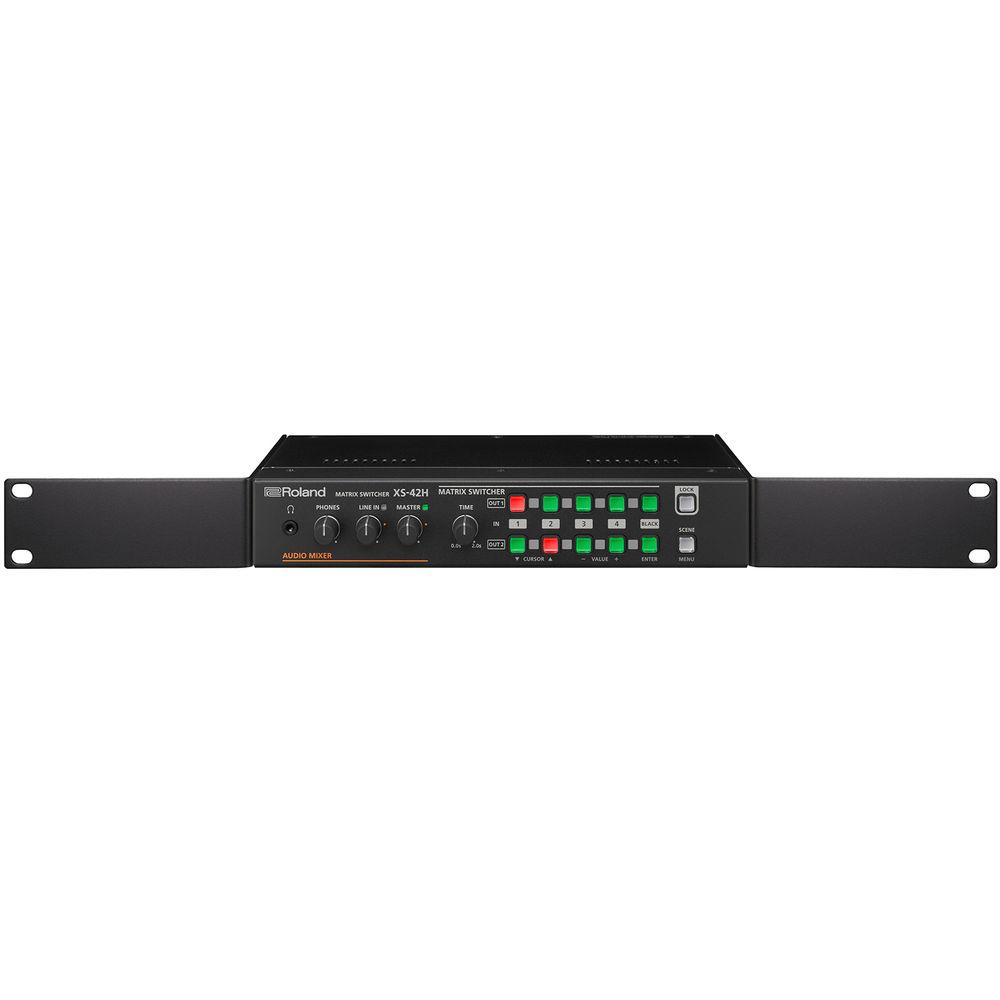

UPC: 761294513316 In the Box Roland XS-42H Matrix Switcher 4 x 2 HDMI AC Adapter Power Cord 4 x Rubber Feet Rackmount Angle Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland XS-42H Matrix Switcher 4 x 2 HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland XS-42H Specs | | | Processing | 4:4:4 (Y/Pb/Pr, RGB), 10-bit
4:2:2 (Y/Pb/Pr), 10-bit | | Input Connectors | HDMI: 4 x HDMI type A (HDMI input 1-4) | | Output Connectors | 2 x HDMI type A (HDMI output 1-2) | | HDCP Compliant | Yes | | Supported Formats & Resolutions | 1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
576p: 50*
576i: 50*
480p: 59.94*
480i: 59.94*
1920 x 1200/60 RB, 1920 x 1080/60
1600 x 1200/60
1400 x 1050/60**
1366 x 768/60**
1280 x 1024/60**, 1280 x 800/60**, 1280 x 720/60**
1024 x 768/60**
800 x 600/60* * Input only.
**Output refresh rate is 75 Hz when frame rate is set to 50 Hz. | | Transition Effects | Mix, cut | | Still Image Support | Internal Memory: x 1
Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp), 24 bpp, uncompressed | | | | Sample Rate | 48 kHz, 24-bit | | Input Connectors | HDMI: 4 x HDMI type A
RCA: 1 x stereo | | Output Connectors | HDMI: 2 x HDMI type A
Audio Output: 1 x RCA stereo
Headphones: 1 x stereo mini | | Input Level | -10 dBu (maximum: +8 dBu) | | Input Impedance | 15 kOhms | | Output Level | Audio Output: -10 dBu (Maximum: +8 dBu)
Headphone Output: 72 mW + 72 mW (32 Ohms) | | Output Impedance | Audio Output: 1 kOhm

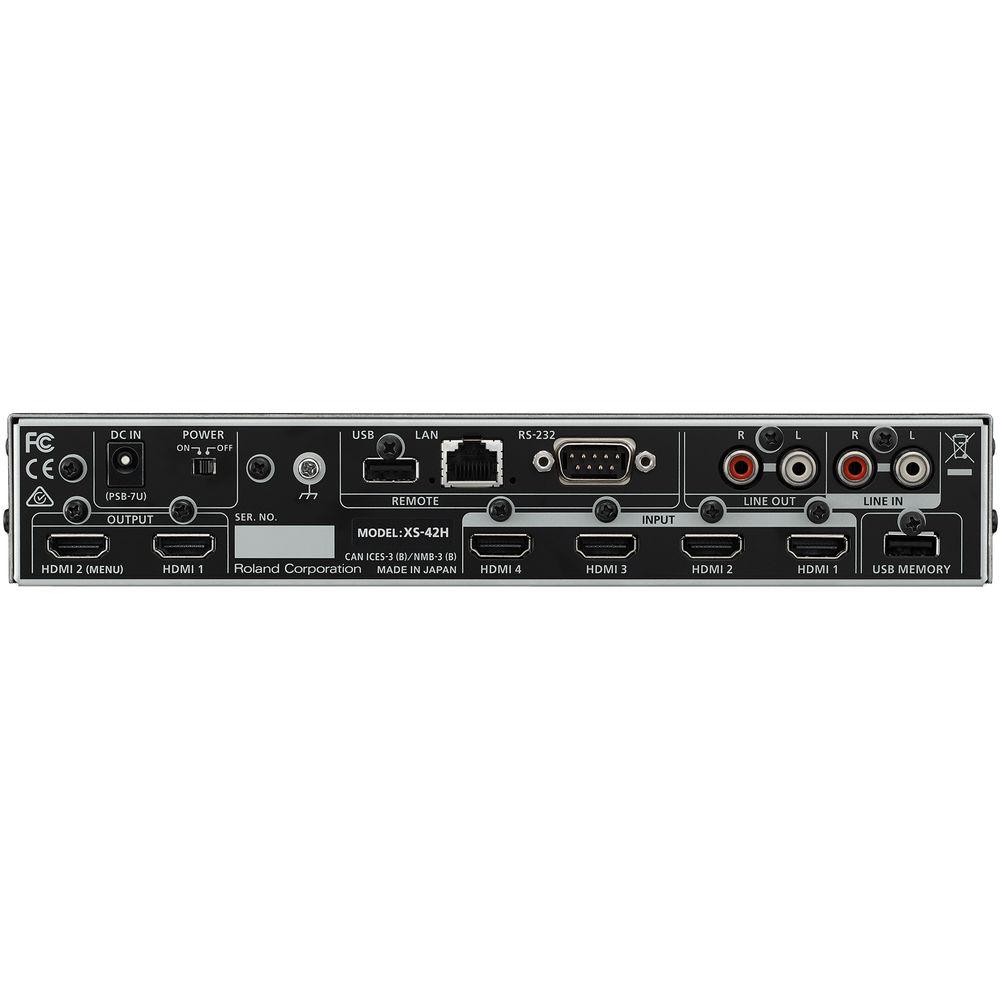

Headphone Output: 10 Ohms | | Format | HDMI: Linear PCM, 24-bit, 48 kHz, 2-ch | | Processing | Mixer: 4-ch (maximum delay: 250 ms, audio follow) | | | | External Connectors | Remote:
1 x RS-232, DB-9 (male)
LAN: 1 x RJ45
USB: 1 x USB Type-A (future expansion)
USB Memory:
1 x USB Type-A | | Functions | Scene Memory: x 10
Test pattern generator
Test tone generator
EDID emulator | | Power Supply | AC adapter | | Current Draw | 2.1 A | | Power Consumption | 25 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (WxDxH) | 9.5 x 4.9 x 1.7" / 242 x 125 x 44 mm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 5.995 lb | | Box Dimensions (LxWxH) | 14.1 x 10.5 x 6.4" |
