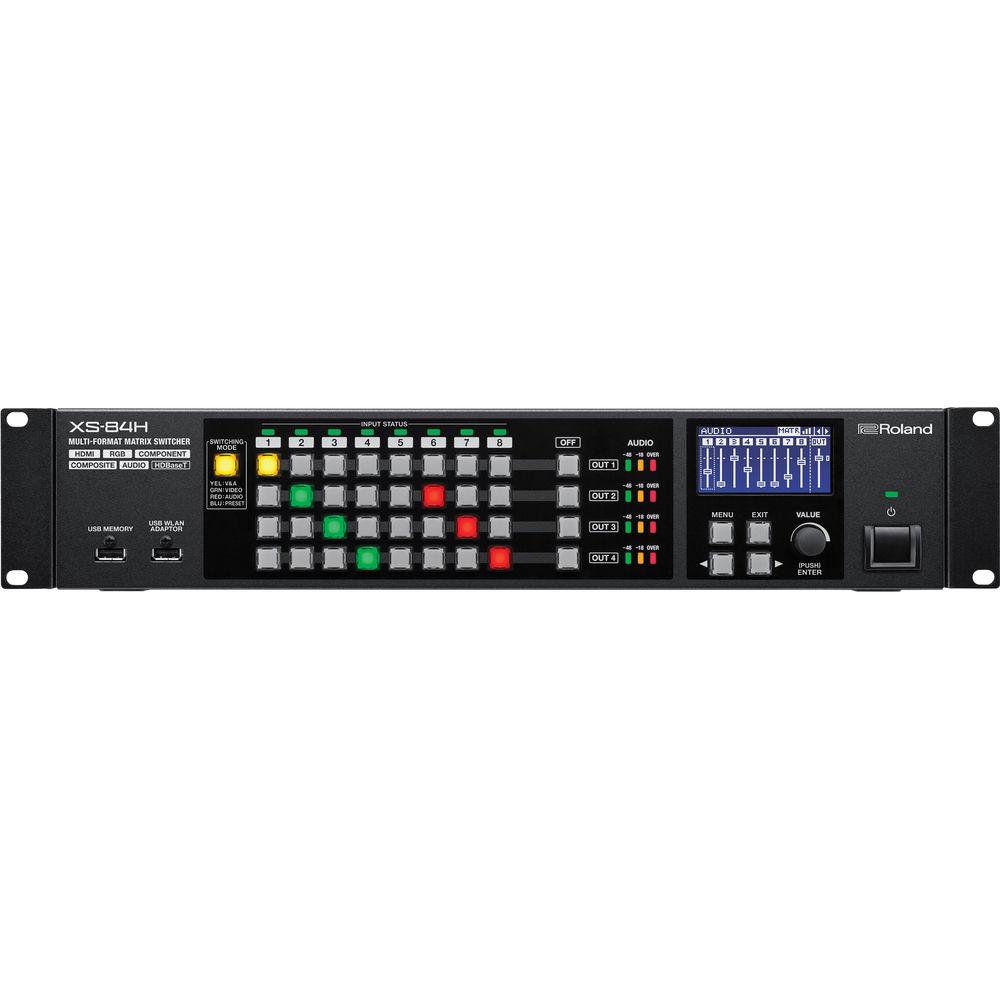

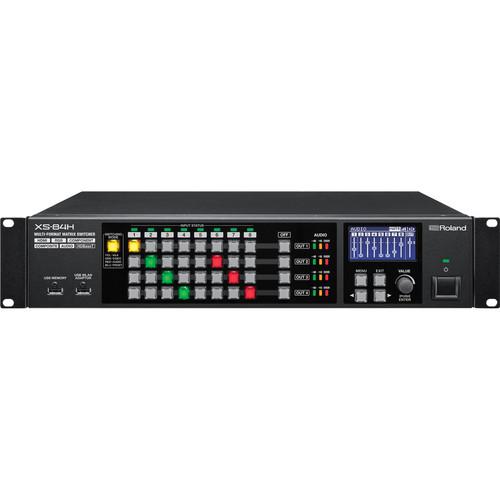

Product description The Roland XS-84H 8x4 Multi-Format AV Matrix Switcher is designed for fixed installations requiring high-quality integrated video and audio conversion and switching. The XS-84H is adaptable, supporting eight HDMI, RGB/Component/S-video/Composite inputs and up to 4 HDMI or HDBaseT outputs with scalers to support picture-in-picture, resizing, rotating, and flipping. Audio can be embedded into outputs via 8 stereo audio inputs (2 mic) and/or HDMI audio as well as de-embedded HDMI audio on output. Additional features include iPad control, EDID emulation and HDCP management. - Main Features
-
- Inputs: 8 HDMI and 8 RGB/Component/S-video/Composite analog video
- Outputs: 4 HDMI and 4 HDBaseT (Switchable HDMI or HDBaseT per output)
- Support for maximum resolution of WUXGA and 1080p, with built-in scalers
- 8 stereo line inputs (2 mic compatible with 48V phantom) with built-in AD/DA conversion and embedded/de-embedded HDMI audio
- 16 channel digital audio mixer with audio digital effects (HPF, 4 Band EQ, noise gate/expander,and compressor) and outputs delay
- Support for RS-232C, network, and iPad control
- Integrated Video and Audio Environment
- The XS series offers an integrated environment for routing and switching HDMI and analog sources and digital displays. The series enables high-speed switching for HDMI, RGB, component, S-video, and composite video.
The series features EDID emulation for HDMI and RGB signals, managing EDID information between the display and HDMI source to ensure a stable system environment for HDMI. The HDCP key master feature maintains authentication information for each HDMI source enabling high speed switching under 5 frames.
The powerful DSP enables the switching and mixing of audio input as well. Up to four audio mixes can be created from both analog audio inputs as well as embedded HDMI audio inputs. The resultant mix can be embedded back into the HDMI/HDBaseT outputs as well as analog audio outputs.
The XS series achieves sophisticated sound processing thanks to the built-in audio DSP technology from Roland. Along with eight HDMI audio inputs, the series can accept eight stereo analog audio inputs as well. For audio-level adjustment, in addition to using the unit's knob, detailed settings can be configured by remote control from an iPad or external controller. Monitoring volume levels is convenient with the level meter display on each output.
The XS series accommodates mic-level audio input on two channels. A built-in ducking function enables lowering the volume of other audio during microphone input.
The audio inputs are each provided with an internal high-pass filter, 4-band equalizer, noise gate/expander, and compressor. The audio outputs are each provided with a 4-band equalizer, noise gate/compressor, and delay.

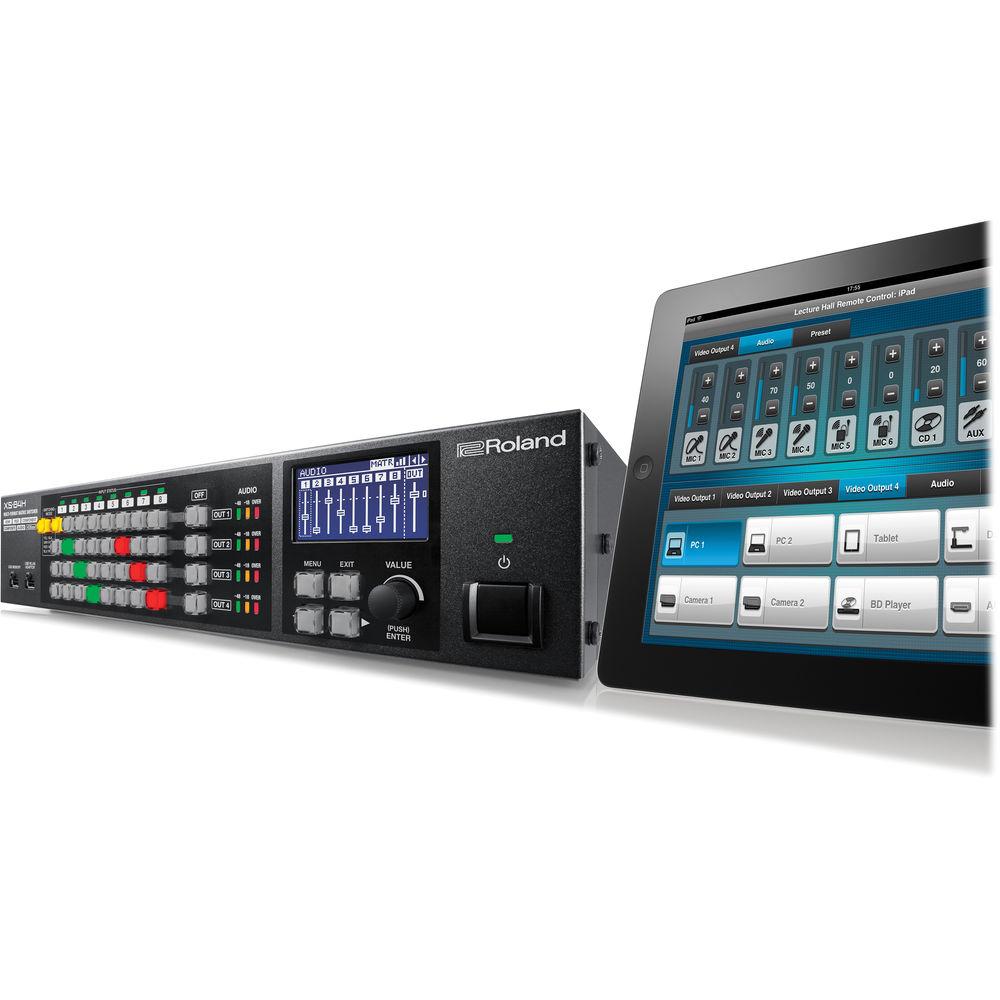

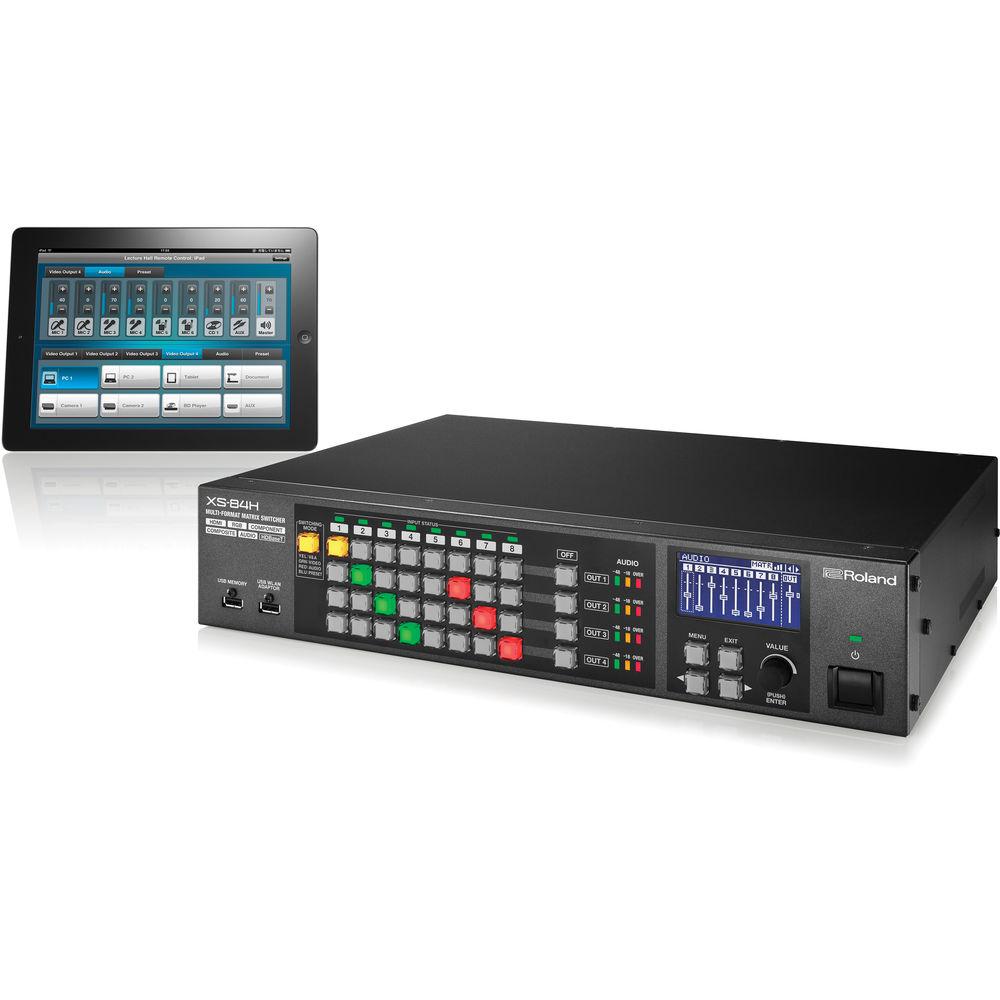

Using the Roland WNA1100-RL wireless USB adapter enables direct control from an Apple iPad installed with Roland XS Remote. Along with operating the unit, Roland XS Remote can be used to change settings instantly with its memory-recall function. - Video Processing
- The XS series can scale individual inputs of HDMI, RGB, component, S-video, or composite video and output the results in a format suited to the system. Scaling can be adjusted in single-pixel increments enabling display of video that fits any screen exactly. (When compositing functions, all outputs are fixed to the same format.)
Resolutions up to WUXGA/1080p are supported for both input and output. Deinterlacing interlaced video for output as a progressive signal is also possible.
Video signals can be flipped vertically and horizontally, or rotated 90 degrees. Using this in combination with scaling makes split-picture output possible.
The Preview Out function enables the user to check a video source before sending it to an output. The Presentation mode enables the operator to view guides lines indicating the main screen output size. UPC: 761294505953 In the Box Roland XS-84H 8x4 Multi-Format AV Matrix Switcher AC Power Cord 5 x Rubber Feet 12 x Euroblock Plug Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland XS-84H 8x4 Multi-Format AV Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

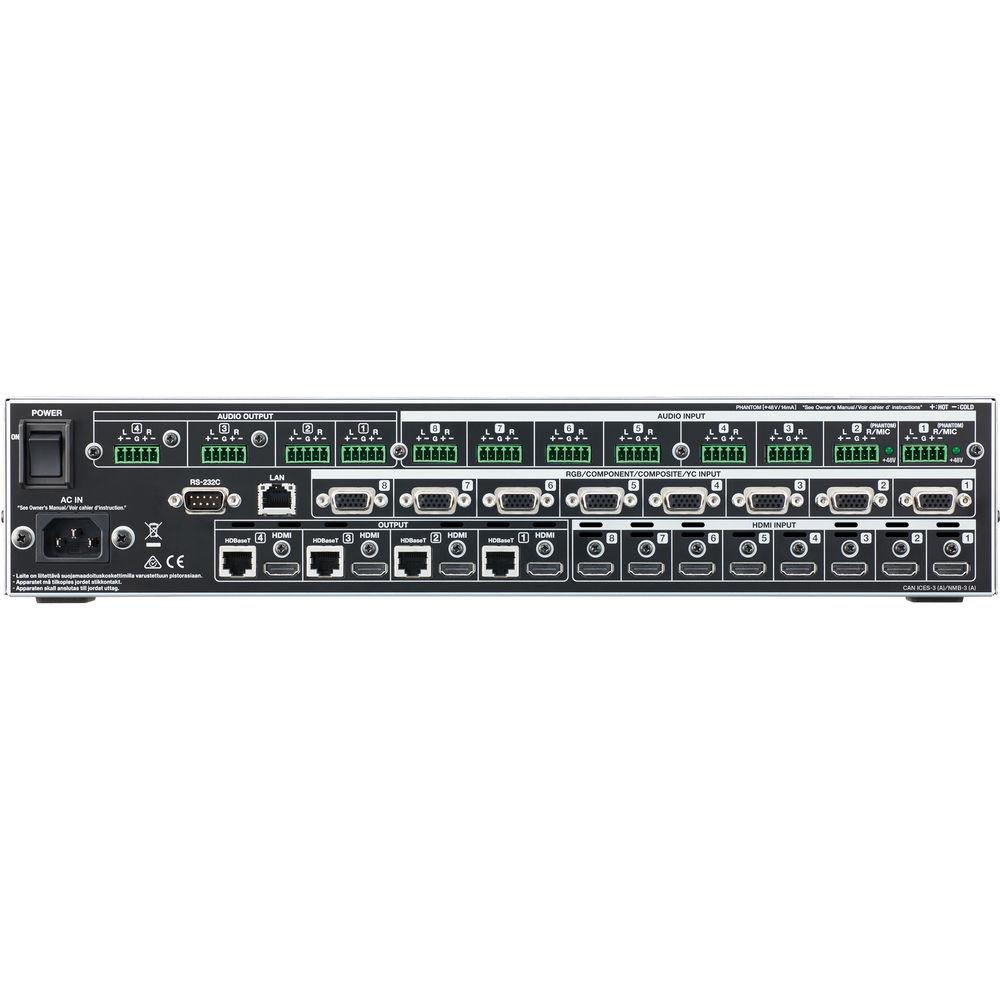

Technical parametersRoland XS-84H Specs | | | Processing | 4:4:4 (Y/Pb/Pr), 10-bit | | Input Connectors | 8 x HDMI (Type A) HDCP Supported
8 x RGB/Component/S-video/Composite (HD DB-15 type) | | Output Connectors | 4 x HDMI (Type A)
4 x HDBase T (RJ-45) | | Input/Output Level and Impedance | RGB/Component
Level : 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL)
Impedance : 75 ohms
Composite/S-video
Level : 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL)
Impedance : 75 ohms | | Supported Input Formats | HDMI : up to 1080p/59.94, up to 1920x1200/60
Component : up to 1080p/59.94
RGB : up to 1920x1200/60 Reduced Blanking (Maximum 1920 x 1200 pixels, 24 bit per pixel, uncompressed)
Composite : 480i/59.94, 576i/50
S-video 480i/59.94, 576i/50
Still Image: Windows® Bitmap File (.bmp) | | Supported Output Formats | HDMI : up to 1080p/59.94, up to 1920x1200/60
HDBaseT : up to 1080p/59.94, up to 1920x1200/60 | | Effects | Transition : Cut
Composition : PinP
Others : Vertically flip, Horizontally flip, Rotated 90 degrees | | | | Audio Processing | Sampling Rate : 24-bit/48 kHz | | Input Connectors | Digital : 8 x HDMI (Type A)
Analog : 8 x 5-pin terminal block connector | | Output Connectors | Digital : 2 x HDMI Type A (19 pin)
Analog : 2 x 5-pin terminal block connector | | Input Level and Impedance | Ch 1 to 2 : -60 to +4dBu (Maximum: +22 dBu), 10k ohms (Gain 0 to 23 dBu), 5k ohms (Gain 24 to 64 dBu)
Ch 3 to 8 : +4dBu (Maximum: +22 dBu), 8.5k ohms | | Output Level and Impedance | Ch 1 to 4 : +4dBu (Maximum: +22 dBu), 600 ohms | | Audio Formats | HDMI : Linear PCM, 24bit, 48kHz, 8ch | | Effects | Input : High-pass filter, 4-band equalizer, Gate/Expander, Compressor
Output : 4-band equalizer, Gate/Compressor, Delay | | | | Connectors | 1 x D-Sub 9 pin type for RS-232C
1 x RJ-45 for Ethernet
2 x USB A Type for USB memory, for WNA-1100RL | | Display | 2 x color LCD 128 x 64 dots | | Power | Power Supply : AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption : 50w | | Dimensions | 18.9 x 13.1 x 3.5" / 481 x 334 x 88 mm | | Weight | 11.7 lb / 5.3 kg | | | | Package Weight | 18.85 lb | | Box Dimensions (LxWxH) | 22.677 x 18.661 x 8.583" |
