User Manual for ROLI Lightpad Block - Wireless Illuminated Tactile Control Surface Click to enlarge the picture
Contents of the user manual for the ROLI Lightpad Block - Wireless Illuminated
- Product category: Control Surfaces ROLI
- Brand: ROLI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ROLI Control Surfaces
 |
User manual for the ROLI Lightpad Block - Wireless Illuminated contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ROLI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ROLI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ROLI product will considerably shorten its lifespan!
|
Product description The Lightpad Block from Roli is the central performance Block in the Blocks system and features an illuminated tactile surface that enables the user to shape sounds through five dimensions of touch including strike, glide, slide, press, and lift. It builds sequencing, looping, finger drumming, and expressive control into one intuitive device.

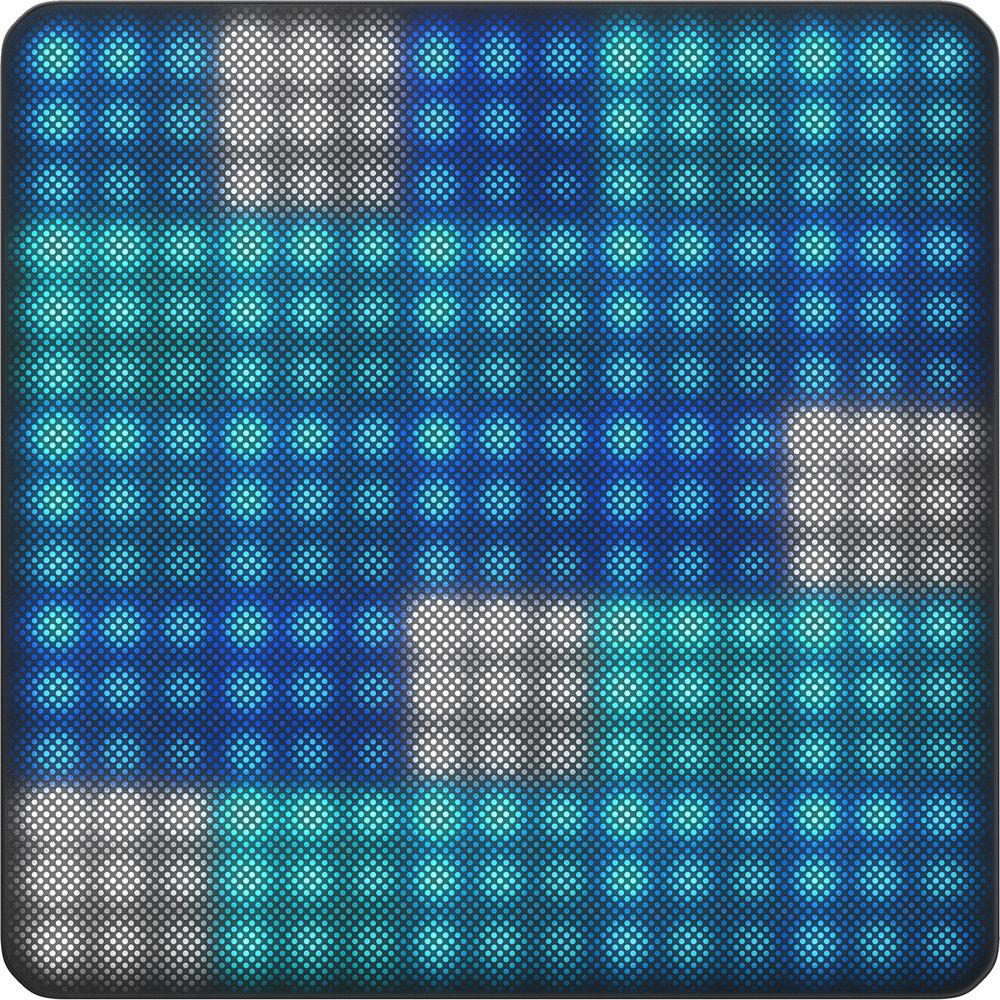

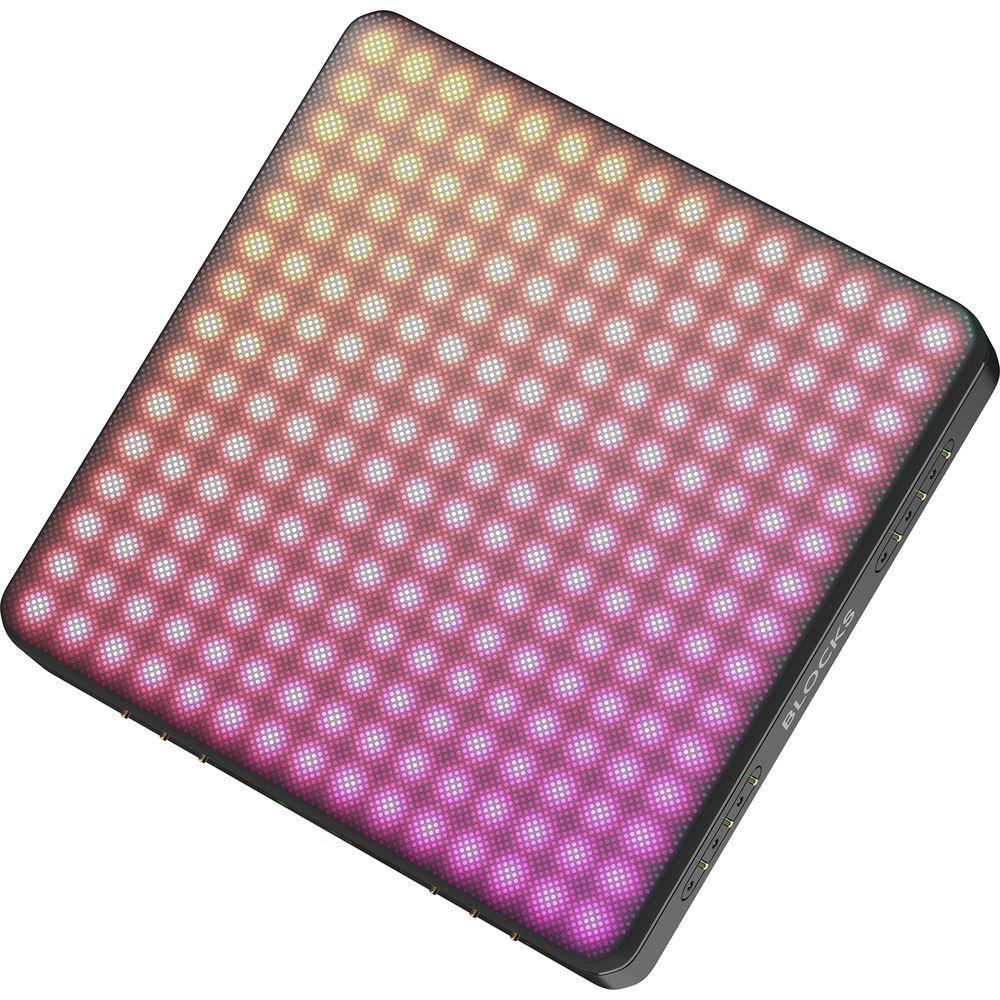

The Lightpad Block is made up of 225 LEDs arranged in a 15x15 matrix and features a laser-etched silicone surface allowing for multidimensional performances. The fixed configuration of the pads is defined by Noise, the free iOS app, and can be configured in three modes including 2x2, 4x4, and 5x5. The Block system is also compatible with desktop applications including Roli's equator, as well as GarageBand, Logic, Bitwig, Max and more. Connections to your iOS device or desktop computer can be made wirelessly via Bluetooth, or from a wired USB connection.
The Lightpad Block is designed to integrate with the optional Live and Loop Blocks, which provide tactile control over the most frequently used functions for quick and easy performance. The Live Block allows for switching scales and octaves, playing chords and arpeggios, and sustaining notes. The Loop Block offers control for capturing loops, layering sounds, tempo, quantization, and more. - Light Pad Interface
-
- Small enough to fit in the palm of your hand, the Lightpad Block packs more power than a roomful of instruments
- When paired with the NOISE app, you can make any kind of music - drum beats, guitar leads, orchestral melodies
- Approachable and easy to learn. Express the music inside of you, whether you play an instrument or not
- Enjoy the interaction of touch, sound, and light
- The silicone surface is pressure-responsive, and you shape sound by striking the surface, pressing into it, and moving your fingers around it
- The LED-illuminated surface glows, and each touch leaves a trace of light. Colorful grids guide you to make different kinds of music
- Grid Layouts
- 2x2 for drum kits with four sounds
- 4x4 for drum kits with 16 sounds
- 5x5 for melodic or pitched sounds (root note is always white)
- Five Ways to Shape Sound Through Touch
-
- Strike: Strike the surface to sound a note, as you would on a piano key or a drum
- Glide: Glide your fingers from side to side to bend the pitch, as violinists do
- Slide: Slide up and down to modulate the sound
- Press: Press into the surface to deepen sounds, like a saxophone player does by breathing more
- Lift: Lift off the surface at different speeds to change a sound’s resonance
- Learn Mode
-
- In Learn Mode, Light Trails appear on the surface that guide you to make beats and melodies
- Learn Mode teaches you the gestures for making music, so you can move more quickly to performing
- Drop Some Beats
-
- Choose a drum kit in NOISE
- Tap the surface with your finger at different speeds and on different pads of the illuminated grid
- You make beats just like you would on live drums
- Choose a Groove Kit and drop some grooves simply by moving your fingers around the surface
- Record loops of your favorite beats to create a track
- Play a Melody
-
- Choose a scale
- The notes of the scale appear on the pads of the illuminated grid
- Turn on Hide Mode and you’ll always be in tune, because you’ll only see the notes for that scale
- Play chords and arpeggios by pressing a single note
- Record melodic sequences from a range of instruments and layer them to create beautiful harmonies
- Make a Song
-
- Arrange a musical composition with the Lightpad Block and NOISE
- Record your favorite beats and melodies as loops, and layer those loops on top of each other to make a song
- Keep building your song as your skills and interests grow
- Perform one part of it live and the riff you improvise may be the best thing you’ve come up with yet
- Expand Your Surface
-

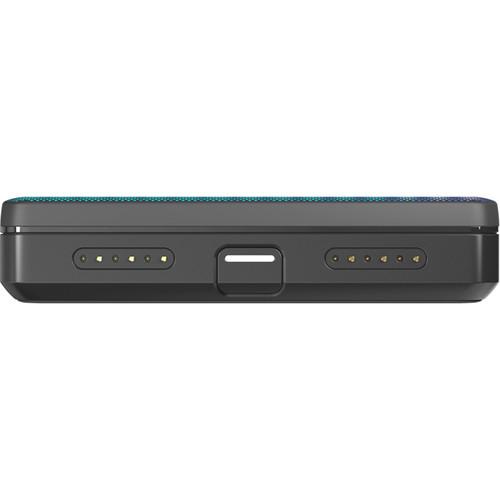

- Blocks DNA connectors not only magnetically connect the Blocks, but also send data, so each Block knows how it’s configured with other Blocks
- Two Lightpad Blocks create a continuous surface that works just like a single Block, but with even more power
- Live Blocks buttons let you switch scales and octaves, trigger chords and arpeggios, and sustain notes in real time
- Mode: Toggle between favorite sounds, loops, and tracks
- Volume: Adjust volume
- Scale: Select any of the available 19 scales
- Chord: Select a chord that is triggered from a single note
- Arp: Select an arpeggio that is triggered when you press a note
- Sustain: Sustain a note
- Octave: Switch up or down up to three octaves
- Heart: Bookmark your favorite sounds
- Loop Blocks are for producing and put studio techniques for recording and editing at your fingertips. Buttons help you record a loop, or sequence and play it back. Set tempo and quantize your performance to keep everything running in time
- Tempo: Set the tempo like a metronome
- Snap: Quantize recorded loops to keep everything in time
- Undo: Undo your last recording
- Play: Play or Pause recorded loops
- Rec: Record a loop
- Learn: Activate demos that teach you how to interact with each sound
UPC: 814773020178 In the Box ROLI Lightpad Block - Wireless Illuminated Tactile Control Surface USB Type-C to USB Type-A Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ROLI Lightpad Block - Wireless Illuminated Tactile Control Surface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersROLI ROL-001141 Specs | System Requirements | iPhone 6, 6 Plus, or newer
iPad air or newer
iOS 9.0 or above | | Port Connectivity | USB Type-C port (MIDI out and power)
Full MIDI compatibility over USB and Bluetooth LE
8 BLOCKS DNA connectors | | Buttons | Mode
Power / Bluetooth | | Bluetooth Range | 49.21' / 15.00 m | | Latency | Touch to Sound Bluetooth Latency: 30 ms | | Battery | 4-hour battery life
2-hour charge time | | Pad | Silicone with durable, smooth urethane coating
225 LEDs on surface | | Dimensions (W x H x D) | 3.7 x 0.8 x 3.7" / 94.0 x 19.8 x 94.0 mm | | Weight | 0.55 lb / 0.25 kg | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 4.8 x 4.8 x 1.7" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
