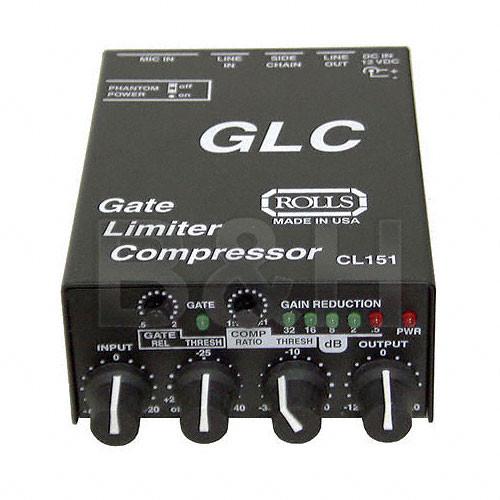

User Manual for Rolls CL151 GLC - Gate and Compressor Limiter with Microphone Preamp and XLR or 1 4" Mic Line Input Click to enlarge the picture
Contents of the user manual for the Rolls CL151 GLC - Gate and
- Product category: Dynamics Processors Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Dynamics Processors
 |
User manual for the Rolls CL151 GLC - Gate and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|

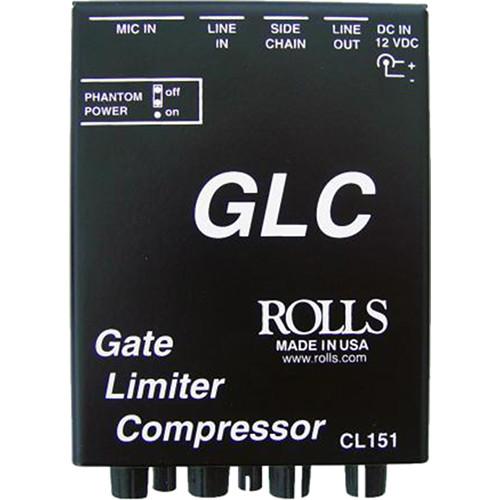

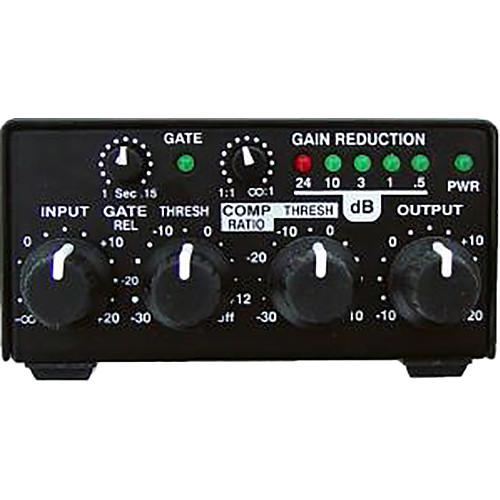

Product description The CL151 GLC from Rolls a compact dynamics processor with the added benefit of a microphone preamp. The unit features smooth, soft-knee compression and limiting and noise gating for quiet operation. Gating is indicated by a front panel LED and functionality includes threshold and gate time controls. Gain reduction is indicated via a five segment LED ladder. - Compact compressor, limiter gate with microphone preamp
- Soft-knee compression/limiting
- Noise Gate with Threshold and Release
- 12V of phantom power available
- Side Chain for detector circuit access
- Balanced inputs and outputs
UPC: 675889001518 In the Box Rolls CL151 GLC - Gate and Compressor/Limiter with Microphone Preamp and XLR or 1/4" Mic/Line Input External Power Supply One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls CL151 GLC - Gate and Compressor Limiter with Microphone Preamp and XLR or 1 4" Mic Line Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls CL151 Specs | Function | Compressor, Limiter and Gate | | Number of Channels | Single | | Inputs | 1 x XLR
1 x 1/4" TRS phone
1 x 1/4" TRS phone Insert | | Outputs | 1 x 1/4" TRS phone | | Maximum Input Level | +14dBV | | Compression Threshold | -30dB to +10dB | | Compression Ratio | 1:1 to infinity:1 | | Attack Time | 5 mSec | | Release Time | 800 mSec | | Gate Threshold | -30dB to OFF | | Gate Rate | Attack: 5 mSec
Release: 150 mSec to 1 S | | Maximum Output Level | +14dBV | | Make-up Gain | -10dB to +20dB | | Frequency Response | 10Hz to 30kHz, +0/-3dB | | Dynamic Range | Not specified by manufacturer | | Noise | -72dBV, output level minimum, gate off | | Dimensions (WxDxH) | 4 1/8" x 2 1/2" x 1 5/8" | | Weight | 1 lbs | | Specialties | Microphone preamplifier with 12V phantom power | | | | Package Weight | 1.535 lb | | Box Dimensions (LxWxH) | 9.9 x 7.35 x 4.35" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
