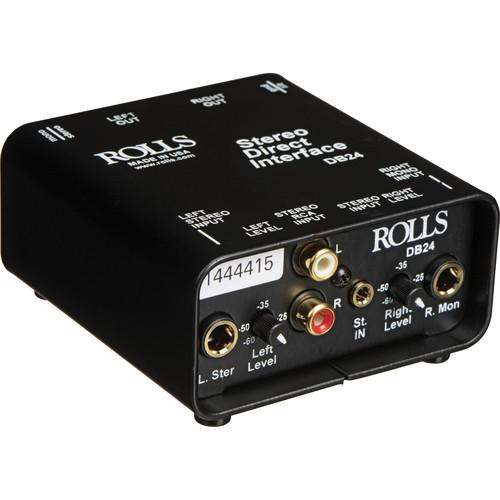

Product description The DB24 from Rolls is a stereo Direct Interface (DI) that provides dual channel isolation and designed to connect high impedance devices to low impedance. The unit is completely passive, and utilizes proprietary audio transformers for superior sound. Housed in a heavy-duty steel chassis to provide maximum reliability when used in demanding live sound reinforcement applications, the unit provides a variety of inputs including stereo and mono 1/4", stereo RCA, and stereo 1/8". The DB24 is an ideal impedance matching device for connecting any unbalanced stereo signal to a balanced system. Consumer audio equipment such as CD players, DVD players, MP3 players, etc., may be easily connected to a professional audio system. - 2 channel, transformer isolation DI
- Passive with no additional power required
- Stereo RCA, 1/8", and dual 1/4" inputs
- Ground lift switch for each channel
- Individual variable attenuators for each channels
UPC: 675889002409 In the Box Rolls DB24 - Stereo Direct Interface One (1) Year Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls DB24 - Stereo Direct Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls DB24 Specs | Type | Passive | | Input Connections | 2 x 1/4" TS phone
1 x 1/8" TRS stereo mini
2 x RCA | | Output Connectors | 2 x XLR | | Input Impedance | 600 to 20kΩ | | Output Level | +4dBm | | Controls | 2 x Variable attenuators | | Frequency Response | 50Hz to 15kHz, +/-3.0dB | | Noise | Not specified by manufacturer | | Power | Not applicable | | Dimensions (WxDxH) | 3.42 x 3.3 x 1.45" (87 x 84 x 37mm) | | Weight | 1.5 lbs (0.68kg) | | Specialties | Individual ground lift switches | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.2 x 4.7 x 2.1" |
