User Manual for Rolls DB325 Instrument FET Preamp DI Click to enlarge the picture
Contents of the user manual for the Rolls DB325 Instrument FET Preamp DI
- Product category: Direct Boxes Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Direct Boxes
 |
User manual for the Rolls DB325 Instrument FET Preamp DI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|

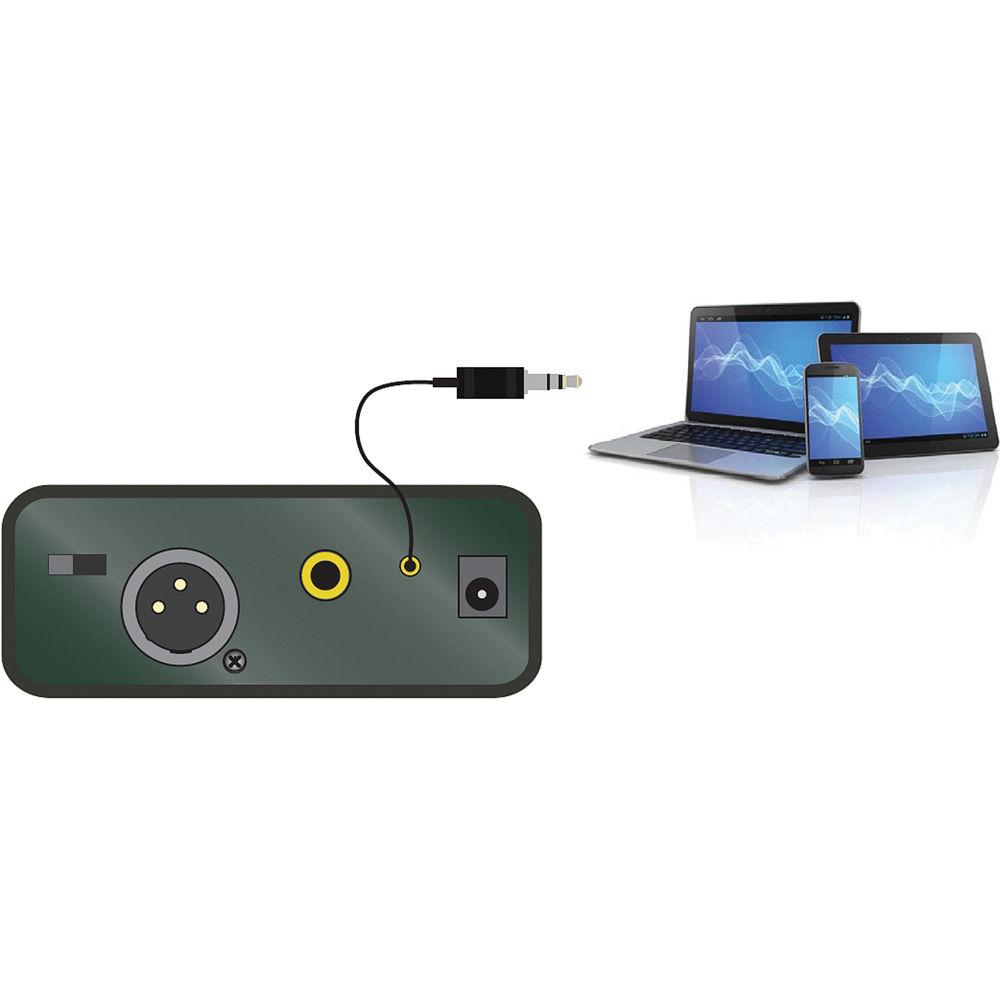

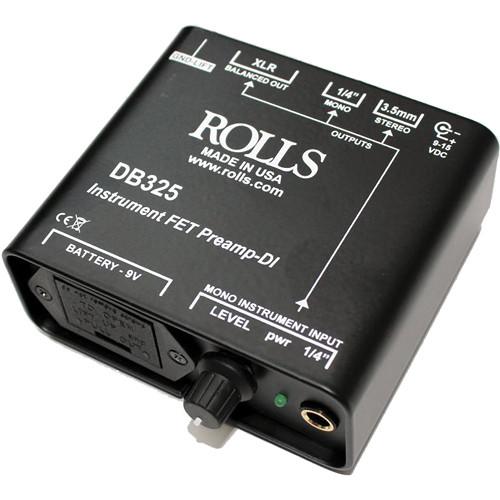

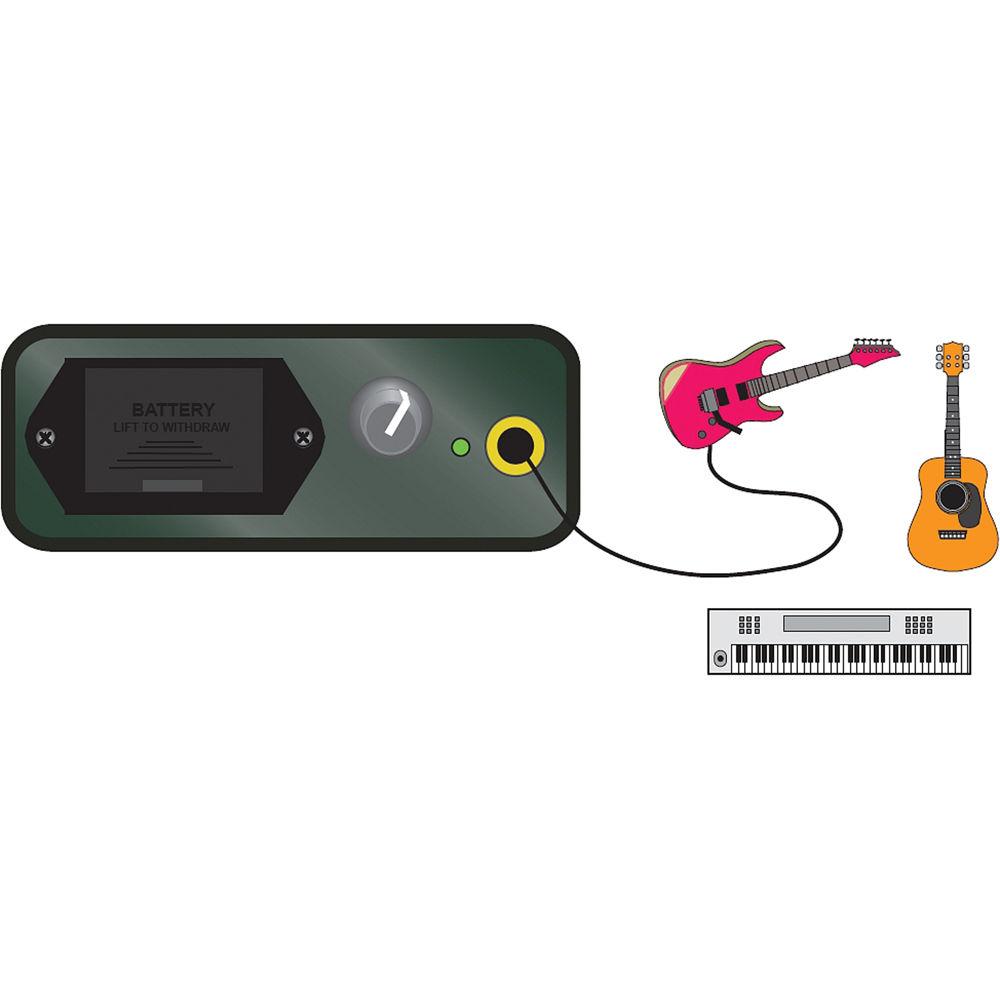

Product description The Rolls DB325 Instrument FET Preamp DI is an instrument active direct box. It is designed to take a guitar, bass or keyboard and plug it directly into a computer, laptop or tablet. It can also be used to boost the signal of an instrument to be plugged in to just about anything. It works well with piezo pickups typically found in acoustic instruments. It will also work to add more gain to you guitar tube amp. - Mono 1/4" input with level control.
- 3.5mm (Stereo) and 1/4" (MONO) outputs.
XLR Balanced output. - 9V battery or included AC adapter operation
- Class A design no feedback
UPC: 675889032505 In the Box Rolls DB325 Instrument FET Preamp DI Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls DB325 Instrument FET Preamp DI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls DB325 Specs | Connectors | 1x XLR Female 1x 1/8" (3.5 mm) TRS 2x 1/4" (6.3 mm) TS | | Input Impedance | 4 MΩ | | Frequency Response | 20 Hz to 20 kHz (+/- 3 dB) | | Output Impedance | XLR: 600 Ω @ 1 kHz | | Maximum Output Level | +8 dBm (XLR -12 dBm) | | Maximum Input Level | -13 dB | | Gain | 20 dB, (XLR 0 dB) | | Signal to Noise Ratio | 106 dB | | THD | < 0.570% | | Dimensions (W x H x D) | 4 x 1.625 x 3.5" (101.6 x 41.2 x 88.9 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.0 x 4.8 x 2.7" |
