User Manual for Rolls DU30b Audio Ducker with Microphone Preamp Click to enlarge the picture
Contents of the user manual for the Rolls DU30b Audio Ducker with Microphone
- Product category: Microphone Preamps Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Microphone Preamps
 |
User manual for the Rolls DU30b Audio Ducker with Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|

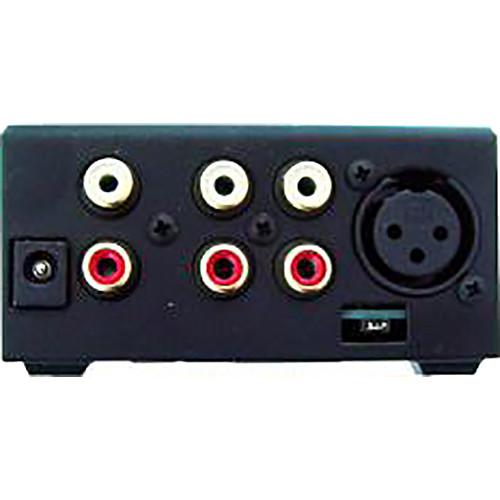

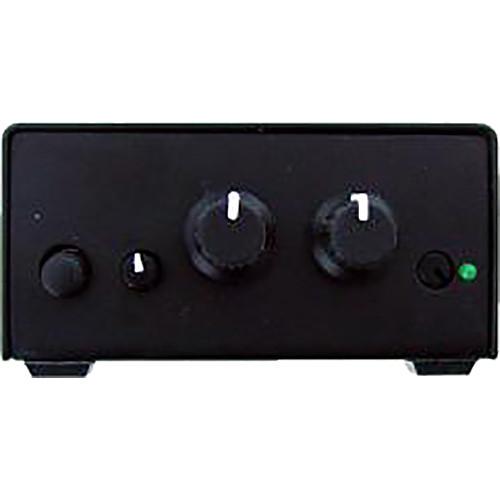

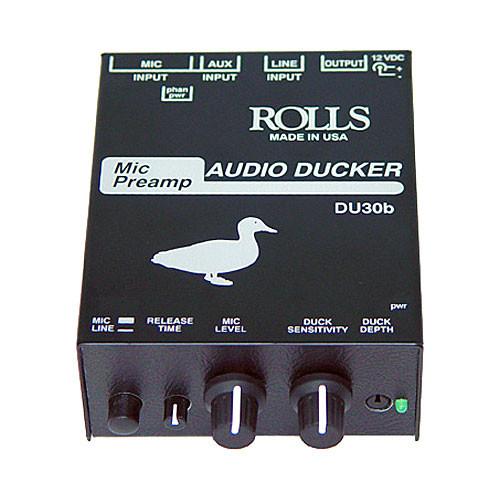

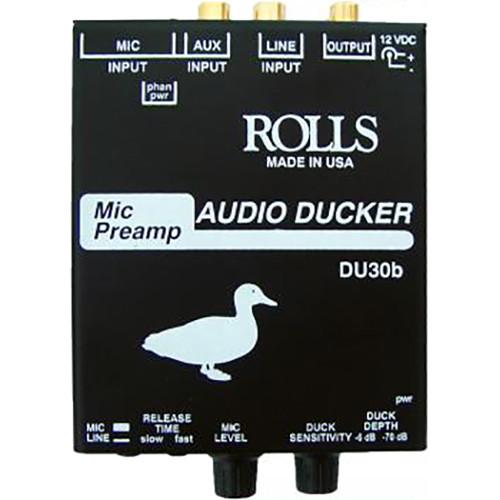

Product description The easy to use Rolls DU30b Audio Ducker with Microphone Preamp is designed for a small club, restaurant, or store where voice paging is required to be heard over background music. The unit inputs the music source via a pair of RCA inputs, while the microphone is connected via an XLR input that can supply +12V phantom power. If another source other than voice needs to control the ducking, that can be brought into the unit on additional RCA jacks. The microphone input has a pad in case the microphone being used has a high output. The sensitivity control of the DU30b sets the threshold at which the microphone will duck the music, and a mic level knob controls the volume of the microphone input. - Audio ducker for small club, restaurant or store
- 2 RCA inputs for music, 1 XLR Mic input with level knob for volume control and +12V Phantom Power
- Microphone pad switch to temper high-output mic levels
UPC: 675889000306 In the Box Rolls DU30b Audio Ducker with Microphone Preamp External Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls DU30b Audio Ducker with Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls DU30b Specs | Number of Channels | 1 | | Inputs | 1 x XLR microphone, 2 x RCA coaxial Music In, 2 x RCA coaxial Alt In | | Output | 2 x RCA coaxial | | Phantom Power | +12V | | Multi Function | No | | Gain Range | Not Specified by Manufacturer | | Maximum Output Level | Not Specified by Manufacturer | | Frequency Response | 20Hz to 40kHz | | Noise | Noise floor -78dBu | | Dimensions | Desktop enclosure | | Specialties | A repeating announcement on prerecorded media can be used as a trigger via the "alt input" jacks | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.0 x 4.7 x 2.6" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
