User Manual for Rolls HDC39 HDMI to RCA & S PDIF Converter Click to enlarge the picture
Contents of the user manual for the Rolls HDC39 HDMI to RCA &
- Product category: Signal Converters Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Signal Converters
|
User manual for the Rolls HDC39 HDMI to RCA & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|

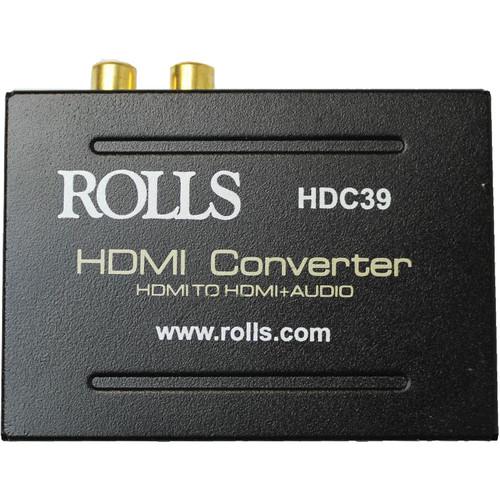

Product description The Rolls HDC39 is an HDMI to audio converter, useful in pairing your home entertainment system with hi-fi audio gear to complement the video image. It sports an HDMI input, and can convert a signal to stereo RCA outputs for line-level stereo, or S/PDIF for 5.1 applications. It will also pass HDMI signal through to a dedicated HDMI output simultaneously.To use the HDC39 as a converter from HDMI to RCA, set the selector switch to the PASS or CH2 position. In these positions, the unit will pass HDMI signal to the RCA outputs while still passing video to the HDMI output connection. For converting HDMI to S/PDIF, put the selector switch in the 5.1 position. A power supply is included. UPC: 675889003901 In the Box Rolls HDC39 HDMI to RCA & S/PDIF Converter Limited 1-Year Warranty Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls HDC39 HDMI to RCA & S PDIF Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls HDC39 Specs | HDMI Resolution | 24/50/60 fps, 1080p/1080i/720p/576p/1576i 480p/480i | | Color Format | 24-, 30-, and 36-bit | | Maximum Bandwidth | 225 MHz | | Max Baud Rate | 6.75 Gbps | | TDMS Signal | Input/Output: 0.5 to 1.5 V p-p (TTL) | | DDC Signal Voltage | Input/Output: 5 V p-p (TTL) | | Max Current Draw | 500 mA | | Power Adapter | 5 VDC at 1 A (tip negative) | | Dimensions | 3.3 x 2.4 x 0.8" / 8.5 x 6.1 x 2.1 cm | | Weight | 4.8 oz / 135.0 g | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 8.2 x 5.0 x 2.5" |
