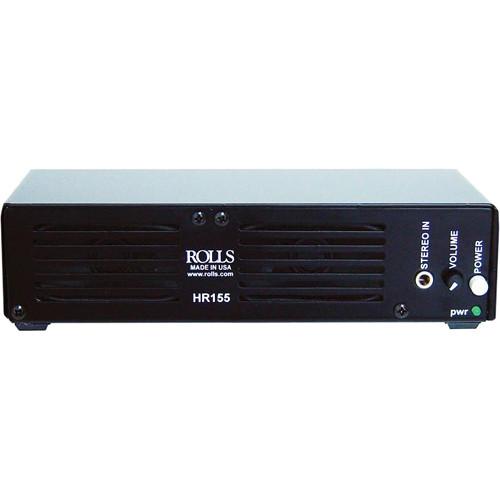

User Manual for Rolls HR155 Rackmount Monitor Speaker Click to enlarge the picture
Contents of the user manual for the Rolls HR155 Rackmount Monitor Speaker
- Product category: Rack Mount Monitors Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Rack Mount Monitors
|
User manual for the Rolls HR155 Rackmount Monitor Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The HR155 from Rolls is a rackmount monitor speaker that provides powerful audio in a compact design. The unit has an all-metal chassis for lasting durability. The rear panel features an XLR line input and stereo RCA line inputs and outputs. The front panel has a stereo 3.5mm line input. This variety of connectors allows you to connect virtually any line-level sound source including mixers, CD players, iPods, and more.
The speaker has a 5W output power to deliver a strong performance. The internal amplifier dissipates heat within the chassis, meaning no outside cooling is required. This allows you to mount the HR155 in a rack with units above and below it without worrying about overheating. The unit has a universal power supply for use virtually anywhere. Note: Optional HR31 Rack Ear Kit and RMS270 Rack Mounting System available separately. - All-metal chassis for lasting durability
- A pair of compact speakers inside the chassis provide stereo audio with an output power of 5W
- The rear panel features an XLR line input and stereo RCA line inputs and outputs. The front panel has a stereo 3.5mm line input. This variety of connectors allows you to connect virtually any line-level sound source including mixers, CD players, iPods, and more
- The internal amplifier dissipates heat within the chassis, meaning no outside cooling is required. This allows you to mount the HR155 in a rack with units above and below it without worrying about overheating
- Universal power supply allows you to use the unit virtually anywhere
UPC: 675889015508 In the Box Rolls HR155 Rackmount Monitor Speaker Power Adapter 1-Year Limited Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls HR155 Rackmount Monitor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Rolls HR155 Rackmount Monitor Speaker can be downloaded in PDF format at the link stated below.
Technical parametersRolls HR-155 Specs | Input Impedance | 10 kOhms | | Voltage Gain | 20dB Line | | Power Supply Voltage | 15VDC | | Total Harmonic Distortion (THD) | 0.05% Typical | | Connectors | 1 x XLR Line Input
1 x Stereo RCA Line Input (2 Jacks)
1 x Stereo RCA Line Output (2 Jacks)
1 x 3.5mm Stereo Line Input
1 x Power Input | | Speakers | 2.5 x 1.75" (64 x 45mm) | | Power Draw | 500mA, Nominal | | Bandwidth | 100Hz - 20kHz | | Dimensions (WxDxH) | 7.5 x 3.1 x 1.75" (191 x 79 x 45mm) | | Weight | 1.25 lbs (0.57kg) | | | | Package Weight | 1.805 lb | | Box Dimensions (LxWxH) | 9.95 x 7.35 x 4.35" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
