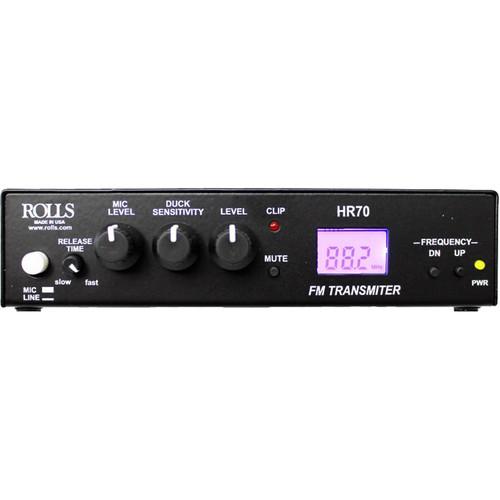

User Manual for Rolls HR70 FM Digital Transmitter Click to enlarge the picture
Contents of the user manual for the Rolls HR70 FM Digital Transmitter
- Product category: Tuners & A/V Receivers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Tuners & A/V Receivers
|
User manual for the Rolls HR70 FM Digital Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The HR70 FM Digital Transmitter from Rolls is designed to receive an audio signal from the built-in XLR or RCA input jacks, and broadcast the audio via FM radio. Select the frequency you would like to broadcast those signals on—87.5 to 108 MHz— and you are now sending signals via FM radio. The HR70 is equipped with power LED and clip LED indicators, and a frequency response of 20 Hz to 12.5 kHz. In addition, there is a built-in talk over circuit. An FM antenna is also included. - LCD display showing the active information relevant to the current operation of the HR70
- USB port to power the HR70
UPC: 675889007015 In the Box Rolls HR70 FM Digital Transmitter (87.5 to 108.0 MHz) AC Adapter Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls HR70 FM Digital Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls HR70 Specs | Frequency Response | 20 Hz to 12.5 kHz | | Input Impedance | 100 kOhms unbalanced, 600 Ohms balanced | | Indicators | Power LED and Clip LED | | Input/Output | XLR balanced input
RCA unbalanced input and output | | Power | 12 to 15 VDC 500 mA
1.2 mm DC jack - center negative | | Output Power | 40 mW | | Antenna Connector | BNC | | Antenna Impedance | 75 Ohms | | Current | 150 mA | | Tuning Range | 87.5 to 108 MHz | | Dimensions | 6.75 x 4.25 x 1.6" (17.14 x 10.79 x 4.1 cm) | | Weight | 1.5 lb (0.68 kg) | | | | Package Weight | 2.19 lb | | Box Dimensions (LxWxH) | 9.9 x 7.4 x 4.4" |
