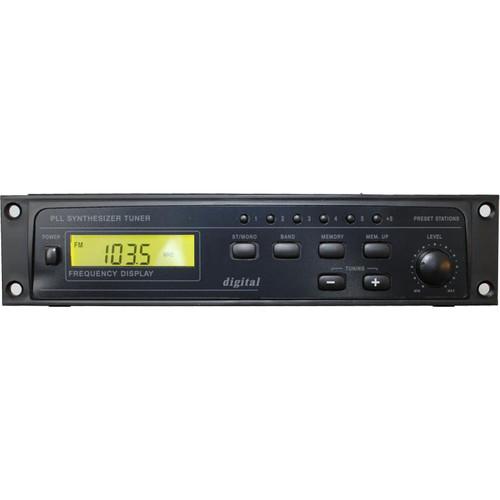

User Manual for Rolls HR78X Digital AM FM Tuner with XLR Output Click to enlarge the picture
Contents of the user manual for the Rolls HR78X Digital AM FM Tuner
- Product category: Tuners & A/V Receivers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Tuners & A/V Receivers
|
User manual for the Rolls HR78X Digital AM FM Tuner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The HR78X from Rolls is a digital AM/FM radio tuner designed for big performance in a small space. This fully digital tuner takes up only half of a 1-unit rack space. Two tuners can fit together in the space of one full-size tuner. Twenty stations can be held in memory. This tuner connects to an amp with a pair of RCA cables, or an XLR jack. - Compact Size
- When rack mounted, 2 of these units can be installed in a single rack-unit space.
- 20 Presets
- Store 10 FM an 10 AM stations for instant recall.
- Antenna Outputs
- Connect a 300-Ohm AM antenna and a 75-Ohm FM antenna to this tuner to receive all your stations.
- Adjustable Audio Level
- Control the loudness of the out-going audio with the level control on the front panel.
UPC: 675889078107 In the Box Rolls HR78X Digital AM/FM Tuner with XLR Output AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls HR78X Digital AM FM Tuner with XLR Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls HR78X Specs | Type | AM/FM | Display | Backlit LCD | FM Frequency Range | 87.5 to 108 MHz | AM Frequency Range | 520 to 1710 kHz | Presets | 20 (20 FM, 10 AM) | Power Output | 0.5 V | Connectors | RCA (L/R), XLR, 75-Ohm FM antenna, 300-Ohm AM antenna | | Power Requirements | 15 VDC | Dimensions (WxHxD) | 6.75 x 9 x 1.75" (17.1 x 23 x 4.4 cm) | Weight | 3.5 lb (1.6 kg) | | Package Weight | 3.4 lb | Box Dimensions (LxWxH) | 14.0 x 8.5 x 4.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
