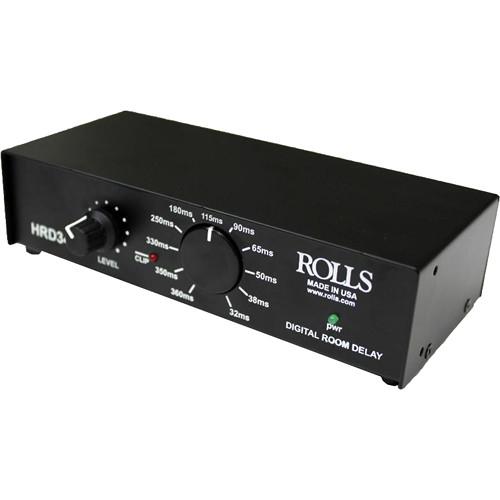

Product description The Rolls HRD324 Digital Room/Speaker Delay is intended for simple time alignment of speakers in larger rooms or outdoors. The delay dial is shown in milliseconds to make setup easy. The 32 to 360 ms shown on the dial will correlate to about the same in feet (32 ms = 32'). The Rolls HRD342 is inserted between the main console output and the amplifiers supplying the delayed speaker signal. - Balanced XLR input and output
- Level control to make up or add gain
- Mounting designed to fit Rolls RMS270 rack tray, HR31 rack ears (not included)
UPC: 675889034202 In the Box Rolls HRD324 Digital Room/Speaker Delay PS27s 15 VDC 100-240 VAC Wall Power Adapter uwyvaxsaaxfybezywbexecavacwt Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls HRD324 Digital Room Speaker Delay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls HRD342 Specs | Maximum Output | +16 dB balanced,
+10 dB unbalanced | | THD + N | 1 kHz, 0.1% 34 ms
0.5% 120 ms | | Noise Floor | -75 dB 43 ms

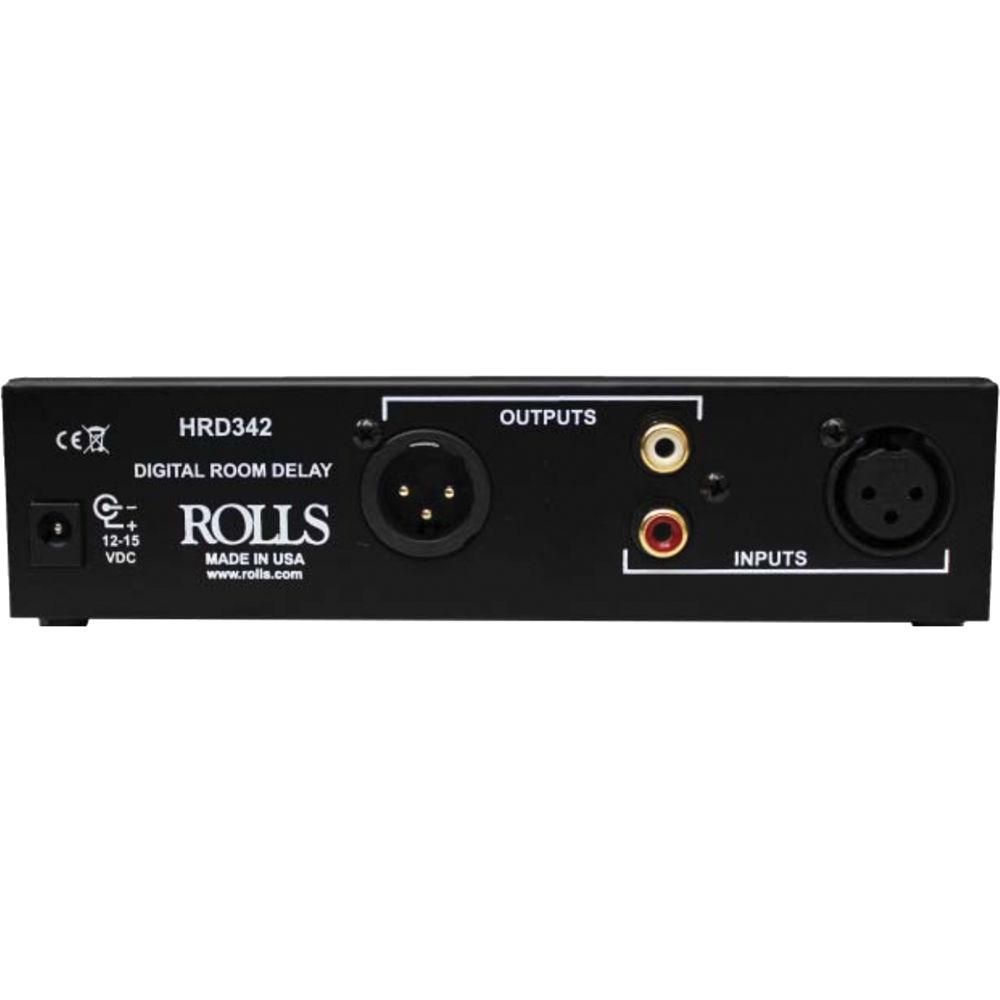

-63 dB 430 ms | | Delay | Delay Time: 32 to 360 ms +/- 20% | | Indicators | Overload Indication red LED full on=overload | | I/O Connectors | Balanced XLR & RCA | | Power | 15 VDC
5.5 X 2.1 mm DC Jack center negative | | Dimensions (HxWxD) | 6.75 x 1.75 x 3" (171.5 x 44.5 x 76.2 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.925 lb | | Box Dimensions (LxWxH) | 14.05 x 8.7 x 3.95" |
