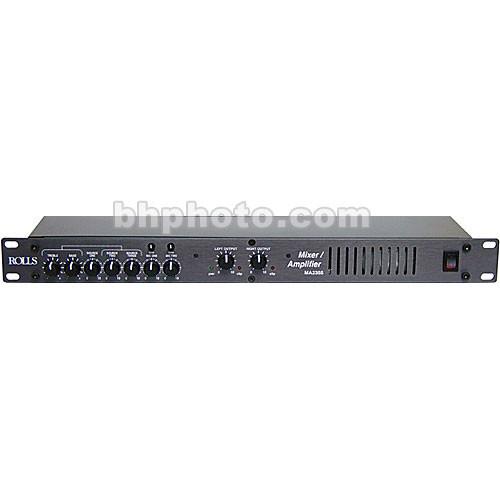

User Manual for Rolls MA2355 5-Input Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Rolls MA2355 5-Input Mixer Amplifier
- Product category: Mixer/Amplifiers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Mixer/Amplifiers
|
User manual for the Rolls MA2355 5-Input Mixer Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The MA2355 from Rolls is a single rack space unit mixer/amplifier designed for paging and background music in installed applications. It has 2 XLR microphone inputs and 3 stereo pairs of RCA jacks for CD players, AM/FM tuners and similar audio devices. The MA2355 provides 35 watts of power into 8 ohm speakers.
Other features include direct access to the power amp section via a 1/4" connector, bass and treble controls on sources one and two, a stereo pre-master record output, and spring-loaded output terminals. Priority ducking for paging is provided on microphone one and RCA source three. - Five inputs - 2 mic, 3 RCA stereo pairs
- Phantom power on mic inputs
- Tone controls for each mic input
- Bass and treble controls on sources one and two
- Direct access to power amp section
- Stereo pre-master level RCA record output
UPC: 675889235500 In the Box Rolls MA2355 5-Input Mixer/Amplifier User Manual 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls MA2355 5-Input Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls MA2355 Specs | Output Power | 35 watts into 8 ohms | | Input Sensitivity | Mic: -14 dBV
RCA: 24 dBV
Amp Insert: 24 dBV | | Input Impedance | Mic: 600 ohms
RCA: 22 k ohms
Amp Insert: 22 k ohms | | Gain | Mic: 60 dBV
RCA: 26 dBV | | Frequency Response | 60Hz - 20kHz | | Signal-to-Noise Ratio | 96 dBV | | Total Harmonic Distortion (THD) | 0.06% | | Input Connections | 2 x 3-Pin XLR Female
3 x Stereo Pairs of RCA Jacks
2 x 1/4" Power Amp Inserts (Left and Right) | | Output Connectors | 1 x RCA Stereo Pair
2 x Spring-Loaded Speaker Outputs (Left and Right) | | Controls Front Panel | Power Switch
5 x Volume Level Controls
2 x Mic Tone Controls
1 x Bass Control Knob
1 x Treble Control Knob
1 x Left Output Level Knob
1 x Right Output Level Knob | | Controls (Rear) | 2 x Stereo/Mono Selector Dipswitches
2 x Priority Dipswitches
2 x Phantom Power Dipswitches | | Indicators | Power and Clip LEDs on Front Panel | | Cooling | Front Panel Acts as Heatsink | | Power Consumption | Not Specified by Manufacturer | | Dimensions (WxHxD) | 19 x 1.75 x 5" (483 x 44 x 127 mm) | | Weight | 5.5 lbs (2.5 kg) | | Specialties | N/A | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 21.5 x 8.0 x 4.0" |
