User Manual for Rolls MB15b Promatch 2-Way Stereo Converter Click to enlarge the picture
Contents of the user manual for the Rolls MB15b Promatch 2-Way Stereo Converter
- Product category: Level Matching Transformers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Level Matching Transformers
 |
User manual for the Rolls MB15b Promatch 2-Way Stereo Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The Rolls MB15b ProMatch is an inexpensive line level audio device that converts consumer level stereo RCA signals to balanced XLR professional line level signals, and vice versa. The unit is useful for video duplication and audio recording studio applications; for example, connecting a consumer VCR to a professional video deck, or an off-the-shelf CD player to a professional mixing console or recorder.

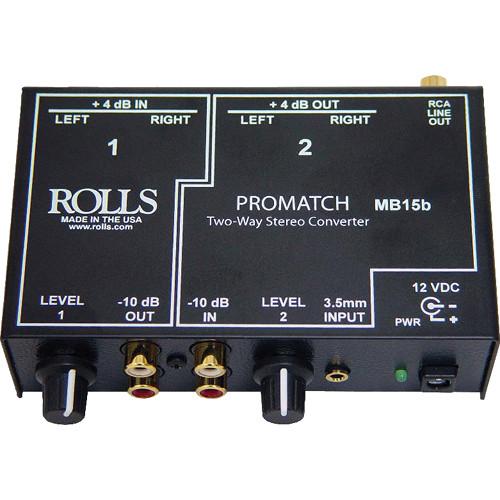

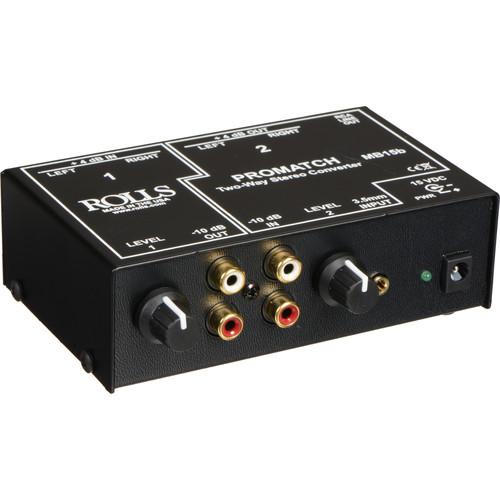

The MB15b ProMatch has 2 XLR inputs and stereo RCA outputs on one side, labeled 1, and stereo RCA inputs and 2 XLR outputs on the other side, labeled 2. Each side has stereo level controls, and an LED indicates that power is applied to the unit.
Additionally, the unit functions as a balanced XLR line level control. By adding a stereo pair of jumper cables between the 4 RCA jacks (connecting ins to outs), the level controls may be inserted into any balanced XLR line. - Bidirectional line level audio signal converter and stereo direct box converts from consumer to professional and professional to consumer levels
- Allows for connection of consumer level products such as camcorders, CD and cassette players to professional level recorders, mixing consoles and signal processors
- Standard stereo XLR and RCA connectors, dedicated stereo level control knobs for inputs and outputs
- Double duty functionality as balanced inline level control, achieved by patching RCA inputs and outputs together
UPC: 675889000153 In the Box Rolls MB15b Promatch 2-Way Stereo Converter Power Supply Owner's Manual 1-Year Limited Warranty User Manual PDF 123.8kbrfcavxuzzdycuxycfdde Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls MB15b Promatch 2-Way Stereo Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls MB15b Specs | Maximum Input Level | Balanced: +22 dB
Unbalanced: +22 dB | | Maximum Output Level | Balanced: +18 dB
Unbalanced: +12 dB | | Input Connectors | 2 x 3-pin XLR Female, Balanced
2 x RCA Phono, Unbalanced | | Output Connectors | 2 x 3-pin XLR Male, Balanced
2 x RCA Phono, Unbalanced | | Input Impedance | XLR: 10 kOhms
RCA: 100 kOhms | | Output Impedance | XLR: 100 Ohms, Balanced
RCA: 100 Ohms | | Dimensions | 4.15" x 2.5 x 1.55" (105 x 64 x 39mm) | | Weight | 1 lbs (454g) | | | | Package Weight | 1.145 lb | | Box Dimensions (LxWxH) | 7.2 x 4.8 x 2.6" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
