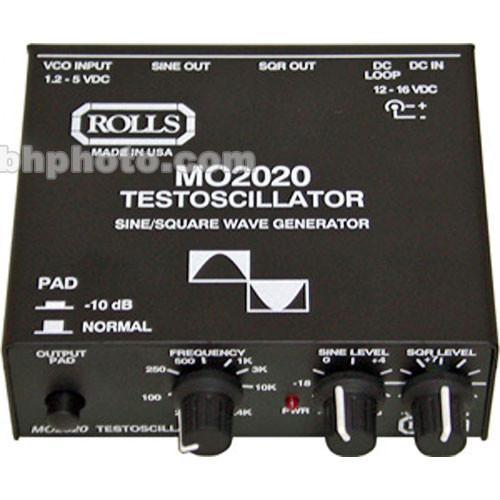

Product description The Rolls MO2020 Test Tone Generator provides both sine and square wave outputs on two 1/4 in. jacks. The units frequency range is variable from 20Hz to 24kHz and accepts a 1.2 to 5 volt DC VCO input on a 1/4 in. jack for external frequency control. A 10dB Output Pad is also provided to allow for -10dB referencing. - Generates both sine and square wave test tones
- Tests frequencies from 20Hz to 24kHz
- External frequency control made available via a 1/4 in. VCO input jack
- Independent level controls for both sine and square waves
UPC: 675889202007 In the Box Rolls MO2020 Testoscillator Generates Sine and Square Waves at Variable Frequency Range from 20Hz to 24kHz 1 Year Warranty DC Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls MO2020 Testoscillator Generates Sine and Square Waves at Variable Frequency Range from 20Hz to 24kHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls MO2020 Specs | Frequency Range | 20Hz to 24kHz | | Input Connections | 1/4 in. Voltage Control Oscillator | | Output Connections | 1/4 in. unbalanced (sine wave)
1/4 in. unbalanced (square wave) | | Input Impedance | Not applicable | | Output Impedance | 100 Ohms | | Output Level | 11dB (sine)
14dB (square) | | THD & Noise | <1% (sine) | | Power and Battery | 12-16V DC 50mA | | Dimensions | 4.25 x 3.75 1.75 in. | | Weight | Not specified by manufacturer | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 6.9 x 4.7 x 2.5" |
