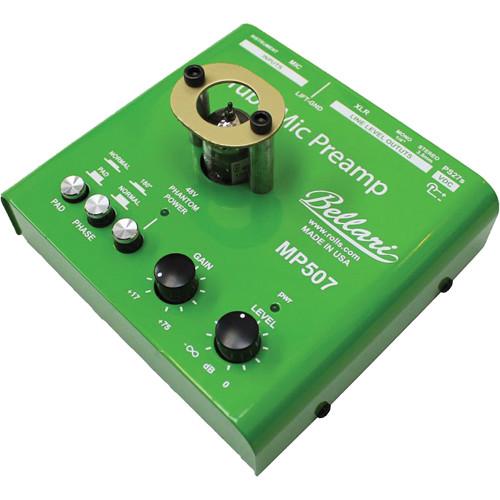

User Manual for Rolls MP507 - Tube Microphone Preamplifier Click to enlarge the picture
Contents of the user manual for the Rolls MP507 - Tube Microphone Preamplifier
- Product category: Microphone Preamps Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Microphone Preamps
|
User manual for the Rolls MP507 - Tube Microphone Preamplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The Rolls MP507 - Tube Microphone Preamplifier utilizes a 12ax7 vacuum tube and a MU-Metal audio transformer to decrease noise and add warmth to this single channel microphone or instrument preamplifier. It is suitable for live and studio applications that require the sonic character that only vacuum tube designs can provide. The preamplifier features a high speed self regulated switching power supply to generate the required 230V of usable plate voltage by the 12ax7 vacuum tube.
The unit includes a -37 dB pad, a 180° polarity reversal switch, and a switch for applying +48V phantom power while delivering a frequency response of 20 to 25,000 Hz with a THD of 0.15% and a S/N ratio of greater than 110 dB. UPC: 675889050707 In the Box Rolls MP507 - Tube Microphone Preamplifier PS27s 15 VDC 100-240 VAC Wall Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls MP507 - Tube Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls MP507 Specs | Inputs | 1x XLR-3F balanced microphone
1x 1/4"TS unbalanced instrument | | Outputs | 1x XLR-3M balanced line level
1x 1/4" TS unbalanced line level
1x 1/8" stereo (left, right, and ground) | | Input Impedances | XLR-3F: 600 Ω (Transformer balanced)
1/4": 1 mΩ | | Output Impedances | XLR-3M: 100 Ω
1/4": 100 Ω | | Phase | 180° | | Phantom Power | +48 VDC | | Pad | -37 dB | | Ground Lift | Yes | | THD | 0.15% | | S/N Ratio | > 110 dB | | Maximum Input Level | -30 dB mic, +4 line XLR, -10 dB 1/4" | | Maximum Output Level | +16 dB XLR, +1- dB 1/4" | | Frequency Response | 20 to 25,000 Hz ±3 dB | | Power | 15 VDC | | Power Requirements | 100 to 240 VAC | | Dimensions | 3.0 x 5.5 x 6.0" (7.6 x 14 x 15 cm) | | Weight | 1.6 lb (0.73 kg) |
