User Manual for Rolls MS20C Splitter Combiner Isolator Click to enlarge the picture
Contents of the user manual for the Rolls MS20C Splitter Combiner Isolator
- Product category: Splitters & Combiners Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Splitters & Combiners
 |
User manual for the Rolls MS20C Splitter Combiner Isolator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|

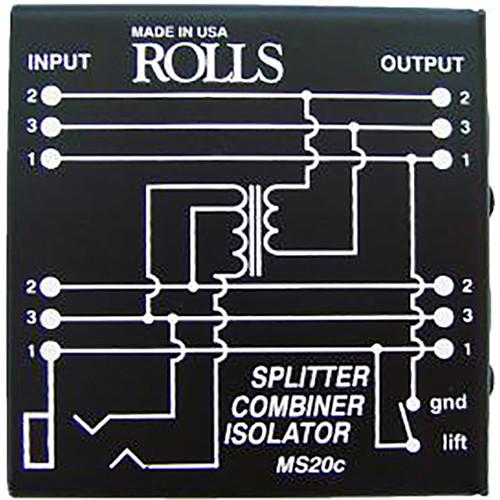

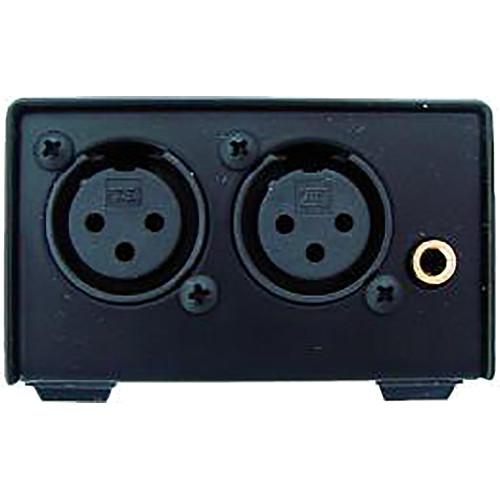

Product description Mix and match your XLR microphone signals with the dynamic MS20C Splitter/Combiner/Isolator from Rolls. This unique sound system accessory allows users to split a single balanced XLR signal into two isolated signals, combine two balanced XLR signals together into a single, or isolate a balanced line to eliminate noise. The functional design includes a 1/8" jack that can be used as a balanced input to XLR jacks, and a ground lift switch. - Splitter
- A single balanced XLR signal can be split into two isolated signals.
- Combiner
- Two balanced XLR signals can be combined into a single.
- Isolator
- A single balanced line can be isolated to eliminate buzzes and hums.

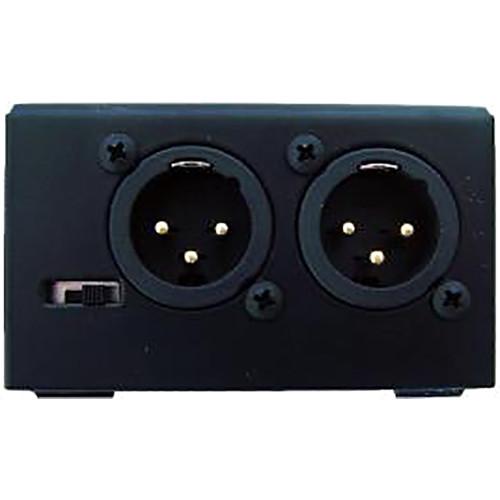

- Ground Lift Switch
- Switch when in "GROUND" position, indicates that pins 1 of the INPUT and OUTPUT jacks are connected. In the "LIFT" position, the ground pins have been separated.
UPC: 675889000207 In the Box Rolls MS20C Splitter/Combiner/Isolator 1-Year Warranty User Manual PDF 659.9kbtcuxqtwuyyyqdyd Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls MS20C Splitter Combiner Isolator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls MS20C Specs | Frequency Response | 35 Hz - 20 kHz | | Input Impedance | XLR: 600; 1/8" (3.5mm): 10K | | Output Impedance | Not Specified by Manufacturer | | Operating Level | +26 dBm | | Dimensions (LxWxH) | 3 x 2.3 x 1.2" (7.6 x 5.8 x 3 cm) | | Weight | 0.6 lbs (0.2 kg) | | | | Package Weight | 0.64 lb | | Box Dimensions (LxWxH) | 8.25 x 5.15 x 2.4" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
