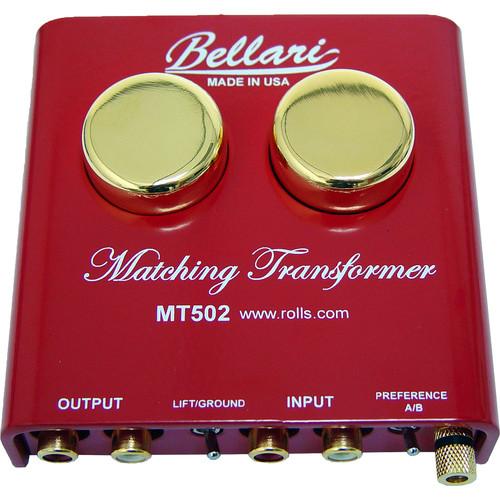

User Manual for Rolls MT502 Bellari Step-Up Transformer for Turntables with Moving Coil Cartridges Click to enlarge the picture
Contents of the user manual for the Rolls MT502 Bellari Step-Up Transformer for
- Product category: Level Matching Transformers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Level Matching Transformers
|
User manual for the Rolls MT502 Bellari Step-Up Transformer for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The Rolls Bellari MT502 is a step-up transformer designed to raise the low-level of moving-coil cartridges in turntables without increasing unwated noise. The result is a signal strength compatible with moving-magnet phono preamps.
Many phono preamps only boost the output gain of such turntables; this can cause noise, distortion, and sound quality issues all around. The MT502, on the other hand, effectively solves this issue, restoring fidelity to your moving coil/moving magnet setup.
The MT502 offers a Preference A/B Switch that sets the impedance level. Choose the position that provides you with a more pleasing sound. You'll also note the Ground Post for connection of your turntable's ground wire, and the necessary RCA inputs and outputs to make the audio connections. As is the case with all of Rolls' Bellari line, this product was built in the United States. - I/O
- The MT502 provides a pair stereo RCA inputs for your turntable, and a pair of RCA outputs for your phono preamp.
- Lift/Ground Switch
- This switch connects/disconnects the ground connection between the input and output connects, and may be useful for reducing ground loops.
- Preference A/B Switch
- This switch sets the input impedance level for your cartridge. Preference A is the higher impedance level, and Preference B is a lower impedance level. It is best to set the A/B PREFERENCE switch to the position that sounds the best.
- Ground Post
- This is for connection of your turntable's ground wire.
UPC: 675889050202 In the Box Rolls MT502 Bellari Step-Up Transformer for Turntables with Moving Coil Cartridges Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls MT502 Bellari Step-Up Transformer for Turntables with Moving Coil Cartridges in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls MT502 Specs | Connections | 2 x RCA inputs (stereo pair)
2 x RCA outputs (stereo pair) | | Impedance | Input: 50 to 100 Ohms | | THD | 0.02% at 1 kHz | | Dimensions (W x H x D) | 4.0 x 1.1 x 4.0" / 101.6 x 27.9 x 101.6 mm | | Weight | 2.0 lb / 0.9 kg | | | | Package Weight | 1.945 lb | | Box Dimensions (LxWxH) | 14.4 x 8.8 x 3.9" |
