User Manual for Rolls MX122 MiniMix Pro Mic Source Mixer Click to enlarge the picture
Contents of the user manual for the Rolls MX122 MiniMix Pro Mic Source
- Product category: Analog Utility Mixers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Analog Utility Mixers
|
User manual for the Rolls MX122 MiniMix Pro Mic Source contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|

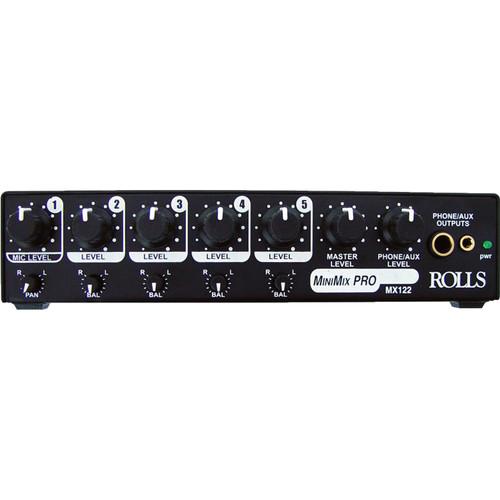

Product description The Rolls MX122 MiniMix Pro is a compact and reliable five-channel audio mixer. It's suitable for musicians who need to mix stereo keyboards, sound modules, and other line-level sources with a single microphone. Channel 1 is a dedicated microphone input with a 3-pin XLR connector and a mic trim pot. Channels 2 through 5 feature 1/4" inputs divided into stereo pairs, though they can also accept mono signals.Two 1/4" outputs are provided on the rear panel for stereo connections, but you can also monitor with headphones using the front panel jacks. For this purpose, a 1/4" and a 3.5mm output are supplied. Master output knobs are supplied for overall level and phone/aux level. With this mixer, you can combine a microphone signal with four stereo or mono signals, with level and pan controls over each channel. A power supply is included. - Microphone Input
- Channel 1 features a XLR microphone input with 12VDC phantom power, selectable via the phantom power jumper on the rear of the unit.
- Stereo Line Inputs
- Channels 2 through 5 utilize stereo 1/4" phone inputs, and the right input is used for mono signals.
- Flexible Outputs
- The main outputs are featured on stereo 1/4" phone connections. Dual headphone outputs feature 1/4" phone and 3.5mm stereo connections for monitoring. The secondary headphone output may be used as an auxiliary stereo output with level control.
- Level and Pan Controls
- All input channels feature level and pan controls (stereo controls for 1/4" input sections).
UPC: 675889012200 In the Box Rolls MX122 MiniMix Pro Mic/Source Mixer 12 VDC Power Supply Limited-1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls MX122 MiniMix Pro Mic Source Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls MX122 Specs | Input Impedance | Line: 10 kOhms, unbalanced
Mic: 10 kOhms, balanced | | Output Impedance | 50 Ohms, balanced | | Max Input | Line: +24 dBV
Microphone: -8 dBV | | Phase Shift | < 10°, 20 Hz to 20 kHz | | Connectors | 8 x 1/4" TS inputs, phone type
1 x XLR input
3 x 1/4" TRS outputs, phone type
1 x 1/8" / 3.5 mm headphone output | | Max Gain | Line: 26 dB
Aux: 26 dB
Mic: 80 dB | | CMMR | Mic: 95 dB | | Phantom Power | +12 VDC | | Signal-to-Noise Ratio | > 90 dB | | Total Harmonic Distortion (THD) | < 0.004% | | Power Requirements | 12 VDC External Power Supply | | Dimensions | 8.4" x 1.7" x 5" / 21.3 x 4.3 x 13 cm | | Weight | 2.5 lb / 1.1 kg | | | | Package Weight | 2.73 lb | | Box Dimensions (LxWxH) | 14.0 x 9.15 x 4.0" |
