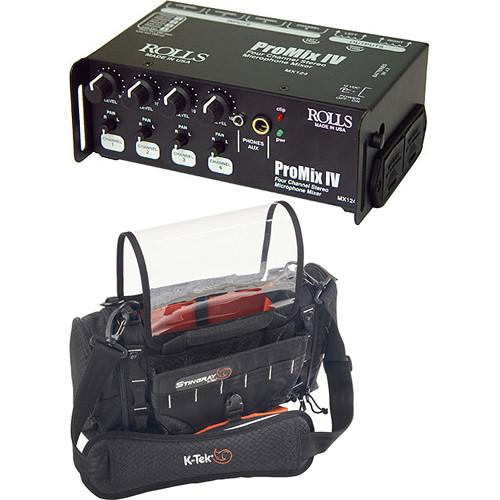

User Manual for Rolls MX124 Portable 4-Channel Stereo Mixer & Carry Bag Kit

• Product category: Field Mixers Rolls
• Brand: Rolls
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rolls Field Mixers

Product description

• Rolls MX124 Portable 4-Channel Stereo Mixer The Rolls MX124 ProMix IV is a lightweight, compact, four-channel microphone mixer featuring 3-pin XLR inputs and transformer-balanced XLR stereo (L/R) outputs. Located on the side of the unit are four 18 VDC phantom power switches and four low-cut filter switches. Individually switchable phantom power supplies allows the flexibility to use dynamic and condenser microphone simultaneously and low-cut filter switches eliminate hum, rumble and noise associated with wind and proximity effect. The front panel reveals level and pan controls for each channel. The 1/4" (6.3mm) TRS phone and 1/8" (3.5mm) mini outputs can be used to feed headphones or as alternative stereo outputs. The mixer is completely portable, operating on two 9V alkaline batteries, making it a convenient utility in ENG/EFP, video, sound reinforcement and public address applications. Alternately, it can be powered by an included adapter.
  4 Microphone Channels
  • The MX124 ProMix IV features four 3-pin XLR microphone inputs for perfect integration with professional-grade microphones.
  Balanced Outputs
  • The output section features stereo (L/R) transformer-balanced XLR male outputs, providing maximum gain while minimizing maintaining a low-noise floor.
  Individually Switched Phantom Power
  • The unit supplies 18 VDC phantom power. Four phantom power switches are located on the side panel. This allows phantom to be supplied to only the channels that require it.
  Low-Cut Filter
  • Four Low-Cut filter switches are located on the side panel, allowing individual control over noise caused by wind and proximity effect.
  Alternate / Headphone Outputs
  • The front panel features 1/4" (6.3mm) TRS phone and 1/8" (3.5mm) mini outputs that are used to feed headphones, or as alternate stereo outputs.
  Compact & Portable
  • The unit features an ultra portable design and operates on two 9V alkaline batteries or via the included 15 VDC power supply, making it a convenient utility on the road, in the studio, home or business.
  UPC: 675889012408
• K-Tek Stingray Junior - Audio Mixer Recorder Bag The K-Tek Stingray Junior is an audio mixer recorder bag designed for small rigs with a couple of wireless receivers and transmitters. Like its larger brethren, the Stingray Junior offers a dual full vertical frame that allows the bag to better stand on its own, while protecting equipment and providing full access to the sides and bottom of the mixer recorder to access connectors and media. The large trap door on the bottom and zippered side access panels complement the accessibility offered by the frame and further ease setup, cabling, and battery swaps.Oversized side pockets offer plenty of room to store NP batteries, while Hook-and-Loop access allows cabling from side pockets into the main compartment. A separate front compartment can be expanded or closed tight and is protected by a rigid front panel. Various cable pass-through locations and smart storage points allow for versatility when using various equipment choices and recording environments. Web loops, Molle straps, and D-Rings offer plenty of rigging points for additional accessories and allow the Stingray Jr. to be connected by harnesses and waist-belts. The built-in kickstand allows the bag to sit at an angle when placed on a tabletop or when resting on the ground. The Stingray Jr. ships with an adjustable shelf divider, a shoulder strap, a clear shield, and a stealth cover.
  General Features
  • • Rigid internal vertical frame for strength and stability
    • Side Pockets large enough to hold NP batteries with cup adapters
    • Bottom trap door for fast access and convenience
    • Built in kick-stand for table mixing
    • Collapsible front pocket with Molle Straps and hard protective front
    • Comes with Clear Shield, Stealth Cover and Shoulder Strap
    • Perfect companion for the optional K-Tek Waist belt and is fully compatible with the optional Stingray Harness.
  Device Compatibility
  • • Audio Developments AD162
    • Fostex FM-3
    • Fostex FM-4
    • Fostex FR-2LE
    • Kamesan KS-T2000
    • PSC DVPROMIX3
    • PSC Alphamix
    • Rolls MX124
    • Shure FP33
    • Sonosax SX-R4
    • Sonosax SX-R4+
    • SoundDevices MixPre-10M
    • SoundDevices MixPre-10T
    • Sound Devices 633
    • Sound Devices 744t
    • Sound Devices 302
    • Tascam DR-680mkII
    • Wendt X3
    • Zaxcom Maxx
    • Zoom F8
    • Zoom F4
  UPC: 649906207146

• MX124 Portable 4-Channel Stereo Mixer
• PS27s 15 VDC 100-240 VAC Wall Power Adapter
• Limited 1-Year Warranty

• K-Tek - Stingray Junior - Audio Mixer Recorder Bag wyeafdufzdzdssasavstvfwwrbsxc

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rolls MX124 Portable 4-Channel Stereo Mixer

  Input Connections	4x 3-pin XLR female
  Output Connectors	2x 3-pin XLR male 1x 1/8" (3.5 mm) aux output 1x 1/4" (6.3 mm) headphone output
  Max Input/Output Gain	+55 dB Input Impedance: 600 Ohms Output Impedance: XLR 500 Ohms
  Signal-to-Noise Ratio	84 dB
  Phantom Power	+18 VDC
  AC Power Requirements	2x 9 V Alkaline Batteries Current Draw: 30 mA
  Dimensions	6.3 x 2.3 x 3.7" (160 x 58.41 x 93.98 mm) (WxHxD)
  Weight	1.5 lb (680.38 g)

  Box Dimensions (LxWxH)	9.95 x 7.4 x 4.35"

• K-Tek Stingray Junior - Audio Mixer Recorder Bag

  Dimensions (L x W x H)	Internal: 8.7 x 3.6 x 7.9" / 22.0 x 9.0 x 20.0 cm External: 12.6 x 6.3 x 9.1" / 32.0 x 16.0 x 23.0 cm
  Weight	2.9 lb / 1.3 kg

  Box Dimensions (LxWxH)	13.5 x 10.3 x 7.9"
