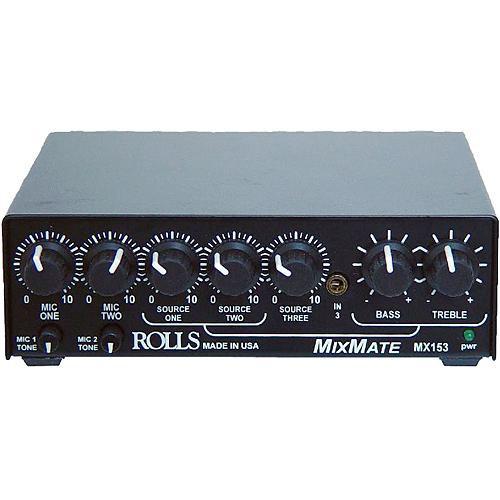

User Manual for Rolls MX153 MixMate Mic Line Mixer Click to enlarge the picture
Contents of the user manual for the Rolls MX153 MixMate Mic Line Mixer
- Product category: Analog Utility Mixers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Analog Utility Mixers
|
User manual for the Rolls MX153 MixMate Mic Line Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The Rolls MX153 MixMate is a compact two microphone and three stereo source mixer designed mainly for installation purposes. It's ideal for small restaurants, clubs, churches, schools, or any application where two paging or announcing microphones need to be mixed with stereo sources such as AM/FM tuners, CD players, jukeboxes, and video players. Priority talk over is provided on Mic Channel 1 for paging, and on Source Channel 3 for a jukebox, telephone, etc. - Two Microphone inputs with phantom power
- Tone controls for each Mic input
- Three stereo Source inputs
- Bass and Treble controls on Sources 1 and 2
- Priority ducking on Mic 1 and Source 3
- Switchable Mono/Stereo unbalanced output
UPC: 675889015300 In the Box Rolls MX153 MixMate Mic/Line Mixer PS27 12 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls MX153 MixMate Mic Line Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls MX153 Specs | Input Impedance | Mic: 600 Ohms, XLR balanced
Source: 22 kOhms RCA, 1/8" (3.5 mm) mini | | Max Input | Mic: -14 dBV, mic level max
Source: 24 dBV | | Input Connectors | 2 x XLR, Mic 1, 2
3 x Stereo RCA, Source 1, 2, 3
1 x Stereo 1/8" (3.5 mm), Linked to Source 3 | | Output Connectors | 1 x Stereo RCA | | Phantom Power | +12 VDC | | Maximum Gain | Mic: 60 dB
Source: 26 dB | | Tone Controls | +/-12 dB 100 Hz bass
+/-12 dB 11 kHz treble | | Noise Floor | -80 dB | | S/N Ratio | 96 dB | | Attenuation | 60 dB | | Power | 12 VDC (Rolls PS27) | | Dimensions | 6.5 x 1.5 x 5.0" (165.1 x 38.1 x 127.0 mm) | | Weight | 2.00 lb (0.91 kg) | | | | Package Weight | 2.57 lb | | Box Dimensions (LxWxH) | 14.0 x 8.95 x 4.05" |
