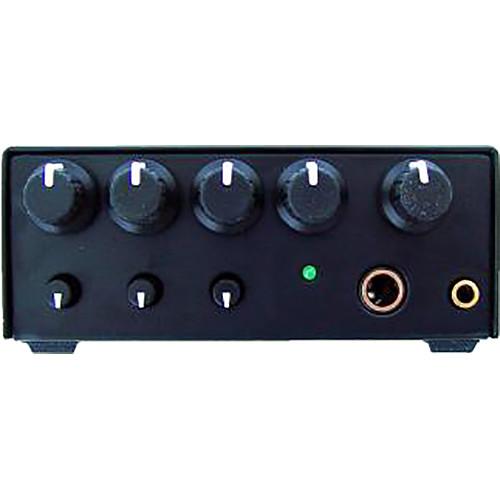

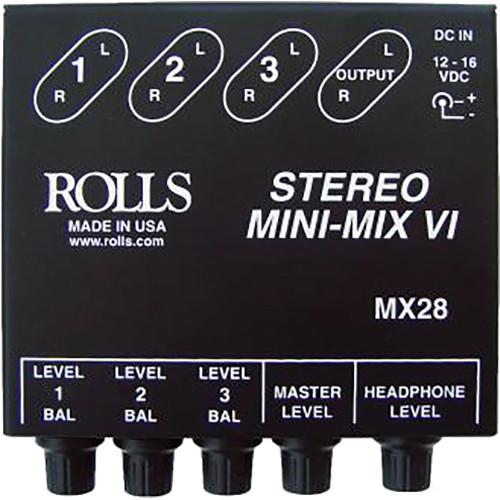

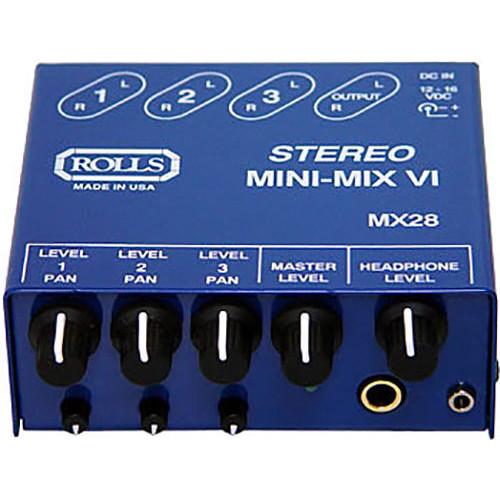

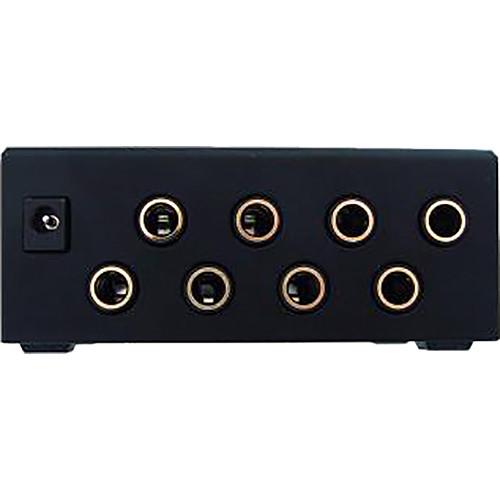

User Manual for Rolls MX28 Mini-Mix VI Compact Stereo Line Mixer Click to enlarge the picture
Contents of the user manual for the Rolls MX28 Mini-Mix VI Compact Stereo
- Product category: Analog Utility Mixers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Analog Utility Mixers
|
User manual for the Rolls MX28 Mini-Mix VI Compact Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The MX28 Mini-Mix VI by Rolls is a convenient 3-channel line mixer featuring stereo paired (L/R) 1/4" (6.3mm) phone inputs on each channel. All 3 channels feature Volume and Pan controls. A stereo paired (L/R) main out and 2 headphone outputs via 1/4" (6.3mm) and 1/8" (3.5mm) connectors are also featured. The compact, lightweight design makes the MX28 perfect for road use. - Stereo Paired Inputs
- Three stereo paired (L/R) 1/4" phone inputs make the MX28 an ideal solution for mixing signals from keyboards or consumer audio devices such as cassette decks, CD players, etc.
- Dual Headphone Outputs
- Separate 1/4" (6.3mm) and 1/8" (3.5mm) stereo headphone outputs provide flexible monitoring for both engineer and talent
- Master and Headphone Level Controls
- Mater and Headphone level controls adjust overall channel and headphone volume levels
- Volume and Pan Controls
- Individual Volume and Pan controls on each input channel adjust output level and left/right stereo placement of audio signal
- Stereo Outputs
- Stereo paired 1/4" phone inputs send a stereo signal to recorders, additional mixers, or PA
UPC: 675889000283 In the Box Rolls MX28 Mini-Mix VI Compact Stereo Line Mixer AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls MX28 Mini-Mix VI Compact Stereo Line Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls MX28 Specs Input Connections | 3 x Stereo paired (L/R) 1/4" (6.3 mm) unbalanced | Output Connectors | 1 x Stereo paired (L/R) 1/4" (6.3 mm) unbalanced | Headphone Outputs | 1 x 1/4" (6.3 mm) 1 x 1/8" (3.5 mm) | Input Impedance | 10 kOhms | Output Impedance | 100 ohms | Maximum Gain | +27 dBV | Maximum Input Level | +30 dBV | Maximum Output Level | +13 dB | Frequency Response | 20 Hz to 20 kHz +/-1 dB | THD & Noise | < .005% | Power | 12 VDC 150 mA adapter (center negative) | Dimensions (W × H × D) | 4.25 x 1.75 x 4.5" (107.95 x 44.45 x 114.3 mm) | Weight | 1.2 lb (0.49 kg) | | Package Weight | 1.3 lb | Box Dimensions (LxWxH) | 6.9 x 4.7 x 2.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
