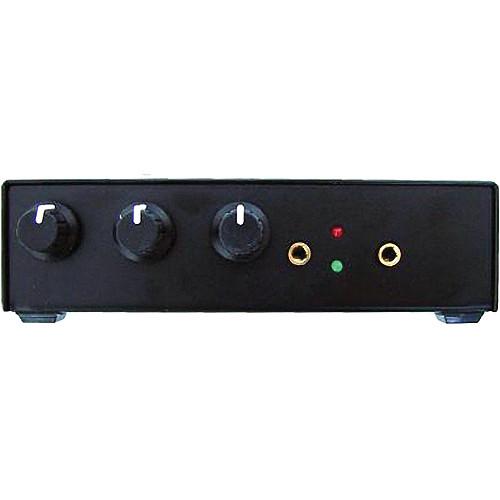

User Manual for Rolls MX310 MorMics 3-Channel Mic Mixer Combiner Click to enlarge the picture
Contents of the user manual for the Rolls MX310 MorMics 3-Channel Mic Mixer
- Product category: Analog Utility Mixers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Analog Utility Mixers
 |
User manual for the Rolls MX310 MorMics 3-Channel Mic Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|

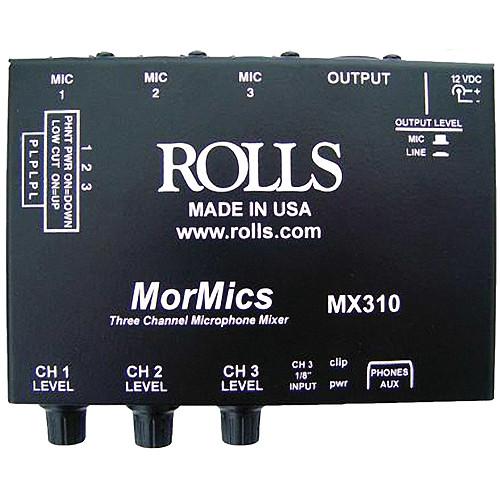

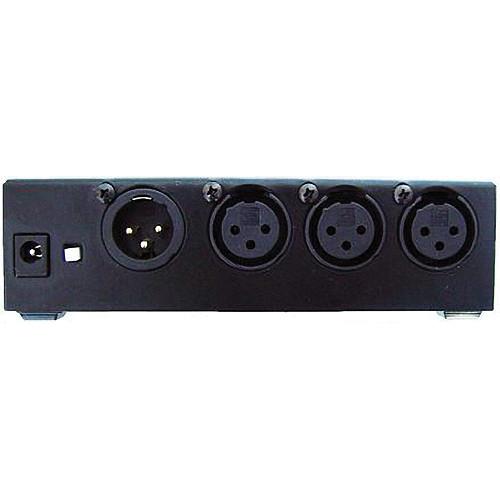

Product description The Rolls MX310 MorMics 3-Channel Mic Mixer/Combiner is designed to add up to 3 mics to a single microphone input. The unit has a durable metal chassis with 3 x XLR mono mic inputs. Each input has its own level control, switchable phantom power, and a low-cut filter. These are selectable by means of DIP switches mounted on the side. There is also a mic/line switchable XLR output for connection to a variety of devices.
In addition to its XLR I/O, the mixer features a 3.5mm stereo aux input, allowing you to connect a CD player, MP3 player, AM/FM tuner, and more. A 3.5mm stereo output provides convenient monitoring via headphones, compact speakers, etc. The mixer has bottom mounts for permanent installations, and the required power supply is included for operation. - 3 x XLR mic inputs, each with its own level control, switchable phantom power, and a switchable low-cut filter
- Output switchable between mic and line
- Stereo 3.5mm aux input for CD players, MP3 players, AM/FM tuner, and more
- 3.5mm stereo output for monitoring via headphones, compact speakers, and more
- Bottom mounts for permanent installations
UPC: 675889031003 In the Box Rolls MX310 MorMics 3-Channel Mic Mixer/Combiner Installation Mounts Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls MX310 MorMics 3-Channel Mic Mixer Combiner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls MX310 Specs | Connectors | 3 x XLR mic inputs
1 x XLR mic/line Output
1 x 3.5mm input
1 x 3.5mm output | | Controls | 3 x level controls
6 x DIP switches (phantom/low cut)
1 x Mic/line output selector | | Indicators | 1 x Green Power LED
1 x Red Clip LED | | Frequency Response | 20 Hz to 20 kHz | | Input Impedance | 600 Ohms | | Output Impedance | Mic: 600 Ohms
Line: 200 Ohms | | Total Harmonic Distortion (THD) | 0.05% Typical | | Voltage Gain | Mic: 10 dB
Line: 50 dB | | Phantom Power | +12 VDC | | Power Supply Voltage | 16 VDC, maximum (power supply included) | | Dimensions (WxDxH) | 5.3 x 3.8 x 1.5" / 133 x 95 x 38 mm | | Weight | 1 lb / 0.5 kg | | | | Package Weight | 1.895 lb | | Box Dimensions (LxWxH) | 13.95 x 8.7 x 3.95" |
