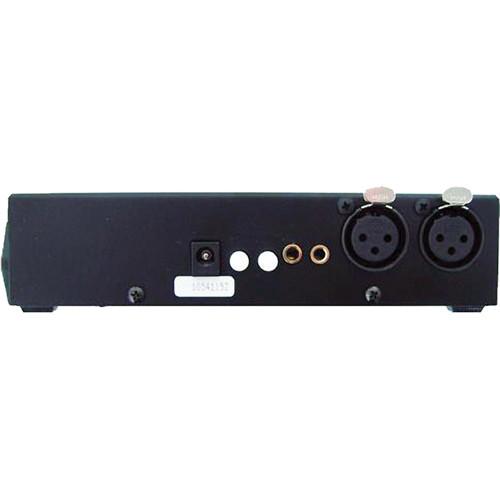

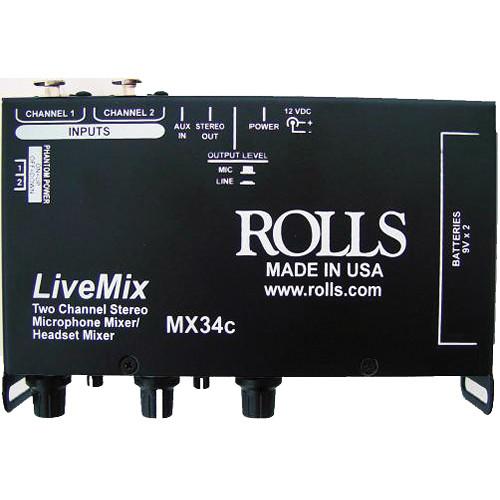

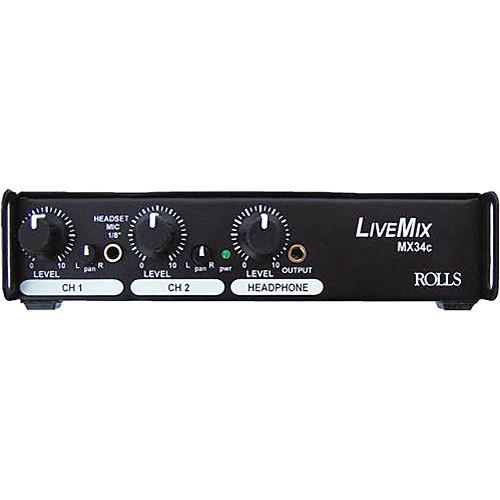

User Manual for Rolls MX34c LiveMix 2 Channel Microphone Mixer Click to enlarge the picture
Contents of the user manual for the Rolls MX34c LiveMix 2 Channel Microphone
- Product category: Analog Utility Mixers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Analog Utility Mixers
 |
User manual for the Rolls MX34c LiveMix 2 Channel Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The two channel MX34C LiveMix by Rolls is a portable microphone mixer suitable for mixing two microphones and any stereo line-level source such as an iPod, CD player, or karaoke machine. The level and pan knobs on each phantom powered XLR input allows for sufficient control over volume and placement of audio as it's heard through a connected pair of speakers. Also, separate headphone circuitry makes monitoring the mix easy without ever affecting the overall main output. Designed originally with video camera operators in mind, the MX34C is meant to be used anywhere with its convenient shoulder strap loops and 9 volt battery or AC adapter operation. Easy access front panel controls also make using this mixer a breeze while on the run. For hands free operation use the 3.5 mm mic input with a headset and narrate, host, or MC any event. The MX34C is an excellent choice for the live recording enthusiast in need of a quality, portable mixing solution. - Two Balanced Phantom Powered XLR Mic Inputs
- Separate Level and Pan Control on Each Channel
- AC Adapter or 9V Battery for Portable Operation
- Independent 3.5 mm Stereo Headphone Out Allows Monitoring Without Effecting the Main Output
- 3.5 mm Stereo Main Output
- 3.5 mm Auxiliary Input connects any stereo line-level source such as an iPod, radio, or CD player.
- Mic/Line Level Switch for each XLR Input
UPC: 675889003406 In the Box Rolls MX34c LiveMix 2 Channel Microphone Mixer PS27 12V DC Power Supply Limited One Year Manufacturer Warranty - Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls MX34c LiveMix 2 Channel Microphone Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls MX34C Specs | Input Impedance | Mic: 600 Ohms or greater (XLR) Aux: 47K stereo (3.5 mm) | | Output Impedance | 50 Ohms | | THD & Noise | .02% | | Signal to Noise Ratio | 110 dB | | Frequency Response | 20 Hz to 30 kHz (+0 / -1 dB) | | Maximum Output Level | +14 dB | | Maximum Input Level | +20 dB | | Maximum Gain | +70 dB | | Batteries | Two 9V alkaline | | Current Draw | 30 mA | | Phantom Power | +18 VDC | | Input Connectors | 2 female XLR 3.5 mm | | Output Connectors | 3.5 mm Stereo main out 3.5 mm Headphone | | DC Jack | 5.5 x 2.1 mm tip negative | | Dimensions (WxDxH) | 6.3 x 3.7 x 1.4" (160 x 94 x 35.5 mm) | | Weight | 1 lb (0.45 kg) | | | | Package Weight | 2.12 lb | | Box Dimensions (LxWxH) | 14.0 x 8.75 x 3.95" |
Rating68% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
