User Manual for Rolls MX41b Passive Mixer Click to enlarge the picture
Contents of the user manual for the Rolls MX41b Passive Mixer
- Product category: Analog Utility Mixers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Analog Utility Mixers
|
User manual for the Rolls MX41b Passive Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|

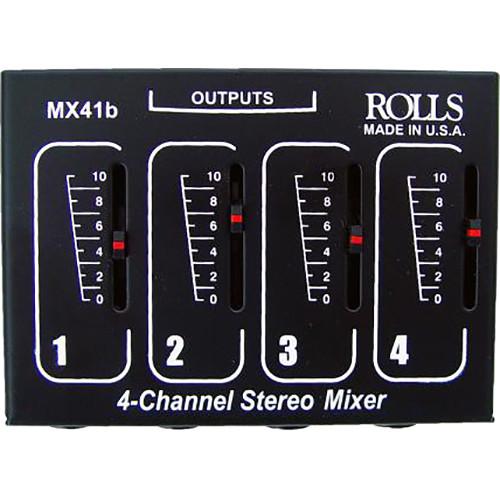

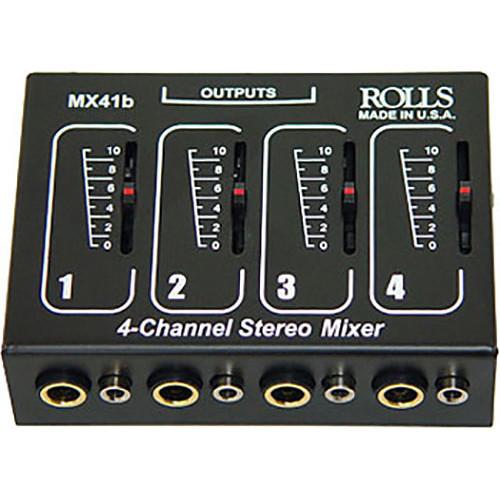

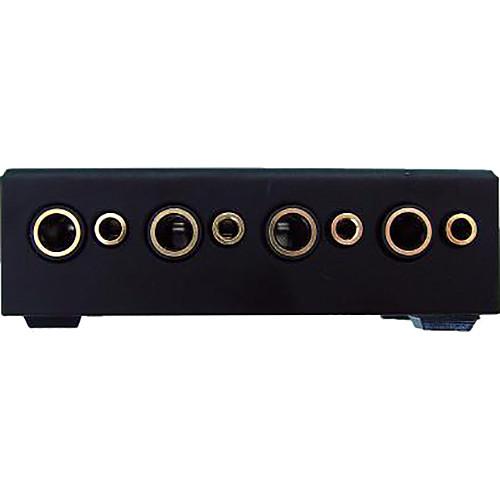

Product description The Rolls MX41b is a utility mixer designed to expand the input capability of a constrained physical device. With this mixer, you can route up to four stereo inputs into one stereo output. On one side of the mix, you'll find 1/4" phone and 3.5mm mini inputs with 100-kOhm level fader controls. The rear features a stereo 1/4" TRS output, as well as a stereo 3.5mm output.
If need be, you can reverse the operation: You can route the output of one stereo device to four stereo sources, so long as all controls are set to maximum. Thus, this unit can be a 1-in, 4-out splitter. The MX41b requires no external power, making it a suitable solution for indoor and field use. - Four input channels with 1/4" and 1/8" connections
- 100-kOhm pot control level on each input
- No external or battery power required
UPC: 675889000412 In the Box Rolls MX41b Passive Mixer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls MX41b Passive Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls MX41B Specs Inputs | 4 x 1/4" TRS inputs, phone type 4 x 3.5 mm TRS inputs, phone type | Output | 1 x 1/4" TRS output, phone type 1 x 3.5 mm TRS output, phone type | Potentiometer Resistance | 100 kOhms | Impedance | Input Impedance: 10 to 47 kOhms Output Impedance: 2.5 to 10 kOhms | Gain | -12 dB, max | Dimensions (WxHxD) | 3.6 x 2.7 x 1.4" / 91.4 x 68.6 x 36.1 mm | Weight | 1.0 lb / 0.5 kg | | Package Weight | 0.65 lb | Box Dimensions (LxWxH) | 7.323 x 4.646 x 2.126" |
