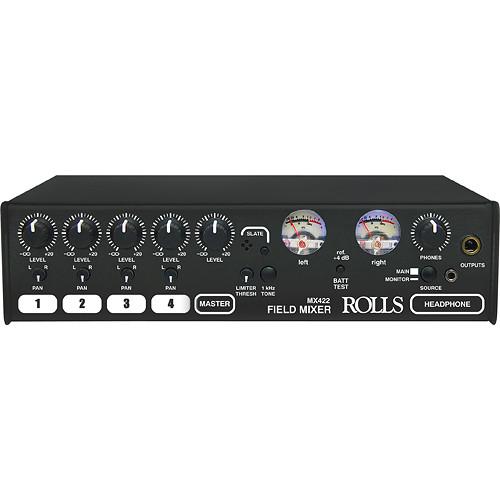

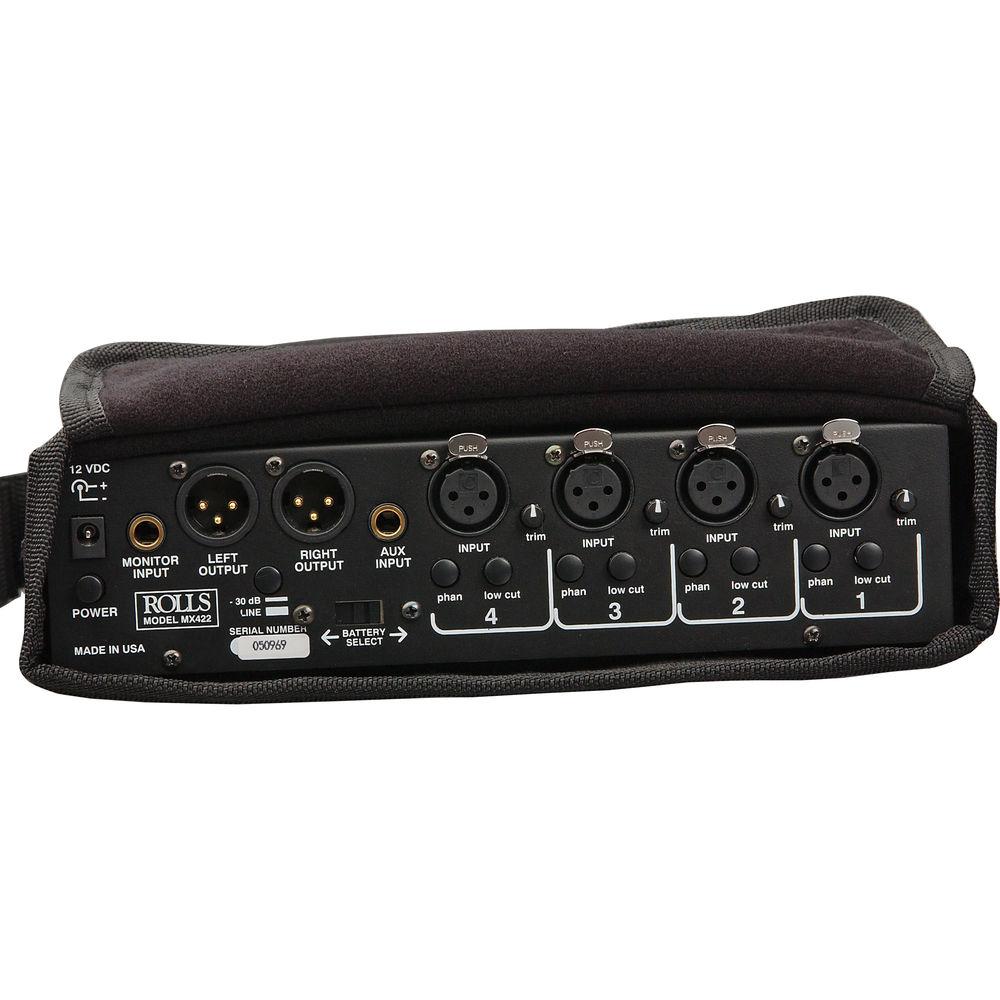

Product description The Rolls MX422 is a 4-channel professional field mixer designed for Electronic Field Production (EFP), Electronic News Gathering (ENG), video, and more. The mixer includes a feature set that meets the demands of the professional field audio engineer while remaining at a modest price point. The MX422 features 4 balanced XLR inputs that are capable of accepting line level or microphone signal. The stereo XLR outputs feature a -30dB pad switch for feeding low impedance inputs. Additional features include a low-cut filter switch for minimizing low frequency noise and a built-in limiter for controlling noise cause by excessive levels. - Four Inputs 2 Outputs
- The MX422 features 4 servo-balanced XLR inputs and 2 transformer-balanced XLR outputs.
- Main and Backup Power
- Main and backup battery compartments are featured to ensure constant power without loss.
- Low Cut Filter
- Switchable 100Hz low cut filters are featured on each input.
- Built In Limiter
- A built-in limiter with variable threshold control, eliminates noise caused by signal overload.
- Calibrated VU Meters
- Calibrated VU meters for accurate level monitoring.
- Switchable 48 Volt Phantom Power
- 48 Volt phantom power is individually switched on all channels.
- Canvas Case Included
- The MX422 conveniently includes a rugged canvas travel case.
UPC: 675889042207 In the Box Rolls MX422 - 4 Channel Professional Field Audio Mixer PS27 Power Supply Canvas Carrying Case 1 Year Warranty User Manual PDF 664.5kbwvzerqrtcvfvcserzzyvbcw Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls MX422 - 4 Channel Professional Field Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls MX422 Specs | Inputs | 4 - Balanced XLR Female | | Output | 2 - L/R Balanced XLR Male | | Monitor/Headphone Out | 1/4" Phone
3.5mm Mini | | ALT I/O | AUX Input: 3.5mm mini
Monitor Input: 3.5mm mini | | Link Input/Output | No | | Impedance | Mic: 10k Ohms XLR Balanced
Source: 22k Ohms RCA | | Gain | +65 dB | | Hum & Noise | 115 dB | | Frequency Response | 20Hz to 30kHz +0, -3dB | | Distortion | Not Specified by Manufacturer | | Metering | Calibrated VU Metering | | Controls | Channel Level
Pan Limiter Threshold
1kHz Tone Headphone Level
Trim (Gain) Phantom power (+48 V)
Low-Cut Filter Battery Select | | Control Voltage Out | No | | Phantom Power | +48 Volt | | Operating Temperature | Not Specified by Manufacturer | | Power | 12VDC / 200mA or 9V Batteries | | Dimensions | 9.5 x 7.25 x 2.375" (24.13 x 18.415 x 6.0325cm)(WxDxH) | | Weight | 4 lbs | | | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 14.0 x 8.8 x 4.1" |
