User Manual for Rolls PA202 20W Class-D Mini Stereo Amplifier Click to enlarge the picture
Contents of the user manual for the Rolls PA202 20W Class-D Mini Stereo
- Product category: Standard Amplifiers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Standard Amplifiers
 |
User manual for the Rolls PA202 20W Class-D Mini Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|

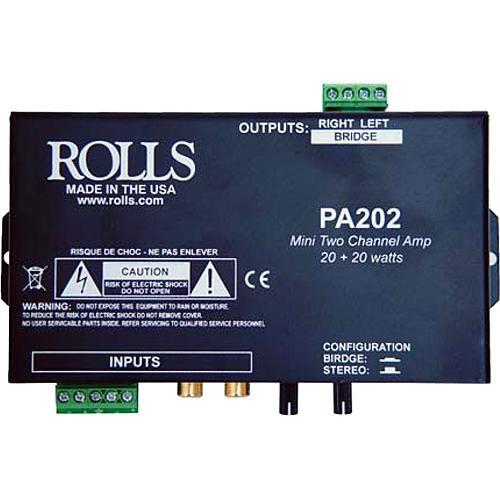

Product description The Rolls PA202 is a compact stereo amplifier designed for general-purpose use. The small size and attached mounting tabs make it easy to install the amplifier in an unobtrusive way. Class-D electronics provide clean, strong audio with minimal distortion.

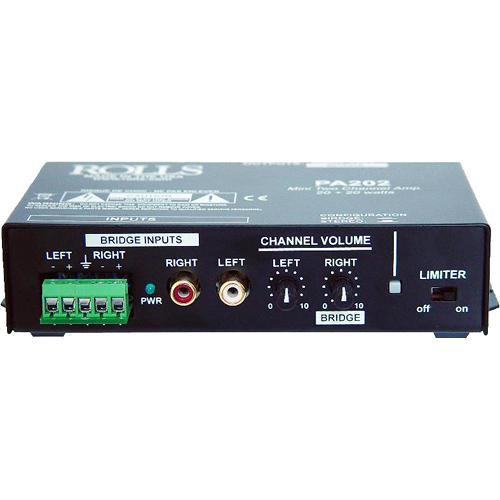

Audio can be input to the amplifier via stereo RCA jacks, screw terminal connectors, or Phoenix-type connectors, while output is via Phoenix-type connectors. The amplifier works with 4 or 8 Ohm loads, and can be switched into Bridge mode for 40W mono operation. Each channel has its own level control knob, and a switchable limiter provides the maximum clean power output without distorting. - Compact all-metal chassis with mounting tabs for discreet installation
- Class-D electronics for high-quality audio
- Audio input via RCA, screw terminal, or Phoenix connectors

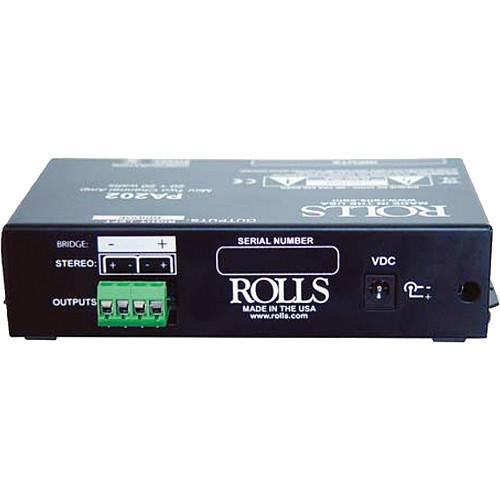

- Audio output via Phoenix connectors
- Can be switched into Bridge mode for 40W mono operation
- Individual level control knobs for each channel
- Switchable optical limiter prevents distortion
- 24VDC power supply included
UPC: 675889020205 In the Box Rolls PA202 20W Class-D Mini Stereo Amplifier Power Supply 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls PA202 20W Class-D Mini Stereo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls PA202 Specs | Power Rating | 20W Per Channel (4 Ohms Stereo)
40W Mono (8 Ohms Bridged) | | Damping Factor | Not Specified by Manufacturer | | Input Sensitivity | 28mV | | Input Impedance | 47 kOhms | | Gain | 32dB | | Frequency Response | 20Hz - 25kHz | | EIN | 3mV | | Total Harmonic Distortion (THD) | 0.05% (Typical) | | Input Connections | 1 x Stereo RCA Input
1 x Stereo Screw Terminal Input
1 x Stereo Phoenix Input
1 x 24VDC Power Input | | Output Connectors | 1 x Stereo/Bridge Phoenix Output | | Controls Front Panel | 2 x Volume Control Knobs
1 x Limiter Switch
1 x Stereo/Bridge Selector Button | | Controls Rear Panel | None | | Indicators | 1 x Power LED | | Power Consumption | Not Specified by Manufacturer | | Power Requirements | 24VDC (Power Supply Included) | | Dimensions (WxDxH) | 6 x 3.5 x 1.5" (152 x 89 x 38mm) | | Weight | 1 lb (0.45kg) | | | | Package Weight | 2.315 lb | | Box Dimensions (LxWxH) | 13.95 x 8.7 x 3.95" |
