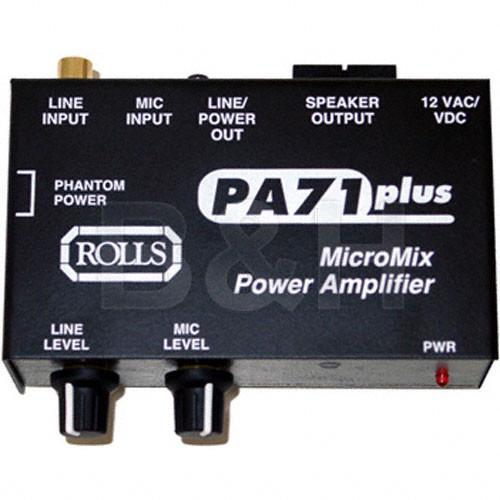

User Manual for Rolls PA71 Plus Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Rolls PA71 Plus Mixer Amplifier
- Product category: Standard Amplifiers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Standard Amplifiers
|
User manual for the Rolls PA71 Plus Mixer Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The Rolls PA71 Plus Mixer Amplifier is a "micro" mono power amplifier which mixes a microphone input signal with a stereo (mixed to mono) line level signal. The combined signal is sent to spring loaded output terminals via a 5 watt (into 8 ohms) power amplifier. The unit is ideal for small room applications where a simple mix of a microphone with a cassette or CD player is needed. The PA71 Plus features a 1/4" TRS line/powered output which can be used for connection to another amplifier, or a standard pair of headphones. For those using a condenser microphone, the unit features switchable 12VDC phantom power on an XLR input. - A desktop power amplifier for powering small speakers in small environments
- Stereo input and mono output of 5 watts into 8 Ohms
- XLR microphone input with switchable 12v phantom power
- Pair of RCA coaxial inputs for connecting a cassette or CD player
- Low noise, efficient operation
UPC: 675889000719 In the Box Rolls PA71 Plus Mixer Amplifier External Power Adapter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls PA71 Plus Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls PA71 Plus Specs | Power Rating | 5 watts into 8 ohms | | Damping Factor | Not applicable | | Input Sensitivity | 28 mV | | Input Impedance | 47k ohm unbalanced | | Gain | 40dB | | Frequency Response | 20Hz to 25kHz | | Signal-to-Noise Ratio | Not Specified by Manufacturer | | Total Harmonic Distortion (THD) | 0.05% typical | | Input Connections | 1 x XLR microphone, 2 x RCA coaxial | | Output Connectors | 1 x Pair spring loaded speaker terminals
1 x 1/4" TRS phono | | Controls Front Panel | 2 x Rotary level controls | | Controls (Rear) | Phantom Power jumper (side panel) | | Indicators | 1 x Power LED | | Cooling | Not applicable | | Power Consumption | Not Specified by Manufacturer | | Dimensions | 4 1/4" x 2 3/8" x 1 1/2" | | Weight | 1 lb (454g) | | Specialties | 12 volts phantom power for use with condenser microphones | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.5 x 4.5 x 2.5" |
