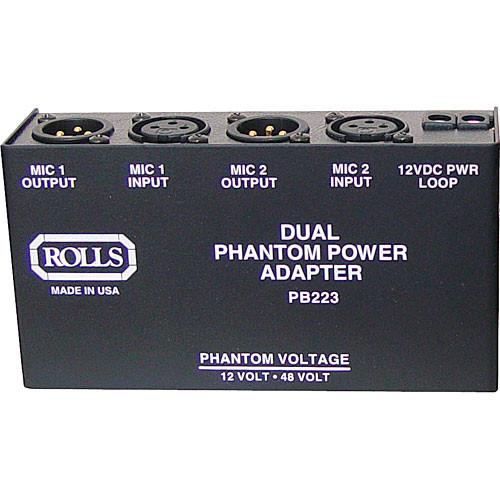

The Rolls PB223 Mic Power II Dual 48V Phantom Power Supply supplies 48 phantom volts for two condenser mics using standard 3-pin XLR cables. The AC adapter is included.

A unique feature is the ability to power multiple PB223s from a single AC power supply by chaining together power connections for each unit. Each PB223 has two DC jacks as well as a 100 kHz switching power supply to prevent audio noise.

Dual inputs and outputs let you feed a single mic, a stereo pair, or any two separate mics. The PB-223 is also available in a single channel version, the PB23.
    Dual 48V Power for Your Mics
  • The PB223 offers two channels of 48V phantom power on standard XLR connectors, so you can power one or two mics. If your audio interface or mixer doesn't feed condenser mics, add the PB223 to bridge the connection.
    Share Power Among Multiple Units
  • Tired of having a mess of separate power cables hogging your power strips? You can drive multiple PB223s from a single AC power supply by chaining them together. Each PB223 has DC in and through jacks so you can connect them in series using 5mm DC cables.
    Low Noise
  • The Dual Phantom Power Supply uses a 100 kHz switching power supply to prevent audio noise from the AC connection.
UPC: 675889002232 In the Box Rolls PB223 Mic Power II Dual 48V Phantom Power Supply
  • Dual Phantom Power Supply
  • AC Power Adapter
  • 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Rolls PB223 Mic Power II Dual 48V Phantom Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Rolls PB223 Specs

    Input Connectors 2 x 3-Pin XLR Female
    Output Connectors 2 x 3-Pin XLR Male
    Adapter No
    Battery No
    Power 2 x 48V Phantom Power Output
    12-18V AC Power Supply (included)
    Dimensions 6.0 x 1.25 x 2.5" (15.24 x 3.18 x 6.35 cm)
    Weight 1.5 lb (0.68 kg)
