User Manual for Rolls PM50s - Personal Monitor Amplifier Click to enlarge the picture
Contents of the user manual for the Rolls PM50s - Personal Monitor Amplifier
- Product category: Headphone Amplifiers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Headphone Amplifiers
 |
User manual for the Rolls PM50s - Personal Monitor Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|

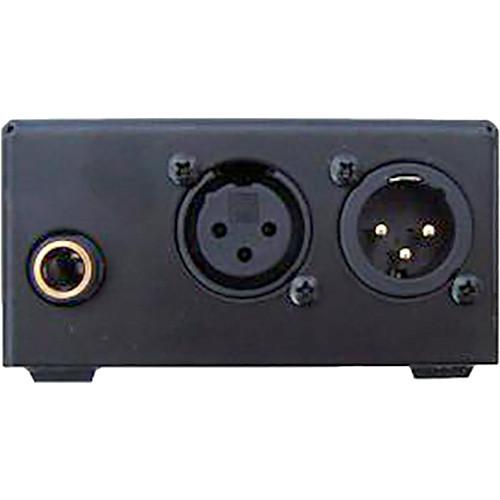

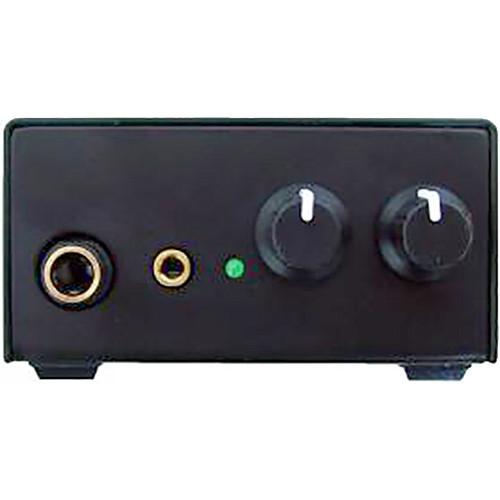

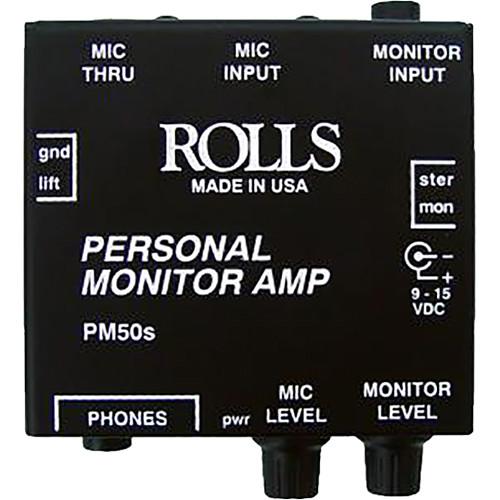

Product description The PM50s is a small footprint device that provides a mix of a stereo line-level signal with a microphone level signal, and outputs the mix to two sets of headphone outputs. The unit features a monitor level control, microphone level control and pass through XLR jack, two headphone output jacks, and a stereo 1/4" TRS monitor input jack. The external power adapter is included.The PM50s is designed for performers who need to monitor their own signal, such as a singer who needs to hear their vocal over a main mix. Other uses include drummers who might need to mix a click track with a monitor signal, or church choir singers who need to monitor their voices over other musicians. - Personal monitor amplifier with microphone pass-through
- Separate volume controls for monitor feed and microphone input
- Pair of headphone outputs
- Small footprint makes the unit easy to use in difficult situations
UPC: 675889005004 In the Box Rolls PM50s - Personal Monitor Amplifier External Power Supply One Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls PM50s - Personal Monitor Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls PM50S Specs | Number of Channels | 2 | | Input Connections | 1 x 1/4" TRS phono Monitor Input
1 x XLR Microphone Input | | Output Connectors | 2 x 1/4" TRS phono Headphone Outputs
1 x XLR Microphone Throughput | | Maximum Output | Not specified by manufacturer | | Function Controls | 2 x Rotary volume | | Frequency Response | 20Hz to 25kHz, +0/-3dB | | Distortion (THD) | Not specified by manufacturer | | Noise | >90dB | | Display | 1 x Power LED | | Dimensions | 2 1/2" x 3" x 1 1/4" | | Weight | 1 lbs | | Specialties | Compact size | | | | Package Weight | 0.925 lb | | Box Dimensions (LxWxH) | 7.15 x 4.85 x 2.55" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
