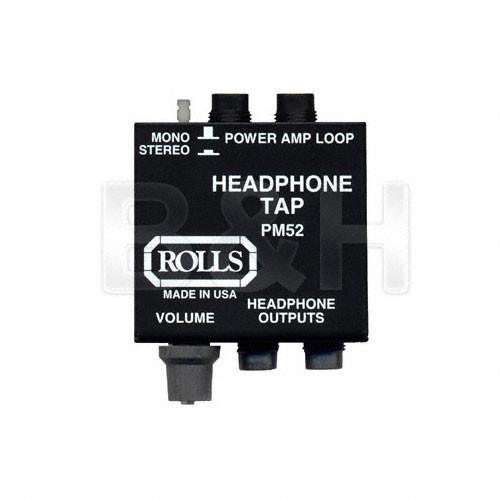

User Manual for Rolls PM52 - Speaker Level Signal Headphone Tap Click to enlarge the picture
Contents of the user manual for the Rolls PM52 - Speaker Level Signal
- Product category: Headphone Amplifiers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Headphone Amplifiers
|
User manual for the Rolls PM52 - Speaker Level Signal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The PM52 Headphone Tap is for connecting headphones to a speaker line. The unit takes a speaker level signal and allows the user to "tap in" with a pair of headphones. It's just like using a stage monitor, but using headphones instead of a heavy speaker. The 1/4" TRS phono Mono/Stereo loop jacks are for cascading more boxes in series, or connecting to a monitor speaker. There are two headphone jacks and a volume control. The PM52 uses the speaker line signal for power, so it requires no batteries or external power. - Power amplifier loop through
- No batteries or AC power required
UPC: 675889000528 In the Box Rolls PM52 - Speaker Level Signal Headphone Tap One Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls PM52 - Speaker Level Signal Headphone Tap in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls PM52 Specs | Number of Channels | 2 | | Input Connections | 2 x 1/4" TRS Phone | | Output Connectors | 2 x 1/4" Stereo Phone | | Maximum Output Level | Not Specified by Manufacturer | | Function Controls | 1 x Volume Control
1 x Mono/Stereo Switch | | Frequency Response | 20 Hz - 25 kHz | | THD + N | Not Specified by Manufacturer | | Noise | >90 dB | | Display | No | | Dimensions | 2.25 x 2.5 x 1.25" ((57 x 63 x 32mm) | | Weight | 1 lb (0.45 kg) | | Specialties | Passive Headphone Tap | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 8.25 x 5.15 x 2.5" |
