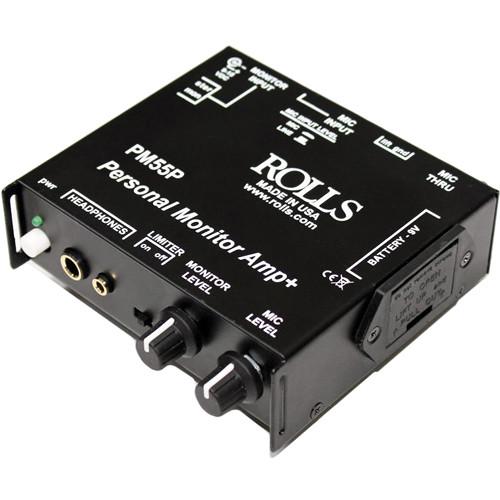

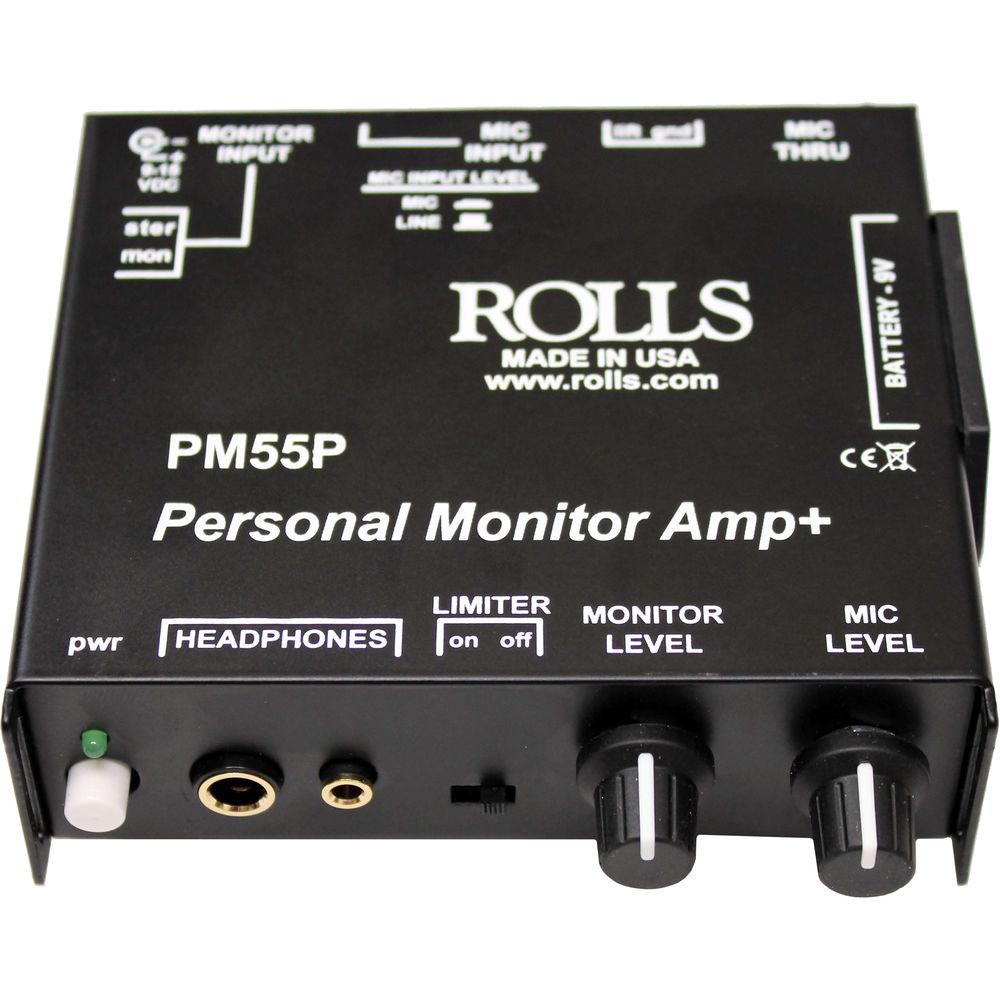

User Manual for Rolls PM55P Stereo Personal Monitor Amplifier with Optical Limiter Click to enlarge the picture
Contents of the user manual for the Rolls PM55P Stereo Personal Monitor Amplifier
- Product category: Accessories Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Accessories
 |
User manual for the Rolls PM55P Stereo Personal Monitor Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The PM55P Stereo Personal Monitor Amplifier with Optical Limiter from Rolls is designed for performers who need to monitor their own signal, such as their vocal, with the main mix.
The unit can also be used by drummers in live sound applications who need to mix a metronome click with a monitor signal. Also, sound engineers can use the PM55P as a quick line tester to troubleshoot audio systems.
The PM55P operates on either one 9 volt battery or the included PS27s power supply. The PM55P also has an included belt clip. -
- Built-in switchable optical limiter
- XLR mic in & pass through
- Ground lift on XLR signal
- Stereo/mono 1/4" monitor input
- 3.5mm and 1/4" headphone outputs
- Powered by one 9 volt battery or the included PS27s power supply
- Belt clip is included
UPC: 675889005516 In the Box Rolls PM55P Stereo Personal Monitor Amplifier with Optical Limiter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls PM55P Stereo Personal Monitor Amplifier with Optical Limiter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls PM55P Specs | Max Input | -20 dB XLR, 40 dB monitor | | Input Impedance | 600 ohm mic, - 22k ohm monitor | | Output Impedance | 10 ohms | | Gain | 20 dB 1/4", 50 dB XLR | | Bandwidth | 50 Hz - 20 kHz | | S/N Ratio | 90 dB | | Limiter Threshold Range | 0 dB | | Current Draw | 70 mW nominal | | Max Output | 100 mW @ 16 ohm | | Power | 9 - 15 VDC | | Size | 4.5 x 4.0 x 1.4" (114.0 x 101.6 x 34.9 mm) | | Weight | 1.00 lb (0.45 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.1 x 4.8 x 2.4" |
