User Manual for Rolls PS16 Personal Monitor Power Center Click to enlarge the picture
Contents of the user manual for the Rolls PS16 Personal Monitor Power Center
- Product category: Headphone Amplifiers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Headphone Amplifiers
 |
User manual for the Rolls PS16 Personal Monitor Power Center contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|

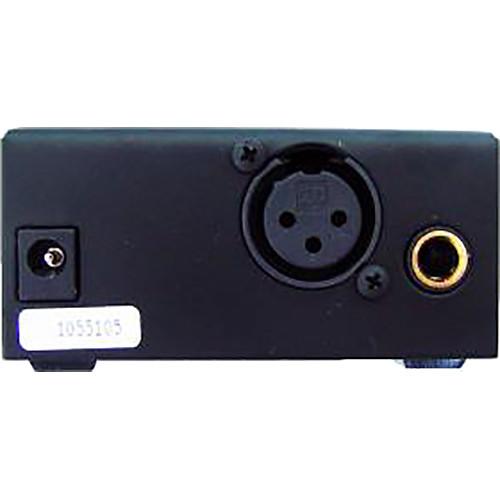

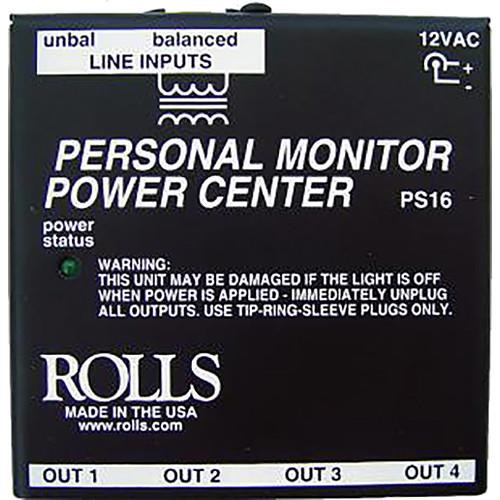

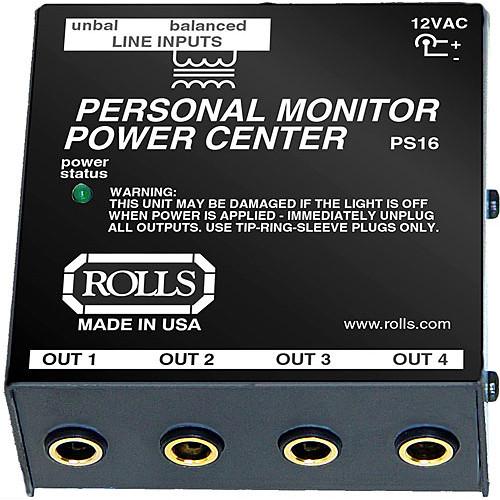

Product description The Rolls PS16 Personal Monitor Power Center supplies the DC power and distributes the Monitor signal to up to ten PM50s, PM50sOB, or PM350 units. This dramatically increases efficiency and eliminates the need for multiple wall-warts and adapter cables. Both the power and monitor signals are carried from each PS16 output to the Monitor input of the PM50s, sOB, and 350 using an ordinary 1/4" stereo TRS cable . By using stereo "Y" adapters, up to ten of the Personal Monitor Amplifiers may be daisy-chained. Note: TRS plugs are required for the outputs of this unit! - Line Inputs:
- Unbalanced: 1/4" TS jack, connects to a mixer's unbalanced Monitor or Auxiliary Send jack.

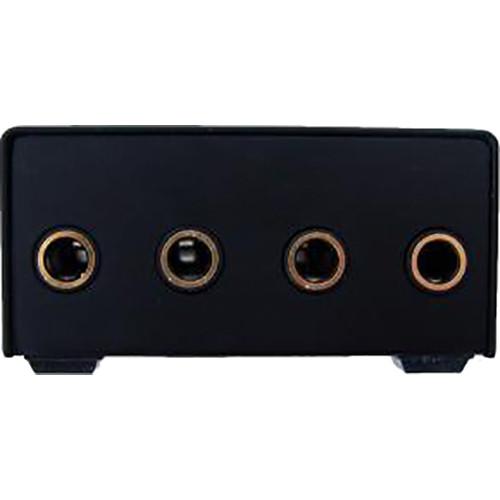

Balanced: Transformer isolated female XLR jack. Connects to a mixer's balanced Monitor or Auxiliary Send. - Outputs 1-4:
- 1/4" TRS jacks. Tip of the connector contains the audio signal, Ring has the 12 volts DC required to operate the Personal Monitor devices, and the Sleeve connects to ground.
UPC: 675889000160 In the Box Rolls PS16 Personal Monitor Power Center 12V Power Adapter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls PS16 Personal Monitor Power Center in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls PS16 Specs | Input Power | 12 VAC, 700 mA | | Output Power | 12 VDC on Ring terminal of output TRS jack | | Dimensions | 3.125 x 3.125 x 1.25" (80 x 80 x 32mm) | | Weight | 1 lb (450 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 6.929 x 4.646 x 2.677" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
