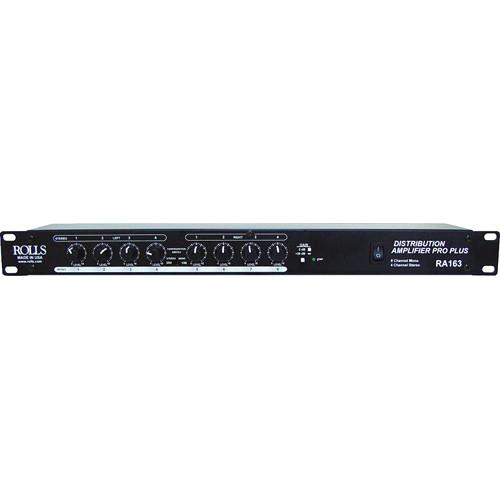

User Manual for Rolls RA163 Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Rolls RA163 Distribution Amplifier
- Product category: Distribution Amplifiers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Distribution Amplifiers
|
User manual for the Rolls RA163 Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The Rolls RA163 Distribution Amplifier features 2 balanced inputs and 8 balanced outputs over XLR connectors. The RA163 will split a stereo input signal into 4 stereo outputs, or a mono input signal into 8 mono outputs. The unit can be used for high-end audio applications such as fixed-installations, sound reinforcement and more. Each output features individual level control dials and the chassis easily occupies a single space of a 19" rack enclosure. - Mono or Stereo Operation - mono input to eight outputs, or stereo inputs to four stereo outputs
- All XLR jack inputs and outputs
UPC: 675889016307 In the Box Rolls RA163 Distribution Amplifier 1 Year Warranty Quick-Start Guide PDF 280.6kbrurxdayd Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls RA163 Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls RA163 Specs | Connectors | Inputs: XLR Female x2
Outputs: XLR Male x8 | | Input Impedance | 100k Ohm Balanced | | Output Impedance | 50 Ohm Balanced | | Maximum Input Level | +24 dBV | | Maximum Output Level | +24dB | | Max Input/Output Gain | 20dB | | Signal-to-Noise Ratio | >90dB | | Frequency Response | 10Hz - 40kHz, +/- 1dB | | THD | < .008% | | Power | 120VAC 50-60Hz, 15VA | | Dimensions | 19 x 1.75 x 6.5" (48 x 4.5 x 17cm) | | Weight | 7lb (3kg) | | | | Package Weight | 5.325 lb | | Box Dimensions (LxWxH) | 21.65 x 8.15 x 3.8" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
