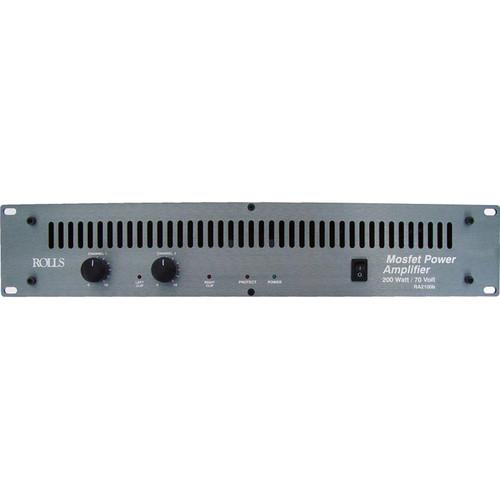

User Manual for Rolls RA2100b Stereo Power Amplifier - 70W per Channel into 8 Ohms with 25 70V Audio Distribution Click to enlarge the picture
Contents of the user manual for the Rolls RA2100b Stereo Power Amplifier -
- Product category: 70-Volt Amplifiers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls 70-Volt Amplifiers
|
User manual for the Rolls RA2100b Stereo Power Amplifier - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The RA2100b is a stereo power amplifier, utilizing MOSFET drivers in a voltage and current gain circuit. It is intended for professional audio applications such as recording studios and small live venues. The RA2100b is designed to drive 4 or 8 ohm speakers, but will also distribute audio to 25V speakers (individual channels) or 70V speakers (in bridged mode.) It features a bridging switch, one-second power-up delay and LED power-output meters. The unit includes a special high performance transformer, and a fused power line. The MOSFET output stage is fault protected which allows the amplifier to forgive momentary output shorts and has over-temperature protection. The amplifier is convection cooled, hence no fan noise. - Each channel offers both 4 and 8 ohm, or 25V (both channels) and 70V (bridged) operation
- MOFSET drivers in a voltage and current gain circuit
- Four LED power-output meters per channel
UPC: 675889210019 In the Box Rolls RA2100b Stereo Power Amplifier - 70W per Channel into 8 Ohms with 25/70V Audio Distribution External Power Adapter One Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls RA2100b Stereo Power Amplifier - 70W per Channel into 8 Ohms with 25 70V Audio Distribution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls RA2100B Specs | Power Rating | Stereo @ 4 ohms: 100 watts RMS per channel
Stereo @ 8 ohms: 70 watts RMS per channel
Bridged @ 8 ohms: 200 watts
Bridged @ 70V: 200 watts | | Damping Factor | >150 | | Input Sensitivity | <1 VRMS for full output | | Input Impedance | 10k ohms balanced | | Gain | Not specified by manufacturer | | Frequency Response | 50Hz to 25kHz +/-1dB | | Signal-to-Noise Ratio | >106dBu | | Total Harmonic Distortion (THD) | <0.08%, 1kH @ 1 watt | | Input Connections | 2 x 1/4" TRS phono, 2 x RCA coaxial | | Output Connectors | 2 x Pair 5-way binding posts, 2 x 1/4" TS phono | | Controls Front Panel | 2 x Rotary level control
Power switch | | Controls (Rear) | 1 x Stereo/Mono Bridge switch | | Indicators | 1 x 4 LED level metering per channel
1 x Protect, 1 x Power LED | | Cooling | Convection | | Power Consumption | Not specified by manufacturer | | Dimensions | 19" x 7 1/2" x 3 1/2" | | Weight | 12 lbs | | Specialties | One second turn-on delay | | | | Package Weight | 11.65 lb | | Box Dimensions (LxWxH) | 22.126 x 9.055 x 5.669" |
