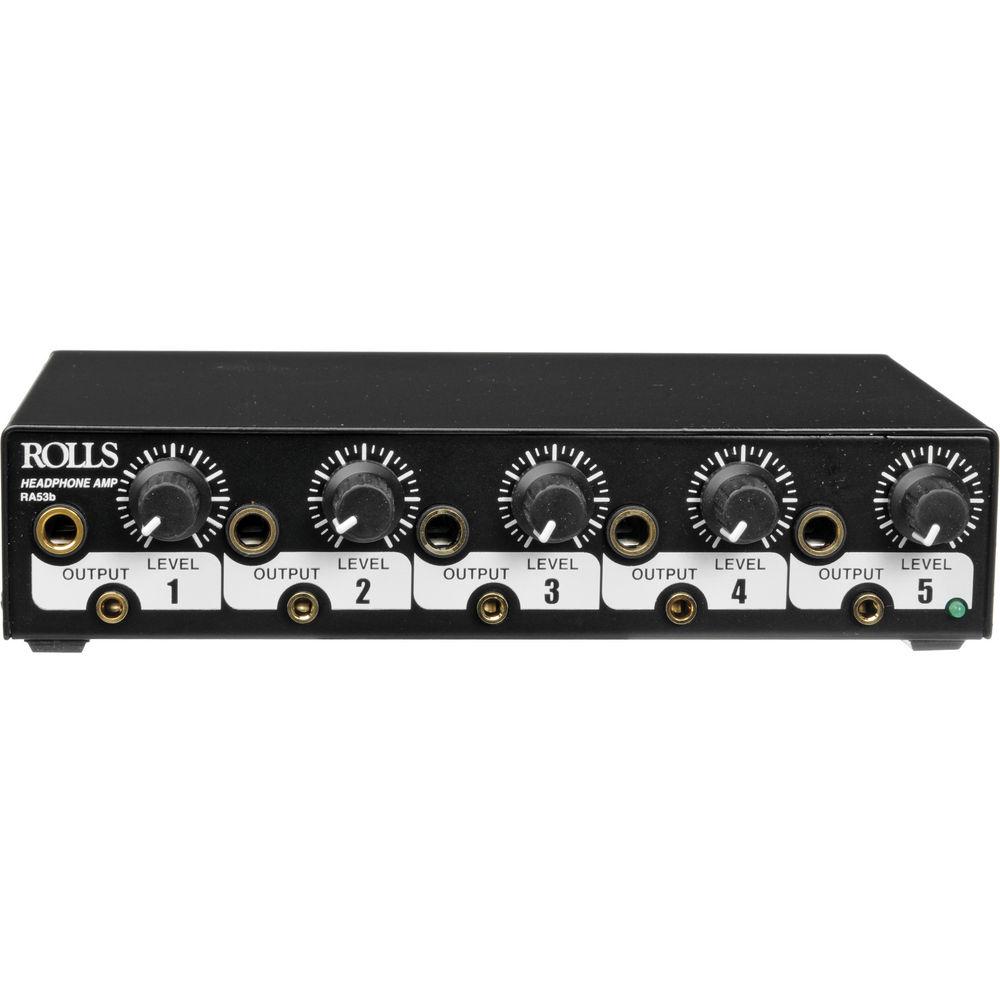

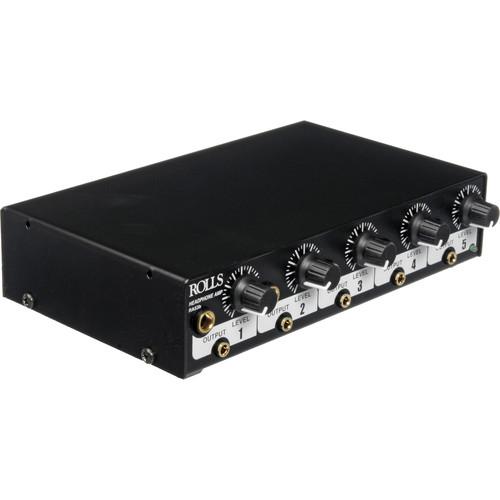

Product description The Rolls RA53B is a 5-channel, 1/2 space, rackmountable stereo headphone amplifier featuring 1/4" TRS and 1/8" stereo mini simultaneous outputs for each channel. Two units may be linked for 10-channel, 6-insert operation, and a total of 3 channel inserts enable direct access to channels 1,2 and 3, potentially feeding 3 independent stereo mixes to those channels. The RA53B is inexpensive, ruggedly built, and equally viable as a multi-client stage or studio headphone monitoring solution. - 5-channel, 1/2-space rackmount headphone amplifier
- 1/4" and 1/8" stereo headphone outputs for each channel can be used simultaneously for total of 10 outputs
- 3 Channel Insert points allow direct access to channels 1, 2, and 3 for independent stereo mix feeds to those channels
- Join I/O allows linking of two units for 10-channel operation with six inserts from master stereo signal
- Versatile stereo input connector complement includes XLR, 1/4" Mono and Stereo, and RCA
UPC: 675889000535 In the Box Rolls RA53B - 5-Channel 1/2 Space Rackmount Stereo Headphone Amplifier 12 VDC Power Supply Owner's Manual 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls RA53B - 5-Channel 1 2 Space Rackmount Stereo Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

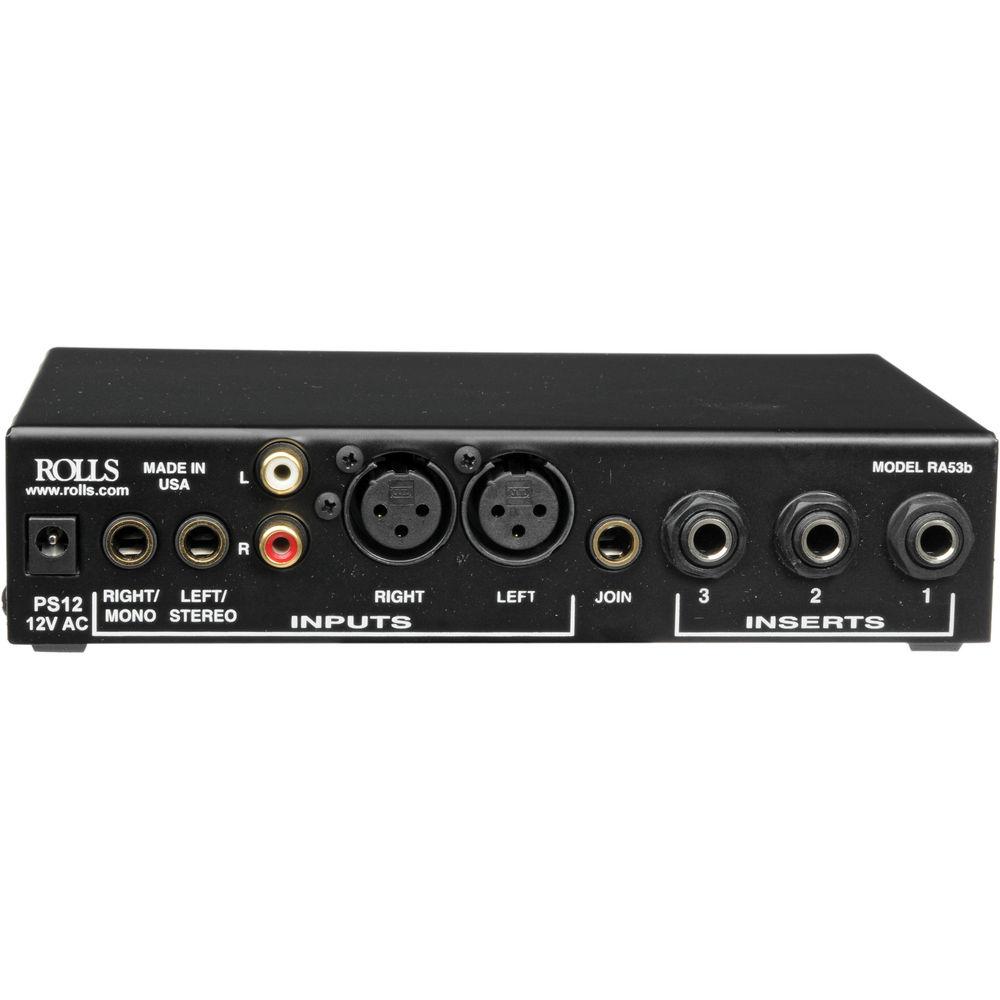

Technical parametersRolls RA53B Specs Number of Channels | 5 | Input Connections | 2 x XLR Female 2 x L, R RCA Phono 1 x 1/4" TRS Left/Stereo In 1 x 1/4" TRS Right/Mono In 3 x 1/4" TRS Inserts 1 x 12 VDC In | Output Connectors | 5 x 1/4" Stereo Phone 5 x 1/8" Stereo Mini 1 x 1/4" TRS Phone Join Output | Maximum Output Level | Not Specified by Manufacturer | Function Controls | 5 x Front Panel Level Controls | Frequency Response | Not Specified by Manufacturer | THD + N | <.008% | Noise | <.008% | Display | No | Dimensions | 8.4 x 1.7 x 5" (213 x 43 x 130mm) | Weight | 2.5 lb (1.14 kg) | Specialties | Two Headphone Outs per Channel Join Connector Links 2 Units | | Package Weight | 2.995 lb | Box Dimensions (LxWxH) | 9.95 x 7.65 x 4.35" |
