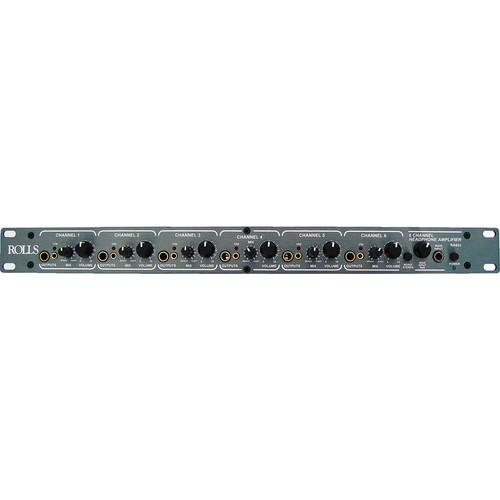

User Manual for Rolls RA62C 6-Channel Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Rolls RA62C 6-Channel Headphone Amplifier
- Product category: Headphone Amplifiers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Headphone Amplifiers
|
User manual for the Rolls RA62C 6-Channel Headphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The RA62C is a 6-channel headphone amplifier intended for sound reinforcement, studio, choir, and other applications where high channel to size ratio is desirable. In addition to distributing six headphone outputs from a single monitor mix, up to six individual monitor mixes may be listened to via the rear panel stereo insert jacks. A stereo/mono switch is provided which, along with a pan control, allows the RA62C to mix two mono signals by varying their balance in the headphone outputs. The unit has six stereo headphone outputs and one 1/4" TRS stereo input located on the front panel. Right and left 1/4" TS input jacks, and six 1/4" TRS insert jacks are located on the rear panel along with two auxiliary inputs on 1/4" TS input jacks. Each channel has a volume control, and panning and balance is controlled via the pan control located on the front panel. - Six stereo headphone amplifiers, may be used as 6-channel distribution amplifier
- 6 separate 1/4" and 1/8" stereo outputs
- Front and rear input jacks
- Inserts on all channels allow for additional mixes to be monitored on those channels
- Stereo/Mono switch and Pan control allows mixing two mono channels
UPC: 675889000627 In the Box Rolls RA62C 6-Channel Headphone Amplifier Owner's Manual 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls RA62C 6-Channel Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls RA62C Specs | Number of Channels | 6 | | Input Connections | 2 x 1/4" TS phono Left/Right Input
2 x 1/4" TS phono Auxiliary Input
1 x 1/4" TRS Stereo Mix Input (front panel) | | Output Connectors | 6 x 1/4" TRS phono Headphone Outputs
6 x 1/8" Stereo Mini | | Maximum Output | 600 mW per channel | | Function Controls | 6 x Rotary individual volume
1 x Rotary Pan
1 x Mono/Stereo switch
1 x Power switch | | Frequency Response | DC to 30 kHz | | Distortion (THD) | <0.008% | | Noise | >90dB | | Display | 1 x Power LED | | Dimensions | 19" x 6.5 x 1.75" (480 x 45 x 170mm) | | Weight | 7 lbs (3 kg) | | Specialties | Insert jacks on all six channels allows for up to six individual mixes to be monitored | | | | Package Weight | 5.23 lb | | Box Dimensions (LxWxH) | 22.0 x 8.0 x 4.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
