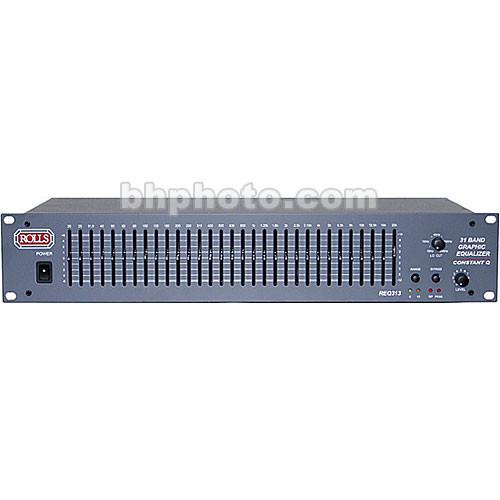

User Manual for Rolls REQ313 - Single Channel 31-Band Constant Q Equalizer with XLR and 1 4" I O's and Low Cut Filter Click to enlarge the picture
Contents of the user manual for the Rolls REQ313 - Single Channel 31-Band
- Product category: Equalizers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Equalizers
|
User manual for the Rolls REQ313 - Single Channel 31-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The REQ313 from Rolls is a single channel, 31-band graphic equalizer designed for room equalization or audio material sound shaping. Recording and broadcasting studios, sound contractors and musicians will appreciate the low noise, straightforward design and versatile signal control of the unit. The approximate frequency response of the equalizer can be seen graphically by the positions of the frequency controls. The filters in the unit are constant bandwidth with the bandwidth of each individual filter being narrow enough to prevent unwarranted interaction between filters, yet wide enough to produce exactly the necessary correction curve demanded by the acoustic surroundings. - Single channel, 31-band graphic EQ
- Low cut 12dB per octave high-pass filter
- XLR and 1/4" balanced inputs and outputs
- Passive bypass for making accurate comparison of source and processed audio
UPC: 675889031300 In the Box Rolls REQ313 - Single Channel 31-Band Constant Q Equalizer with XLR and 1/4" I/O's and Low Cut Filter One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls REQ313 - Single Channel 31-Band Constant Q Equalizer with XLR and 1 4" I O's and Low Cut Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls REQ313 Specs | Filter Type | Graphic, constant Q | | Number of Channels | Single | | Inputs | 1 x XLR
1 x 1/4" TRS phone | | Outputs | 1 x XLR
1 x 1/4" TRS phone | | Maximum Input Level | +22dB, balanced
+15dB, unbalanced | | Frequency Bands | 31 | | Bandwidth | 1/3 octave | | Range (Boost/Cut) | +/-6dB or +/-12dB, switchable | | Maximum Output Level | +22dB, balanced
+15dB, unbalanced | | Frequency Response | 20Hz to 20kHz, +0.5dB | | Dynamic Range | Not specified by manufacturer | | Noise | SNR: 110dB below maximum level (A-weighted) | | Dimensions (WxDxH) | 19" x 8 1/2" x 3 1/2" | | Specialties | 10Hz to 250Hz, 12dB per octave low cut filter | | | | Box Dimensions (LxWxH) | 19.0 x 8.5 x 3.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
