User Manual for Rolls RM424 Four Zone Mixer Click to enlarge the picture
Contents of the user manual for the Rolls RM424 Four Zone Mixer
- Product category: Install Sound Mixers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Install Sound Mixers
|
User manual for the Rolls RM424 Four Zone Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|

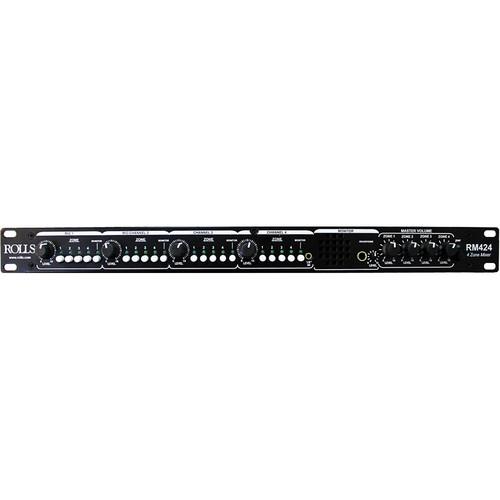

Product description The RM424 Four Zone Mixer from Rolls is ideal for any installation that requires as many as 3 sound sources and a paging mic. It combines a paging microphone input, a combo mic/line input and two line-level source inputs for flexible routing options.
Each input of the RM424 can be switched to any combination of four zone outputs. The outputs are all on balanced XLR connectors. Remote Volume Control inputs provide each zone with the means for external volume control. Additionally, the microphone inputs feature selectable ducking for effective paging. The front-panel speaker and headphone output make pre-assignment monitoring easy, each channel includes a switch to monitor before assigning an output. The RM424's front panel is simple to use, while its back panel provides enough functionality to shine in any four zone environment. UPC: 675889042405 In the Box Rolls RM424 Four Zone Mixer PS27s 15 VDC 100-240 VAC Wall Power Adapter Limited 1-Year Warranty Quick-Start Guide PDF 311.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls RM424 Four Zone Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls RM424 Specs | | | Input Connections | 1 x XLR - Mic 1
1 x XLR - Mic 2
2 x RCA phono - Channel 2 (1 x L/R)
4 x RCA phono - Source Inputs (2 x L/R)
1 x 1/8" TRS stereo - Channel 4 | | Input Impedance | XLR Mic: 600Ω balanced
XLR Line: 10kΩ balanced
RCA phono: 10kΩ unbalanced
1/8" TRS: 10kΩ unbalanced | | Maximum Input Level | Mic: -30 dB
Line: +22 dB | | Phantom Power | Yes, +48V | | | | Output Connections | 4 x XLR | | Output Impedance | 50Ω balanced | | Maximum Gain | Mic: 60 dB
Line: 30 dB | | Headphone Output | 1 x 1/4" | | Internal Speakers | Yes, 1 monitor speaker | | | | Remote Control Connector | 2 x euroblock for remote volume on each output zone | | Signal-to-Noise Ratio | > 75 dB | | THD | < 0.3% | | IMD | < 0.3% | | CMRR | 60 dB | | Frequency Response | 20 Hz to 20 kHz | | | | Power Adapter | 15VDC | | Dimensions (W x H x D) | 19 x 1.75 x 6.5" (48 x 4.5 x 17 cm) | | Weight | 7 lb (3 kg) | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 22.0 x 8.0 x 4.0" |
