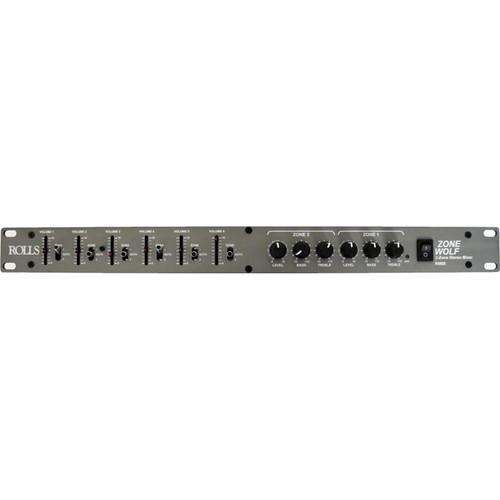

User Manual for Rolls RM68 Zone Wolf 2 Mixer Click to enlarge the picture
Contents of the user manual for the Rolls RM68 Zone Wolf 2 Mixer
- Product category: Install Sound Mixers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Install Sound Mixers
|
User manual for the Rolls RM68 Zone Wolf 2 Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The Rolls RM68 Zone Wolf 2 Mixer is a rack-mountable 3-microphone, 6-stereo source mixer with outputs for two zones. Mixed signals may be sent to either zone or both. The RM68 features individual volume controls for each input channel and for each zone. The zones also have individual bass and treble controls. The mic inputs supply phantom power so condenser microphones may be used. An automatic talk-over feature on mic 1 allows announcements to be heard clearly. With its intuitive interface, solid construction, and variety of input options the RM68 is ideal for use in restaurants, hotels, schools, factories, or houses of worship. - Send up to 3 mic signals mixed with 6 stereo source signals to 2 output zones
- Individual volume controls and zone selector switches for each channel
- Individual volume, bass, and treble controls for each zone
- Automatic talkover on mic one
- Rack-mountable, steel construction
- Phantom power to allow use of condenser microphones
UPC: 675889006803 In the Box Rolls RM68 Zone Wolf 2 Mixer 1 Year Limited Warranty User Manual PDF 703.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls RM68 Zone Wolf 2 Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls RM68 Zone Wolf Specs | Input Impedance | Mic: 600 ohms (XLR)
Source: 22 k ohms (RCA)
Bus: 22 k ohms (1/4") | | Output Impedance | 51 ohms | | Maximum Input Level | Mic: -14 dBV (Balanced)
Source: +24 dB | | Maximum Output Level | +17 dBV | | Input Connectors | 3 x 3-Pin XLR Female
6 x RCA Stereo Pairs
2 x 1/4" Bus | | Output Connectors | 2 x Pairs of 1/4" Right and Left Outputs, Unbalanced | | Controls Front Panel | 1 x On/Off Switch
2 x Zone Level Control Knobs
2 x Treble Knobs
2 x Bass Knobs
6 x Volume Level Sliders
6 x Zone Selector Switches | | Controls Rear Panel | Talkover On/Off Switch | | Phantom Power | +12VDC | | Maximum Input Gain | Mic: 60 dB
Source: 26 dB | | Tone Control | 12 dB Boost/Cut, 250Hz Center | | Signal to Noise Ratio | 106 dB | | Total Harmonic Distortion (THD) | Less than 0.003% | | Common Mode Rejection Ratio | 52 dB (Mic) | | Dimensions (WxHxD) | 19 x 1.75 x 6" (483 x 45 x 152mm) | | Weight | 5 lbs (2.3 kg) | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 22.0 x 8.0 x 4.0" |
