User Manual for Rolls RM82 8-Channel Mic Line Mixer Click to enlarge the picture
Contents of the user manual for the Rolls RM82 8-Channel Mic Line Mixer
- Product category: Analog Recording Mixers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Analog Recording Mixers
 |
User manual for the Rolls RM82 8-Channel Mic Line Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|

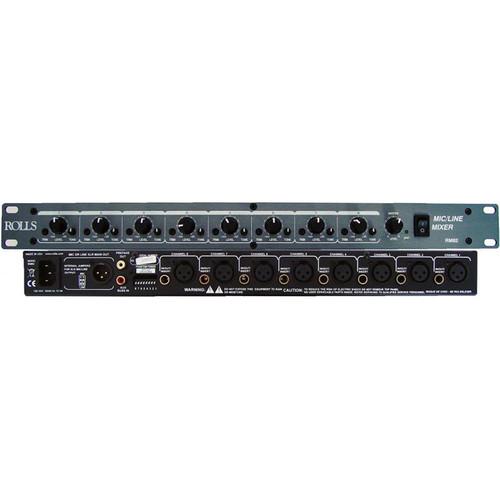

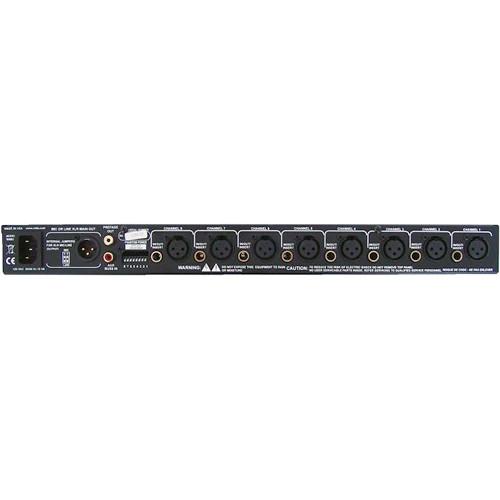

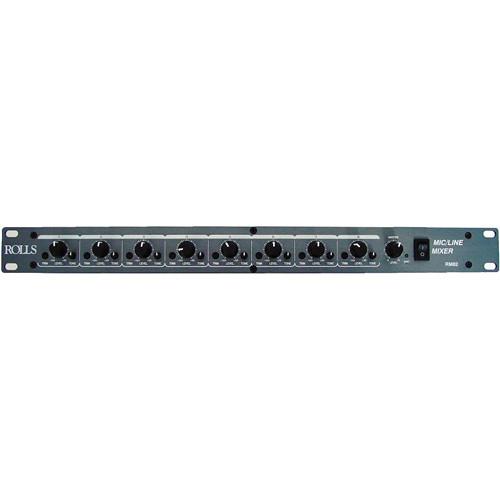

Product description When you need a space-saving solution for mixing multiple mic/line signals in conference rooms, houses of worship, or small-scale concert venues, consider the 1 RU rack-mountable Rolls RM82 eight-channel mixer. It features eight balanced 3-pin XLR microphone inputs with individually selectable 48 VDC phantom power to accommodate dynamic or condenser microphones. Plus, its eight unbalanced 1/4" TS inputs offer easy connectivity for line-level inputs or may be configured to function as inserts (for external processing) or direct outputs (for routing to a multitrack recorder). A mono RCA auxilliary input accepts an additional line input.Adjustable trim, level knobs, and treble/bass cut circuits on each channel allow simple and efficient mixing control from the front panel. The summed mono output is fed through a master level control to a rear-panel XLR male connector. Plug the RCA output into an audio recorder to preserve a dedicated mix signal that is independent of the master level. - Eight balanced microphone inputs via 3-pin XLR female sockets
- Eight unbalanced line inputs via 1/4" TS jacks
- Each line input can be internally jumpered to function as a channel insert or direct output
- Per-channel tone control cuts up to 12 dB of treble (above 6 kHz) or bass (below 200 Hz)
- Adjustable trim and level on each channel
- Line-level XLR main output can be switched internally to output mic-level signal
- Ninth unbalanced input via mono RCA aux input jack
- RCA pre-fader output is independent of the master level control
- Connect the RCA pre-fader output to the RCA aux input of a second RM82 (available separately) to enable master level control of both devices from the first RM82
- Dedicated power switch and LED power indicator
- Rack-mountable enclosure occupies just 1 RU of rack space
UPC: 675889008203 In the Box Rolls RM82 8-Channel Mic/Line Mixer Limited 1-Year Warranty User Manual PDF 173.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls RM82 8-Channel Mic Line Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls RM82 Specs | Total # Of Inputs | 8 | | Mic/Line Inputs | 8 x 3-Pin XLR Female (Balanced)
8 x 1/4" TS (Unbalanced, Internally Switchable per Channel to Function as Insert or Direct Output) | | AUX Sends | None | | AUX Returns | None | | ALT I/O | 1 x RCA Coaxial Mono Aux Input
1 x RCA Coaxial Mono Pre-Fader Output | | Monitor Outputs | 1 x 3-Pin XLR Male (Internally Switchable from Line to Mic Level) | | EQ Section | Per-Channel Tone Control: Cut up to 12 dB of Treble above 6 kHz or Bass below 200 Hz | | Solo/Mute | No | | Gain Range | Mic: Up to 55 dB
Line: Up to 26 dB | | Channel Level Control | Per-Channel Level Knob | | Trim/Gain Control | Per-Channel Trim Knob
Master Level Knob | | Phantom Power | +48 VDC, Switchable per Channel | | Metering | None | | Input Impedance | XLR: 10 kOhms
1/4": 20 kOhms
RCA: 10 kOhms | | Output Impedance | 51 Ohms | | Maximum Input Level | Mic: 0 dBV
Line: +6 dBV | | Maximum Output Level | +22 dBV | | Frequency Response | Not Specified by Manufacturer | | Phase Shift | <10° (20 Hz to 20 kHz) | | Signal-to-Noise Ratio | 106 dB | | Total Harmonic Distortion (THD) | <0.009% | | CMRR | >80 dB (Mic) | | Power Supply | 120 VAC, 50/60 Hz, 15 VA | | Dimensions (W x H x D) | 19.0 x 1.8 x 6.0" / 48 x 4.5 x 15 cm | | Weight | 7 lb / 3.2 kg | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 21.654 x 8.189 x 3.858" |
