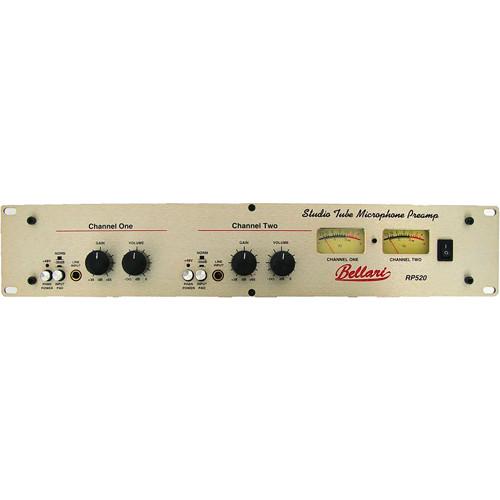

User Manual for Rolls RP520 - Studio Tube Microphone Preamp Click to enlarge the picture
Contents of the user manual for the Rolls RP520 - Studio Tube Microphone
- Product category: Microphone Preamps Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Microphone Preamps
|
User manual for the Rolls RP520 - Studio Tube Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The RP520 from Rolls is a Bellari branded dual channel tube based microphone preamp that provides clear sonic quality and performance for the working musician, studio operator or anyone who needs a preamp with the warm, smooth, analog sound.
Each channel utilizes one premium 7025 tube running at a 250V plate voltage to give smooth controllable gain through transformer balanced inputs. The unit has both XLR and 1/4" inputs and outputs with a 30dB pad and a phase reversal switches to adapt to any performing or studio situation. - Dual channel, tube based microphone/instrument preamp
- Front panel 1/4" input jack for plugging a guitar, electric bass, or other instrument into the preamp
- 70dB gain on microphone inputs
- Tubes run on 250V plate voltage
- Individually switchable +48V phantom power
- -30dB pad and phase reverse switches per channel
UPC: 675889052008 In the Box Rolls RP520 - Studio Tube Microphone Preamp AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls RP520 - Studio Tube Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls RP520 Specs | Number of Channels | 2 | | Inputs | 2 x XLR
2 x 1/4" TS phone Line /Instrument | | Input Impedance | Microphone: 600Ω
Line: 1MΩ | | Output | 2 x XLR
4 x 1/4" TS phone | | Phantom Power | +48V, individually switchable | | Gain Range | Microphone: 70dB
Inst/Line: 48dB | | Multi Function | No | | Frequency Response | Microphone/Line: 20Hz to 40kHz, +/-3.0dB
Instrument: 5Hz to 40kHz | | Noise | SNR: >107dB | | THD | 0.1% typical | | Indicators | 2 x Backlit analog meters
2 x LED phantom power | | Power Requirements | 120VAC, 15VA | | Dimensions (WxDxH) | 19 x 6 x 3.5" (483 x 162 x 89mm) | | Weight | 7.5 lb (3.5kg) | | | | Package Weight | 8.1 lb | | Box Dimensions (LxWxH) | 22.0 x 9.0 x 5.7" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
