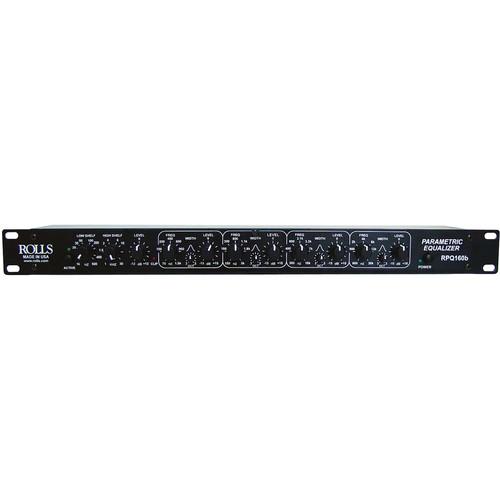

User Manual for Rolls RPQ160b - Parametric Equalizer Click to enlarge the picture
Contents of the user manual for the Rolls RPQ160b - Parametric Equalizer
- Product category: Equalizers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Equalizers
|
User manual for the Rolls RPQ160b - Parametric Equalizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The RPQ160b from Rolls is a single-channel, 4-band parametric equalizer with high- and low-pass filters. The 4 bands have a combined overlapping frequency range of 70 Hz to 20 kHz. The single rack space unit features 3 different input and output connectors to accommodate a wide variety of applications. T filters are used for the equalization circuits to avoid the complexity and distortion of state-variable filters.The EQs precise equalization makes it suitable for many applications, including school or church gymnasiums, home or professional recording studios, live sound or the EQing of musical instruments. When coupled with a spectrum analyzer, the RPQ160b can match exactly the properties of typical acoustic resonances and reflections, and make immediate improvements to any installed system's amplitude and phase response. - 4 bands of parametric equalization
- Great for room equalization, sound reinforcement, or home and studio recording applications
- Adjustable high- and low-shelf filters
- T Filers, which avoid the complexity and distortion of state-variable filters
- XLR, 1/4" & RCA inputs & outputs
UPC: 675889016000 In the Box Rolls RPQ160b - Parametric Equalizer External Power Supply One (1) Year Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls RPQ160b - Parametric Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls RPQ160b Specs | Filter Type | Parametric | | Number of Channels | Single | | Inputs | 1 x XLR
1 x 1/4" TRS phone
1 x RCA | | Outputs | 1 x XLR
1 x 1/4" TRS phone
1 x RCA | | Maximum Input Level | +24dB | | Frequency Bands | 70Hz to 1.5kHz
150Hz to 3kHz
300Hz to 10kHz
600Hz to 20kHz | | Bandwidth | 0.3 to 3 octaves per band | | Range (Boost/Cut) | -15dB to +15dB per band | | Maximum Output Level | +24dB | | Frequency Response | 16Hz to 30kHz, +/-3.0dB | | Dynamic Range | Not specified by manufacturer | | Noise | SNR: >90dB | | Power Requirements | 12VAC via supplied adapter | | Dimensions (WxDxH) | 19 x 4 x 1.75" (483 x 100 x 45mm) | | Weight | 5 lbs (2.3kg) | | Specialties | High-pass filter: 16Hz to 500Hz, 12dB/octave slope
Low-pass filter: 1kHz to 30kHz, 12dB/octave slope | | | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 21.6 x 8.0 x 3.8" |
