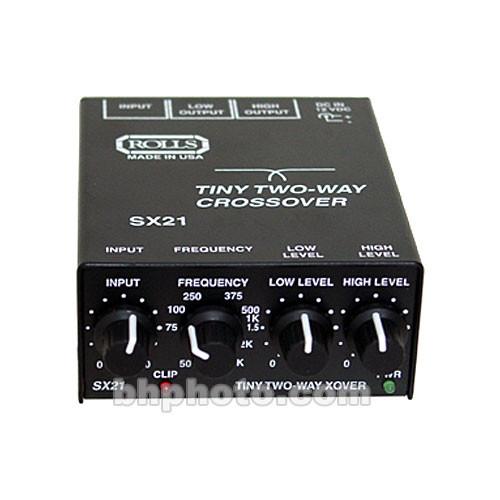

User Manual for Rolls SX21 - Tiny 2-Way Crossover Click to enlarge the picture
Contents of the user manual for the Rolls SX21 - Tiny 2-Way Crossover
- Product category: Crossovers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Crossovers
|
User manual for the Rolls SX21 - Tiny 2-Way Crossover contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The SX21 from Rolls is a 24dB/octave, two-way frequency divider intended for small sound reinforcement applications. The compact housing provides input, crossover frequency, low and high output level controls and corresponding inputs and outputs on unbalanced phone connectors. - Two-way crossover in highly compact form
- 24dB/octave filter rolloff
- 50Hz to 2.5kHz crossover range
- Includes external power supply for low noise operation
UPC: 675889000214 In the Box Rolls SX21 - Tiny 2-Way Crossover External Power Supply One (1) Year Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls SX21 - Tiny 2-Way Crossover in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls SX21 Specs | Filter Type | 24dB/octave rolloff | | Operating Modes | Two-way | | Crossover Frequencies | Variable 50Hz to 2.5kHz | | Gain Range | Not specified by manufacturer | | Front Panel Switches | No | | Inputs | 1 x 1/4" TS phone | | Outputs | 2 x 1/4" TS phone | | Maximum Input Level | Not specified by manufacturer | | Maximum Output Level | +10dBV | | Frequency Response | Not specified by manufacturer | | Dynamic Range | Not specified by manufacturer | | Noise | Not specified by manufacturer | | Dimensions (WxDxH) | 3 5/8" x 4 1/4" x 1 1/2" (92 x 108 x 38 mm) | | Weight | 1.0 lb (0.45 kg) | | Specialties | Compact and simple to operate | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.0 x 4.7 x 2.5" |
