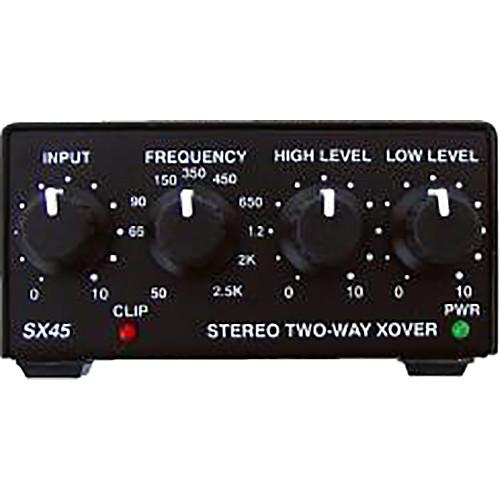

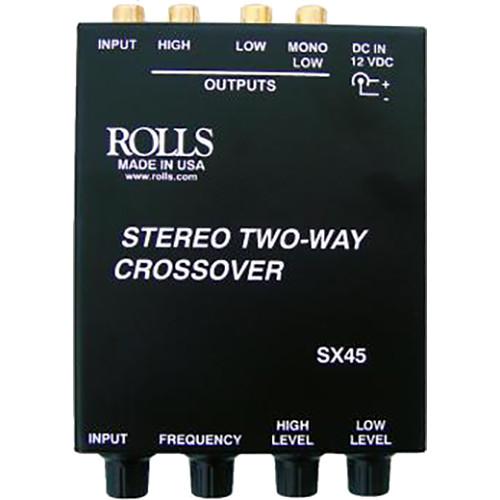

User Manual for Rolls SX45 - 2-Way Stereo Crossover with Mono Sub Output Click to enlarge the picture
Contents of the user manual for the Rolls SX45 - 2-Way Stereo Crossover
- Product category: Crossovers Rolls
- Brand: Rolls
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rolls Crossovers
 |
User manual for the Rolls SX45 - 2-Way Stereo Crossover contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rolls product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rolls user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rolls product will considerably shorten its lifespan!
|
Product description The SX45 from Rolls is a two-way frequency dividing device for small sound reinforcement applications. It features a 12dB per octave roll-off, a frequency dividing range of 50Hz to 2.5kHz and clip indication for proper level settings. The compact size of the SX45 allows for easy mounting in any universal rack tray or install-cabinet, while the external power supply provides clean DC power to the unit for quiet operation. Controls for the SX45 include input level, variable frequency adjustment and high and low output level controls. All connections are made via RCA phono jacks. The unit is Ideal for small installations such as nightclubs or restaurants, providing clean, high-impedance audio signals in a compact steel chassis. - Two-way crossover with mono sub output in highly compact form
- 12dB/octave filter rolloff
- 50Hz to 2.5kHz crossover range
- Includes external power supply for low noise operation
UPC: 675889004502 In the Box Rolls SX45 - 2-Way Stereo Crossover with Mono Sub Output External Power Supply One (1) Year Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Rolls SX45 - 2-Way Stereo Crossover with Mono Sub Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRolls SX45 Specs | Filter Type | 12dB/octave rolloff | | Operating Modes | Two-way with mono sub output | | Crossover Frequencies | Variable 50Hz to 2.5kHz | | Gain Range | Not specified by manufacturer | | Front Panel Switches | No | | Inputs | 2 x RCA phono | | Outputs | 4 x RCA phono | | Maximum Input Level | Not specified by manufacturer | | Maximum Output Level | +10dBV | | Frequency Response | Not specified by manufacturer | | Dynamic Range | Not specified by manufacturer | | Noise | Not specified by manufacturer | | Dimensions (WxDxH) | 3 5/8" x 4 1/4" x 1 1/2" (92 x 108 x 38 mm) | | Weight | 1.0 lb (0.45 kg) | | Specialties | Compact and simple to operate | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 6.9 x 4.8 x 2.5" |
