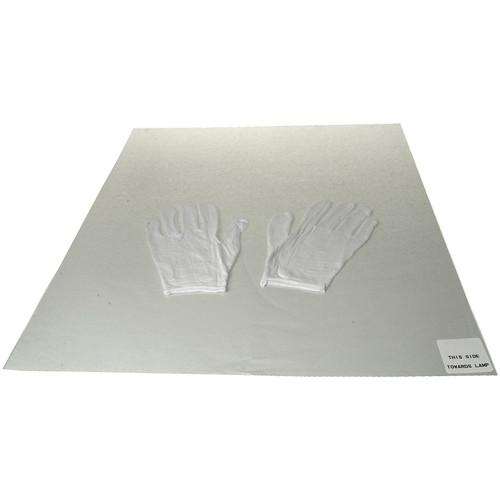

User Manual for Rosco 20x24" Thermashield Click to enlarge the picture
Contents of the user manual for the Rosco 20x24" Thermashield
- Product category: Color Effects Filters & Gels Rosco
- Brand: Rosco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rosco Color Effects Filters & Gels
|
User manual for the Rosco 20x24" Thermashield contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rosco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rosco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rosco product will considerably shorten its lifespan!
|
Product description Specially coated film reflects infrared energy to extend the life of color in super hot lighting fixtures.When heat is a problem in television, theatre, display or architectural lighting, Thermashield is the answer. Thermashield lessens the adverse effects of heat on performers and products used in commercials. Where MRs or other hot lamps are used, it helps protect plastic color filters as well as other heat sensitive objects.Thermashield is an optical grade polyester film, finished on one side with a proprietary vacuum-deposited multi-layer coating. Set in the beam of a lighting instrument, it will reflect back infra-red energy, effectively reducing the transmitted heat, while transmitting 80% of the visible light.It is important to allow air space between the Thermashield and the color filter. This will allow much of the otherwise damaging heat energy to dissipate. Its also important to affix Thermashield so that the coated side faces the lamp. Each sheet of Thermashield is clearly marked so that users can easily identify which side of the clear film should be facing the lamp.If the label becomes detached, or if the sheet is cut so that the label is no longer available, there is an alternative technique. When tested with an ohm meter, only the coated side (the side which must face the lamp) will be conductive.Thermashield permits the full range of Rosco color filters in fixtures which previously permitted only the use of glass or dichroics for color. The maximum wattage lamps suitable for Thermashield filters are 1000 watt 120 volt or 1250 watt 240 volt Tungsten Halogen lamps. Thermashield will boost the Kelvin temperature of a 3200° source about 300° Kelvin (a mired shift of approximately -10). - Proprietary multi-layer coating reflects most of the infrared energy, thereby reducing transmitted heat
- Allows the use of plastic color filters in fixtures equipped with MRs or other very hot lamps
- Protects performers and products from heat of stage or quartz television lamps
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rosco 20x24" Thermashield in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRosco 101019952024 Specs | | | Dimensions | W: 20 x H: 24" / W: 51 x H: 61 cm | | | | Package Weight | 0.82 lb | | Box Dimensions (LxWxH) | 24.0 x 21.0 x 0.01" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
