User Manual for Rosco 3 x 12" LitePad HO90 Daylight-Balanced LED Softlight Click to enlarge the picture
Contents of the user manual for the Rosco 3 x 12" LitePad HO90
- Product category: LED Lights Rosco
- Brand: Rosco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rosco LED Lights
 |
User manual for the Rosco 3 x 12" LitePad HO90 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rosco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rosco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rosco product will considerably shorten its lifespan!
|

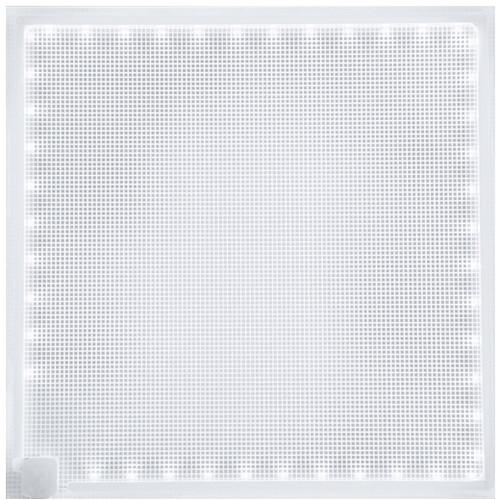

Product description Rosco's 12 x 12" LitePad HO90 Daylight-Balanced LED Softlight from Rosco is a versatile light system. The HO refers to high output, as this is noticeably brighter than the original LitePad, and 90 refers to the 90+ CRI rating. The HO90 features a color temperature of 5300K, and extremely soft glow without the multiple shadows common when using LED array lights. The unit stays cool to the touch, with only the edge becoming slightly warm.
The fixture itself is less than 0.4" thick, and it is built using an edge-lit piece of acrylic. The LEDs arranged around the edge illuminate channels that diffuse the light providing an extremely soft source that is easy on your talent's eyes and is suitable for key or fill based on the size of your LitePad. You can adjust the brightness using optional dimmers. The power connector is incorporated into the fixture itself and is not hard wired as with the original. - LitePad HO90
- The edge-lit design of the LitePad provides for an extremely soft glowing source, which was pioneered by Rosco for use in the film industry.
- Uses
- The 3 x 12" LitePad HO90 is suitable for fill lighting, and can be hidden inside a car to provide illumination where traditional lights can't fit.
- Rugged Housing
- The rigid plastic construction of the HO90 LitePad makes for a durable yet lightweight fixture.

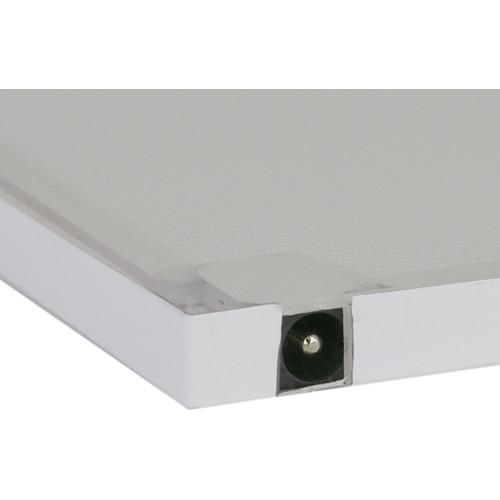

- Interior Connector
- LitePad's new interior connector eliminates the previous hardwire system, which had the potential to be pulled out during use causing damage to the fixture and requiring down time for repair. Based on user feedback, this feature was introduced to make the LitePad more rugged and easier to use.
- Low Heat
- Because LitePad is an LED light source, the amount of heat generated is very low and does not require forced air cooling.
- Minimal Power Consumption
- With each LED only consuming a quarter of a watt, LitePad is an extremely energy efficient light source. There is no longer the need for kilowatts of power or a generator to power a set full of lights. A few dozen LitePads can easily run off of available household power.
- Easy on the Eyes
- Unlike many LED sources, LitePad is a bounced LED light - not an array of LEDs pointing directly forward. Performers or technicians can look directly into LitePad without squinting, hurting their eyes or getting a headache.
- Dimmable
- LitePads are a fully dimmable LED product. The proprietary Single Fader Dimmer and 2 CH / DMX Dimmer can smoothly dim any standard size LitePad with no color temperature change. With LitePad's dimmers, you are able to set the exact light intensity you need.
In the Box Rosco 3 x 12" LitePad HO90 Daylight-Balanced LED Softlight Transformer for LitePads - 3 Amps (120VAC) 10' Right Angle Extension Cable for LitePad Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rosco 3 x 12" LitePad HO90 Daylight-Balanced LED Softlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRosco HO90 Specs | | | Color Temperature | 5300K | | Color Accuracy Standard | CRI 93 | | Cooling System | None | | Dimming | Optional | | Display | None | | Housing Material | Acrylic | | Fixture Dimensions | 3.0 x 12.0 x 0.4" / 7.6 x 30.5 x 0.9 cm | | Fixture Weight | 0.55 lb / 0.25 kg | | | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 0.8 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 9.75 W | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 12.5 x 12.5 x 2.9" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
