Product description - What does it take to destroy the LitePad Vector?
- Rosco LitePad Vector

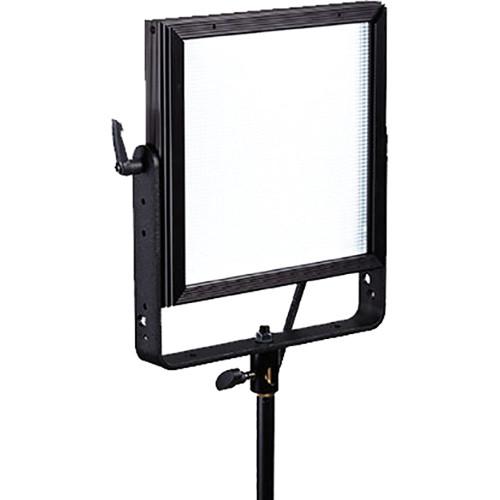

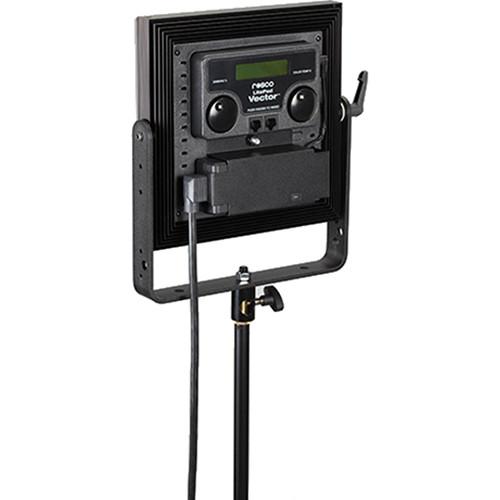

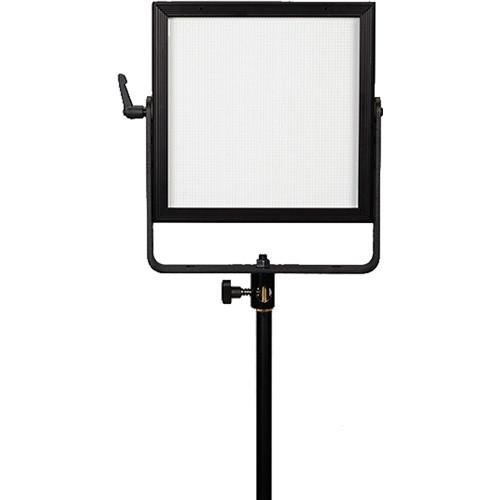

With its soft, even illumination, the 8 x 8" LitePad Vector CCT LED Light from Rosco will flatter your subjects for video and still photos. It offers a tunable white color balance of 3000-6000K along with a CRI from 93 at 3000K to 86 at 6000K. Also, it will dim from 0-100% and has DMX512 input and output with RJ45 connections for remotely controlling the fixture. On-board control dials are available for direct usage of the unit and it has an accessory/gel slot on the front.
The aluminum unit has an IP61 rating for dust protection and it can run off the universal 100-240 VAC power supply or an optional battery. Additionally, it comes with a yoke mount and a 5/8" stand receiver. - Photometrics
- 3000K: 1500 lux at 3' (1 m)
6000K: 1700 lux at 3' (1 m) In the Box Rosco 8 x 8" LitePad Vector CCT LED Light Yoke 5/8" Light Stand Receiver Power Supply Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rosco 8 x 8" LitePad Vector CCT LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRosco Vector CCT Specs | | | Color Temperature | 3000 to 6000K | | Color Accuracy Standard | CRI 86 at 6000K
CRI 93 at 3000K | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 8.2 x 8.2 x 2.8" / 210.0 x 210.0 x 72.0 mm
9.7 x 12.5 x 2.8" / 246.0 x 318.0 x 72.0 mm (Including Yoke) | | Fixture Weight | 4.3 lb / 1.9 kg
4.5 lb / 2 kg (Including Yoke, Receiver) | | | | Power Input Connector | Barrel | | DMX Connector | RJ45 | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 24 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 65 W | | | | Certifications | RoHS, UL, as per Manufacturer | | IP Rating | IP61 | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 14.2 x 13.2 x 3.2" |
